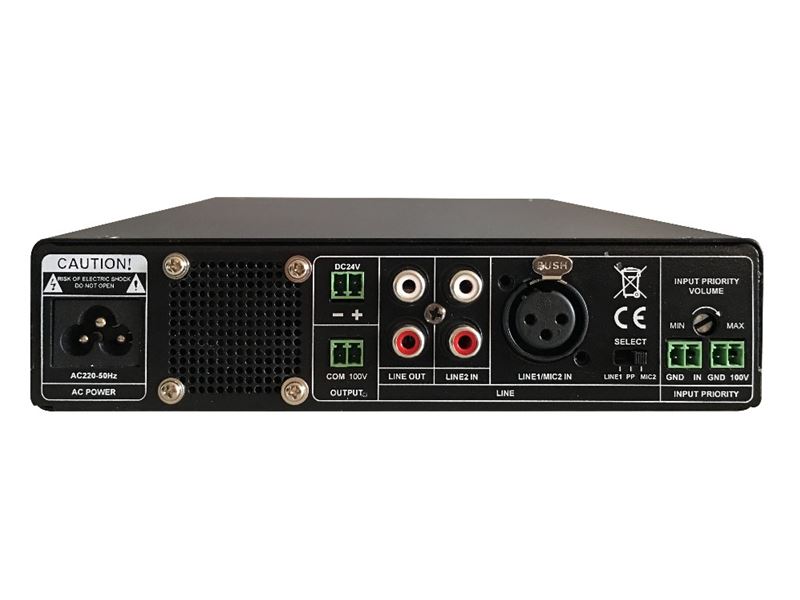

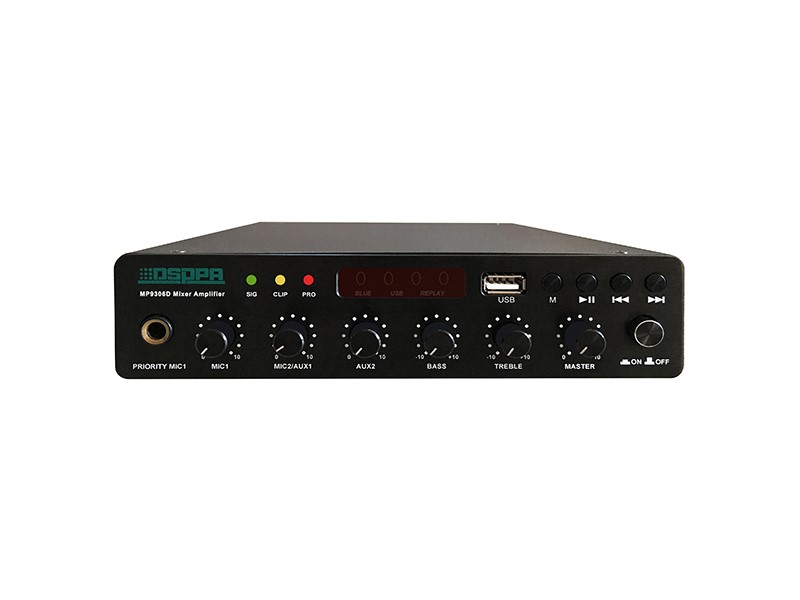

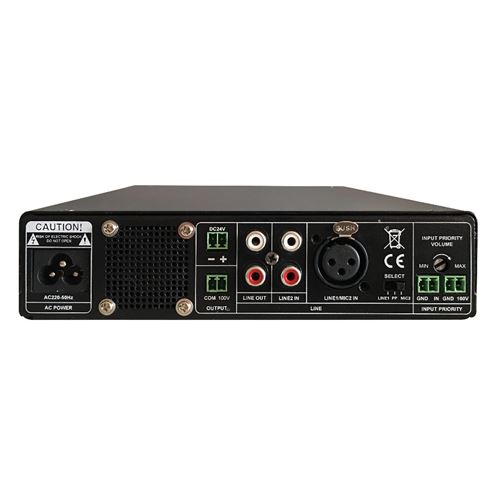

The DSPPA is Ultra Thin Digital Mixer..this Ultra thin Type Digital Mixer Have 2 Model 60Watts & 120Watts...The mixing amplifier is integrated with a USB player for MP3 playback. It is design to work with high impedance (100V) speaker system.
● Rated power 60W, 100V speaker output
● Digital amplifier module, high efficiency (85%)
● Built-in USB & Bluetooth module
● 2 AUX & 2 Mic inputs & 1 AUX output
● Each AUX & Mic input with individual volume control
● Mic 1 of 6.35mm in front panel, with priority & muting
● With priority input and 100V input
● 1 U compact design, space and cost saving
● DC 24V power input
| Model | MP9306U | MP9312U | |
| Rated Power | 60W | 120W | |
| Speaker Output | 100V | ||
| Sensibility | MIC | 0.06（±0.015）VRMS | |
| Line | 0.3（±20mV)VRMS | ||
| 100V-IN | 100 VRMS | ||
| SNR | MIC | ≥74db(Maximum) | |
| AUX、EMC | ≥80dB（Maximum） | ||
| Frequency Response | 80Hz-15kHz（±3dB） | ||
| Distortion | ≤0.5 % | ||
| Power Supply | AC220V, 50-60Hz | ||
| Tone | Bass | ±10dB（100Hz） | |
| Treble | ±10dB（10kHz） | ||
| Power Consumption | 800W | 150W | |
| Size（W×H×L） | 200×190×44mm | ||
| Net Weight | 1.5kg | ||
| Gross Weight | 2kg | ||
