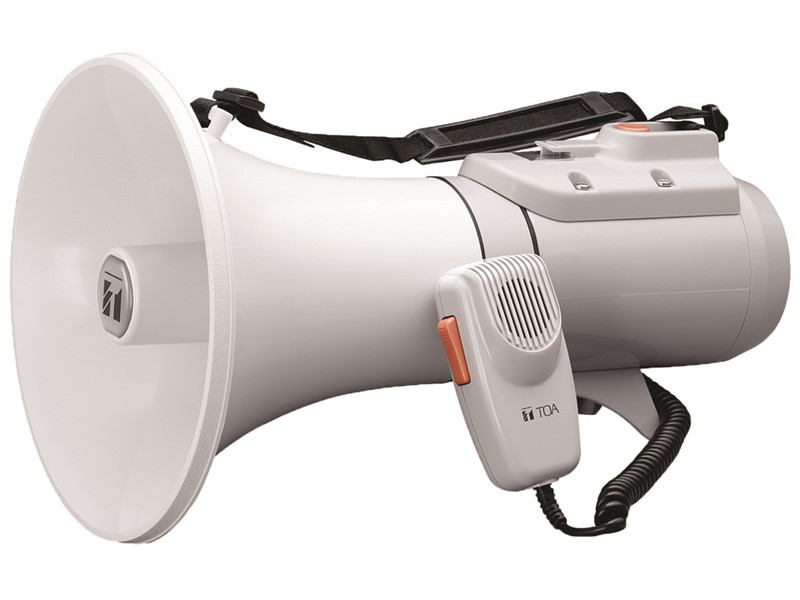

23W Max Shoulder Type Megaphone with Whistle

ER-2215W

TOA

Whatsapp for enquiry Email for enquiry






The ER-2215W is a shoulder megaphone rated at 15 W of output. The ER-2215W comes with a whistle and has a separate microphone. It can be mounted to the optional ST-16A speaker stand. The newly developed polyimide diaphragm is employed to ensure high sound quality.


Power Source R14P (C) × 6 (9 V DC)
Rated Output 15 W
Maximum Output 23 W
Battery Life Voice: Approx. 9 hours (JEITA)*, Whistle: Approx. 20 minutes (JEITA)*
Signal Sound Whistle (1.6 to 2.4 kHz)
Audible Range Voice: Approx. 400 m (JEITA)*
Whistle: Approx. 500 m (JEITA)*
Diaphragm Polyimide film (voice coil, bobbin)
Operating Temperature -10 ℃ to +40 ℃
Finish Horn: ABS resin, light gray
Microphone and other: ABS resin, gray
Strap: Nylon, black
Dimensions Φ210 × 336 mm
Weight Body: 1.2 kg (without microphone and batteries)
Microphone: 150 g
Option Speaker stand: ST-16A
