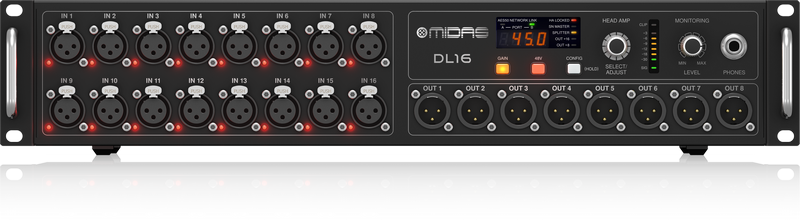

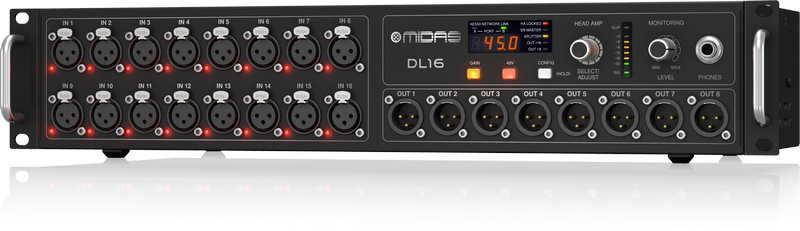

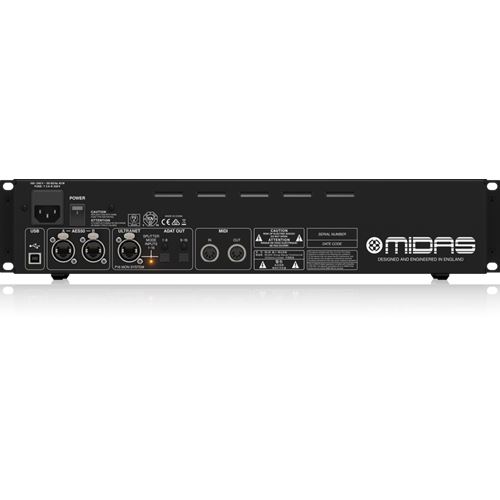

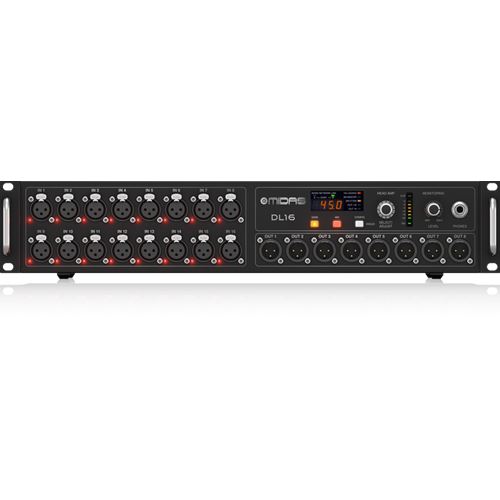

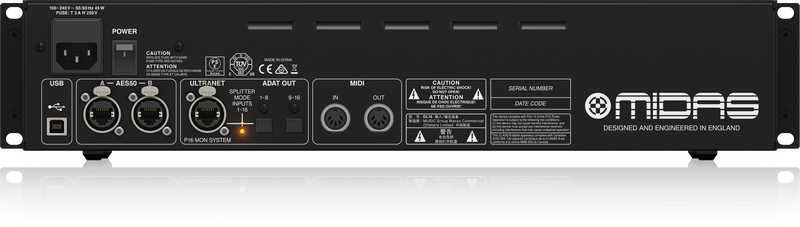

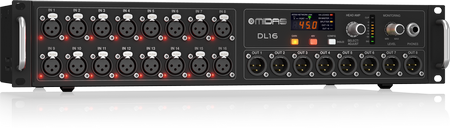

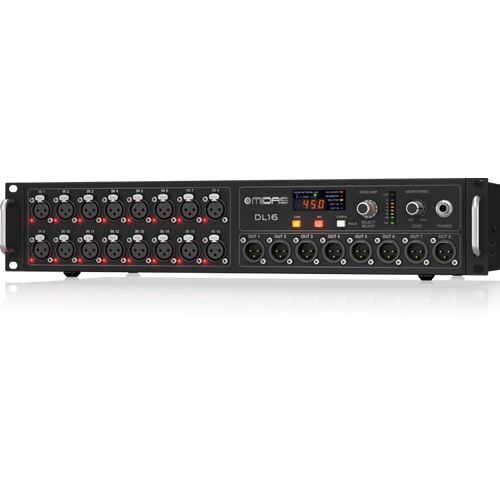

DL16
The DL16 Stage Box provides 16 of our award-winning microphone preamplifiers with switchable +48 V phantom power; 8 balanced analogue XLR returns at the stage end; an integrated ULTRANET output for connecting to Behringer P16-M personal monitor mixers; plus connectivity for your ADAT-compatible outboard equipment.
- 16 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
- 8 electronically balanced low impedance line level outputs
- ULTRANET personal monitoring system connectivity for in-ear applications
- Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
- Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes—no merger or router required
- Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
- Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
- All settings programmable from front panel controls or console
- Status indicator LEDs on front panel
- Headphones output assignable to any of the inputs or outputs for on-stage monitoring
- MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
- Features Neutrik etherCON* AES50 and ULTRANET network ports
- Rugged 2U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
- Designed and engineered in the U.K.
