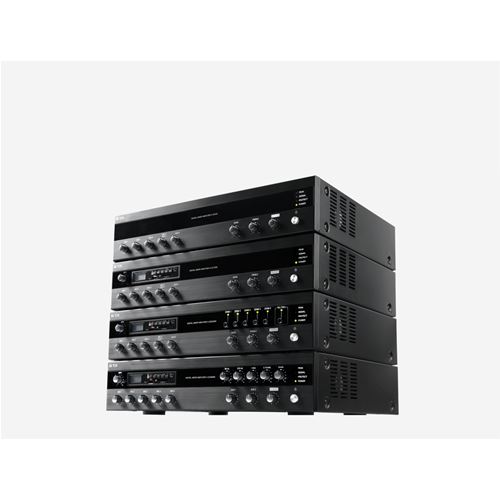

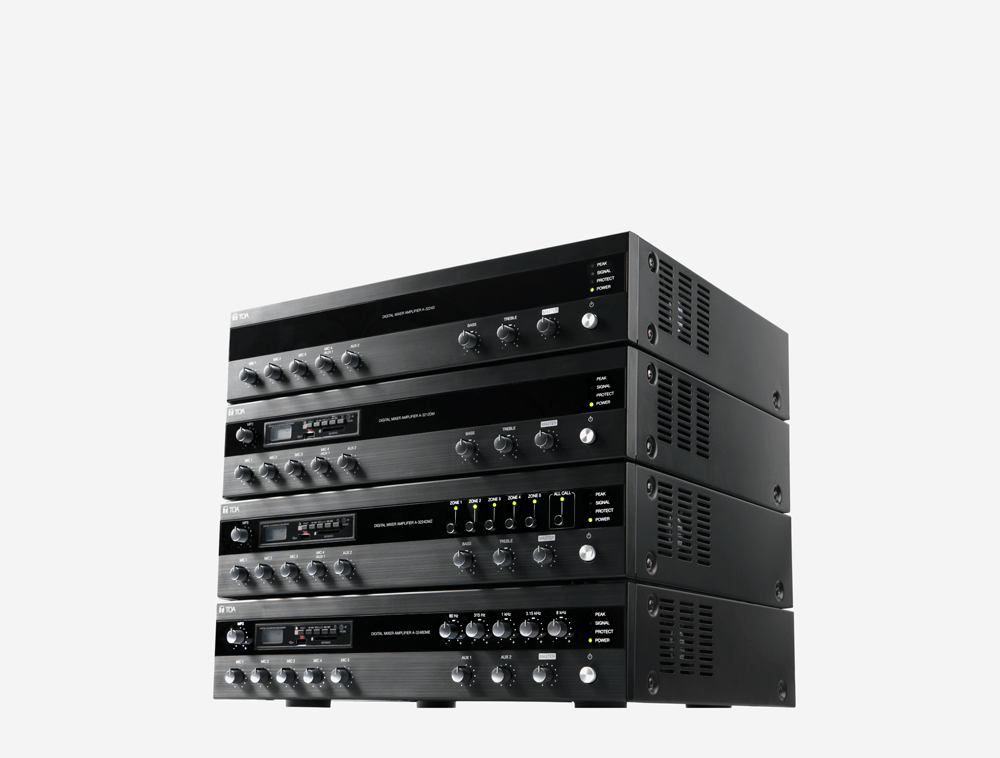

TOA A-3200 Series 240Watts Digital Mixer Amplifier

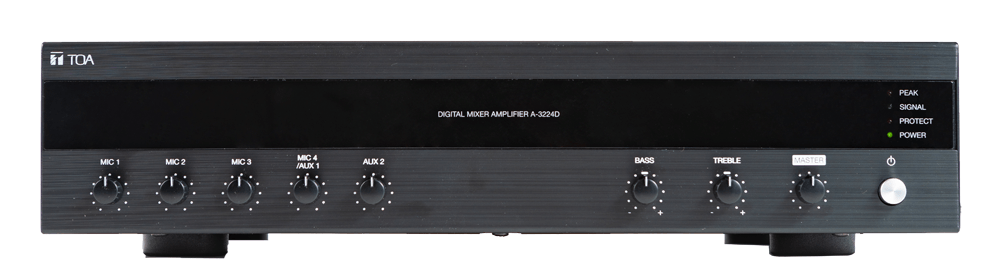

A-3224D

TOA

Whatsapp for enquiry Email for enquiry






A-3224D is a high performance yet cost-effective mixer power amplifier suited for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.


Power Source 100 - 240 V AC, 50/60Hz
Rated Output 240 W
Power Consumption 62 W (AC operation at 1/8 maximum output without clip)
Frequency Response 50 - 20,000 Hz

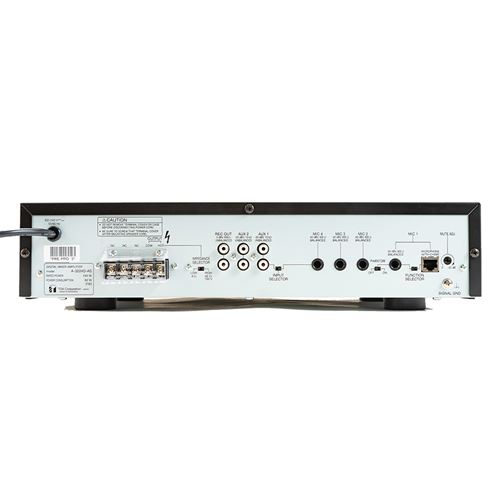

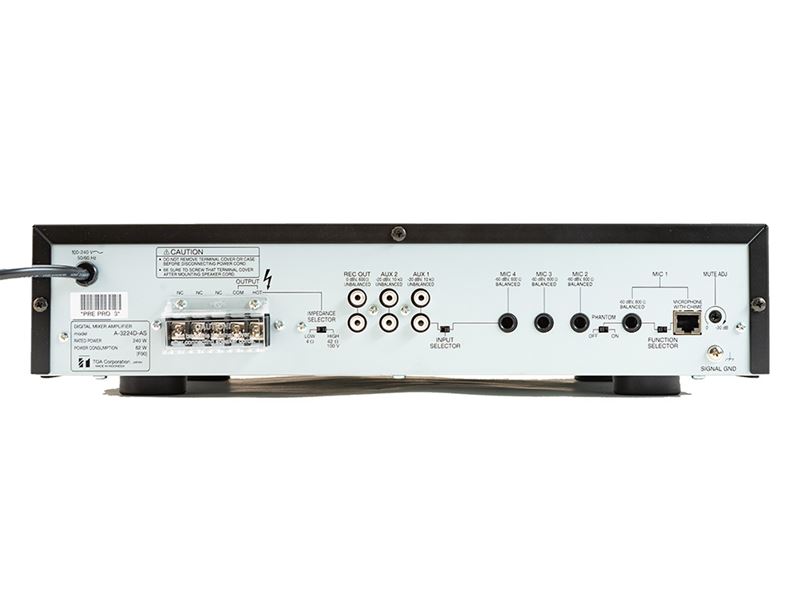

Input MIC 1: 1 mV (-60 dB*), 600 Ω, balanced, phone jack, selectable to RJ45
MIC 2-3: 1 mV (-60 dB*), 600 Ω, balanced, phone jack
MIC 4: 1 mV (-60 dB*) 600 Ω, balanced, phone jack, selectable to AUX 1
AUX 1: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4
AUX 2: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack
Output Speaker out: Speaker Output in screw type terminal
Direct line (selectable): 42 Ω (100 V) or 4 Ω
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom Power DC +21 V (MIC 1)
S/N Ratio Over 60 dB
Total Harmonic Distortion Under 1% at 1 kHz, 1/3 rated power
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting MIC 1: Mutes other input signals by 0-30 dB attenuation
Indicator Power, Signal , Peak, Protect
Ventilation Fan Cooling
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) × 100.9 (H) × 357 (D) mm
Weight 4.9 kg
