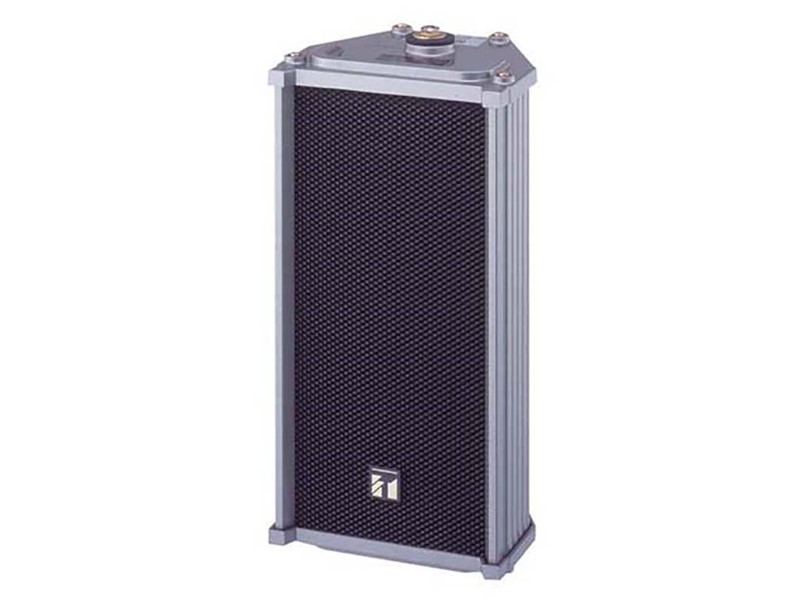

TOA TZ Series 10 Watts Metal-case Column Speaker

TZ-105

TOA

Whatsapp for enquiry Email for enquiry






The TZ-105 Column Speaker employs multiple cone speakers arranged vertically on a single baffle board to provide wider horizontal directivity.


Rated Input 10 W (Max. 15 W)
Rated Impedance 100 V line: 1 kΩ (10 W), 2 kΩ (5 W)
Sound Pressure Level 90 dB (1 W, 1 m)
Frequency Response 150 Hz - 10 kHz
Speaker Component 12 cm cone-type × 2
Water Protection IPX3 equivalent
Finish Enclosure: Extruded aluminum, silver gray, fully-glazed, baked paint
Grille: Punched aluminum net, black, matte, baked paint
Mounting bracket: Steel plate, silver gray, fully-glazed, baked paint
Dimensions 167 (W) × 335 (H) × 141 (D) mm
Weight 3.4 kg (unit only), 4 kg (including mounting bracket)
Accessory Mounting bracket …2, Mounting bolt, washer, packing …1 set
