TOA TZ Series 20 Watts Metal-case Column Speaker

TZ-205

TOA

Whatsapp for enquiry Email for enquiry

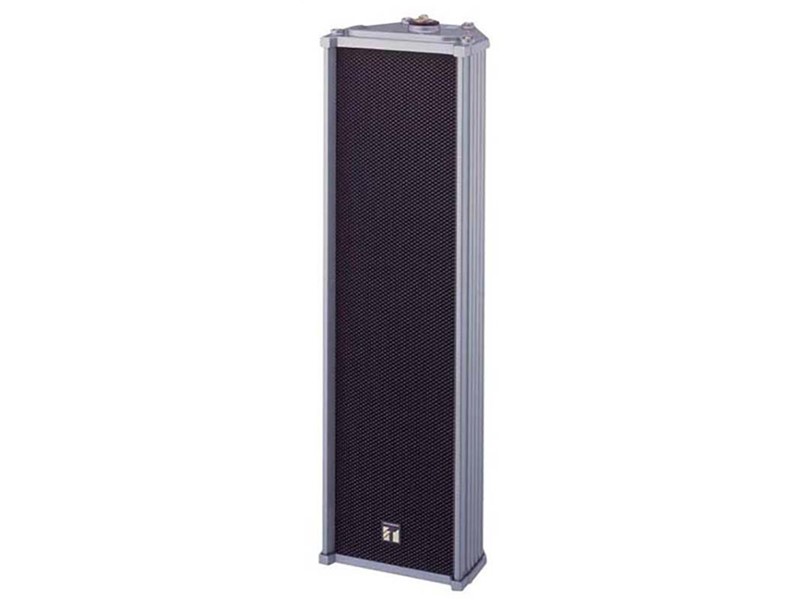

The TZ-205 Column Speaker employs multiple cone speakers arranged vertically on a single baffle board to provide wider horizontal directivity.


Rated Input 20 W (Max. 30 W)
Rated Impedance 100 V line: 500 Ω (20 W), 1 kΩ (10 W)
Sound Pressure Level 93 dB (1 W, 1 m)
Frequency Response 150 Hz - 10 kHz
Speaker Component 12 cm cone-type × 4
Water Protection IPX3 equivalent
Finish Enclosure: Extruded aluminum, silver gray, fully-glazed, baked paint
Grille: Punched aluminum net, black, matte, baked paint
Mounting bracket: Steel plate, silver gray, fully-glazed, baked paint
Dimensions 167 (W) × 580 (H) × 141 (D) mm
Weight 5.1 kg (unit only), 5.7 kg (including mounting bracket)
Accessory Mounting bracket …2, Mounting bolt, washer, packing …1 set
