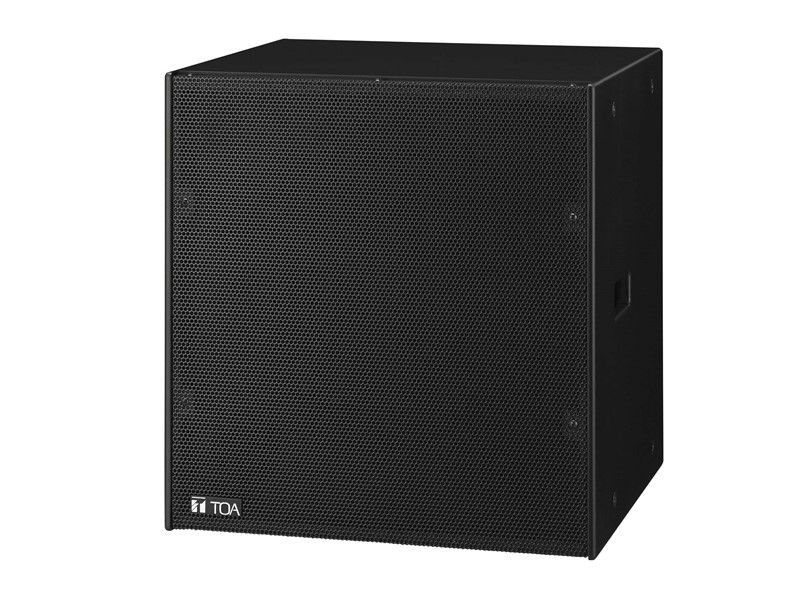

The FB-150B is a compact, indoor-use subwoofer system employing a high-power 38 cm (15") woofer. It is designed for use in conjunction with TOA's HX-7B or other full range speakers, and is particularly ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations.
| Power Handling Capacity | Continuous pink noise: 200 W
Continuous program: 600 W |
|---|---|
| Impedance | 8 Ω |
| Sensitivity | 93 dB (1 W, 1 m) |
| Frequency Response | 40 - 400 Hz (-10 dB) |
| Speaker Component | 38 cm (15") cone-type |
| Input Terminal | Speakon NL4MP × 2 and M4 screw terminal,
distance between barriers: 10 mm |
| Finish | Enclosure: MDF, black, urethane painte
Punched net: Surface-treated steel plate, black, paint |
| Dimensions | 505 (W) × 528 (H) × 477 (D) mm |
| Weight | 30 kg |
| Option | Speaker rigging frame: HY-PF7B
|
