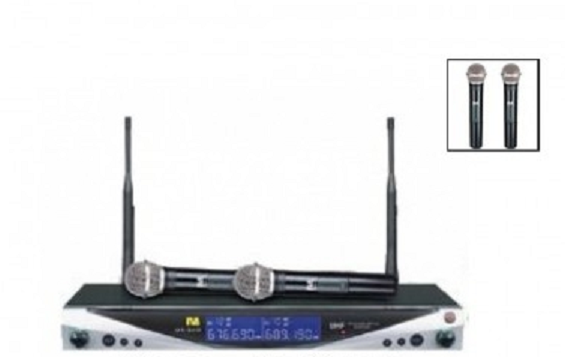

IVA UX34D Series 34CH UHF Wireless Microphone System with 2 Handheld Mic

UX34D-H2

IVA

Whatsapp for enquiry Email for enquiry






UX-34D is a mid-range professional IVA wireless microphone system. It provides the more all features needed for a wireless microphone system yet available at an affordable price. The UHF wireless microphone suitable use in small to medium size venue such as class, rooms and offices.


Features:

  • Desktop receiver and enchanced muting, high signal / noise ratio
  • Almost zero noise output when on standby
  • Broad frequency response range super low distortion
  • No impact on switching receiver, ensure safety of rear stage amplifier system and speaker
  • Perfect operative status signals, fluorescence display, with digital microphone
  • Long practical distance. Over 60 m in ideal circumstance
  • Applicable for medium & small stages, karaoke halls and home entertainment etc


RECEIVER

  • Frequency Range: 668.150 - 692.850 Mhz
  • Oscillation Mode Phase-Locked Loop Controlled
  • Carrier Wave Stability: 10 PPM
  • Sensitivity: -105dB @ sinad=12 dB
  • S/N Ratio: >105dB
  • T.H.D: <0.5% @1 kHz
  • Image Rejection: 85 dB typical
  • Spurious Rejection: 75 dB typical
  • Frequency Responses: 40Hz – 18kHz
  • Working Distance: 200 Feet
  • Squelch Control: Dual Squelch Circuit
  • AF Output Impedance: 2.2 KΩ
  • Max Output Level Balance: 0-400mv, Unbalance: 0-200mv
  • Display: LCD
  • Power Supply: External DC Power Supply, 0.5A, 12-18V DC
  • Output Connector: 2 x XLR Balanced Socket, Unbalanced TRS
  • Dimension (mm): 420 (W) x 42 (H) x 205 (D)
  • Weight: (KG) 2.1

TRANSMITTER

  • Frequency Range: 668.150 - 692.850 Mhz\
  • Transmitter Power: 30mW
  • Spurious Emission: <40dB (with carrier)
  • Display: LED
  • Battery Voltage: 1.5V x 2
  • Battery Life: 4 Hours *Vary by Using Behavior
