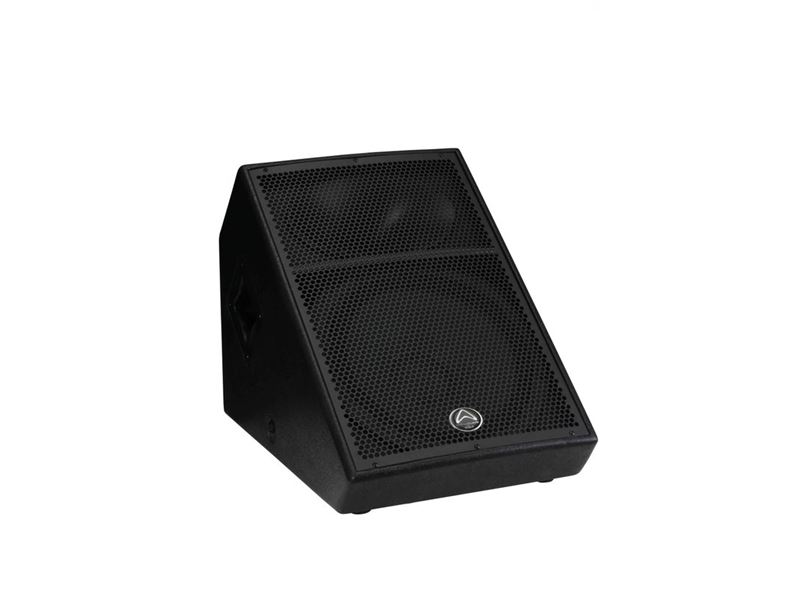

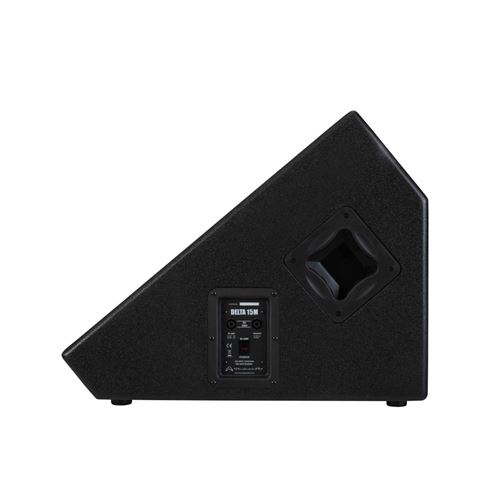

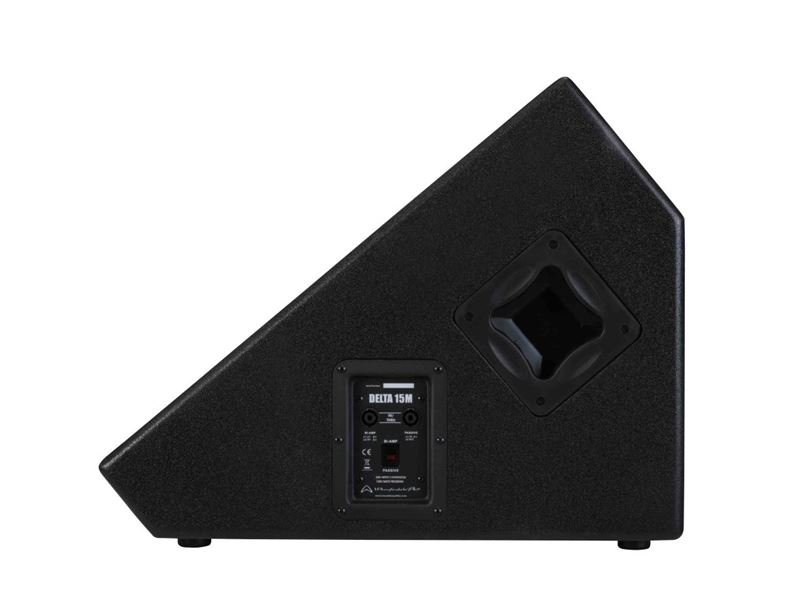

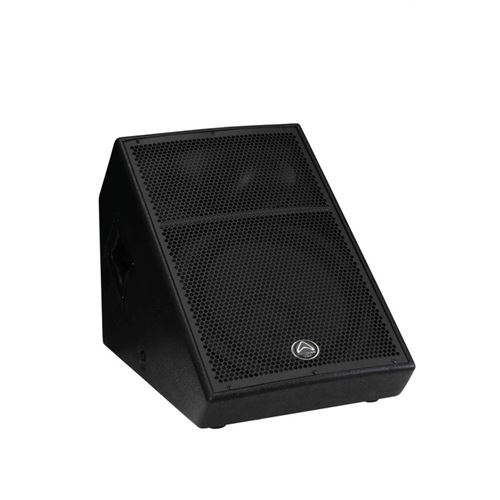

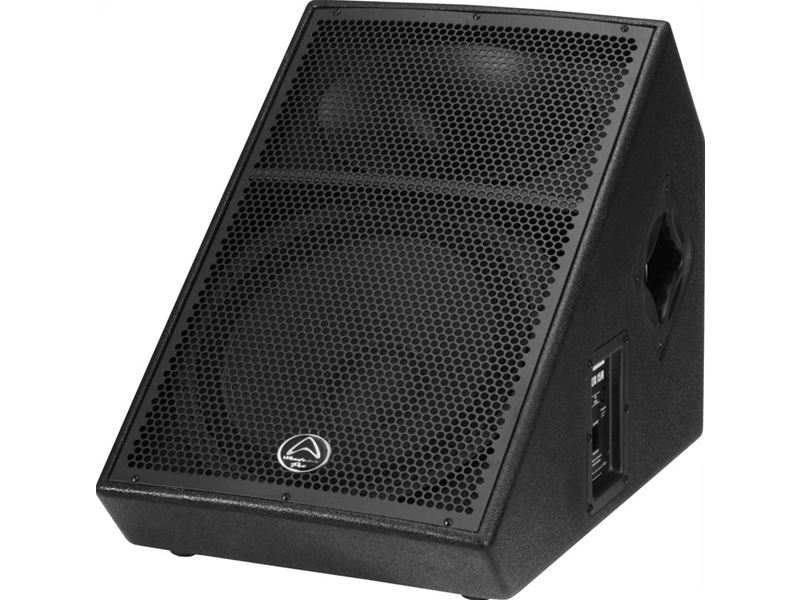

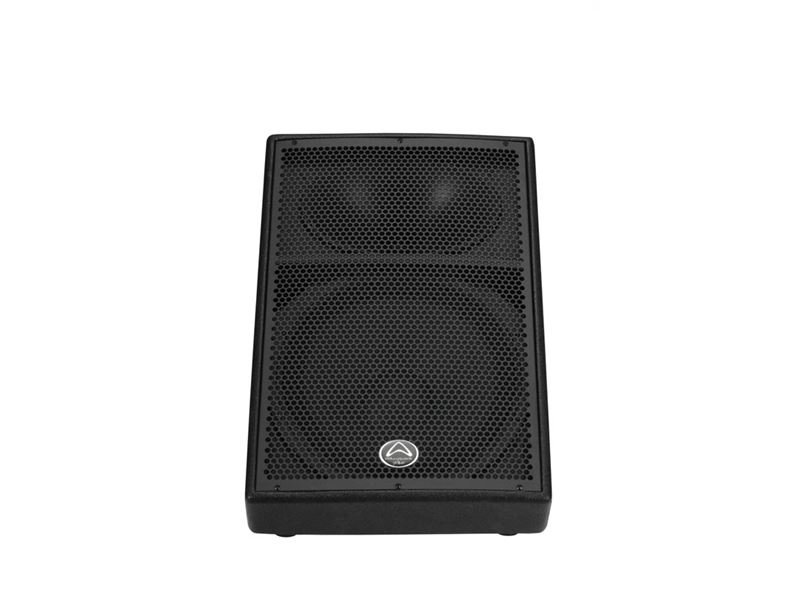

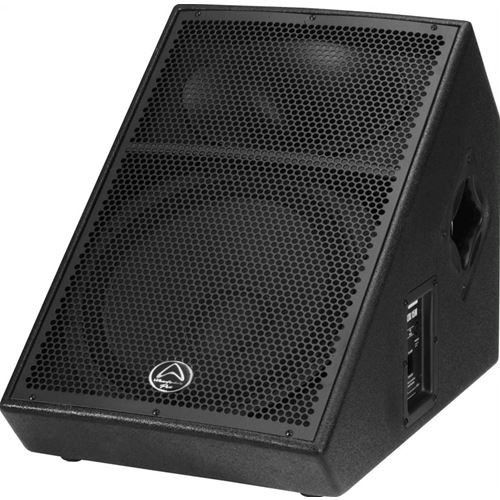

WHARFEDALE PRO Delta-X Series 500 Watts RMS 15" Passive Floor Monitor Speaker

DELTA-X15M

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






DELTA-X15M

500 watts
AES (RMS)
  • 15″ floor monitor
  • 2.0″ voice coil HF driver
  • 3.0″ LF voice coil
  • 500 watts AES (RMS)
  • 1000 watts Programme
  • 2000 watts Peak
  • 131 dB Max SPL @ 1 meter

Delta-X builds on the global success of the Wharfedale Pro Delta series.

Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new Delta-X models are instantly recognisable by their engraved iconic Wharfedale Pro ‘boomerang’ logo on their cabinets.  The fresh cosmetic design however is not the only improvement the engineering team have made.

Internally Delta-X also has a new crossover design and construction.  Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

With rear panel switching, Delta-X can operate in either Bi-Amp or Full range modes.  This routing flexibility allows for Delta-X systems to be refined using multiple amplifiers and external crossovers.

Custom Wharfedale Pro transducers have also been selected. High output, low physical distortion cast frame woofers deliver unparalleled low frequency response. With the exception of the Delta-X10, 2” titanium compression drivers are coupled to 90° x 45° elliptical waveguides for impressive output level and smooth HF dispersion.

With a full lineup of 9 new models, ranging from the 300w RMS Delta-X10 to the 1600w RMS Dual Chamber 2 x 18” Delta-X218 subwoofer, Delta-X models are perfect for fixed installation and touring applications.


  • Birch plywood construction
  • Re-engineered robust crossover design
  • Suitable for touring, rental and installation
  • 1.4″ Exit, 2″ Titanium Diaphragm Compression Drivers
  • Proprietary 90° x 60° Elliptical Wave Guide Horn design
  • Bi-amp and Passive mode switching
  • Extremely durable Rhino Rock finished cabinets
  • Multiple M6, M8 & M10 rigging points and integral tripod stand adapter
  • Trapezoid shape for arrays and stage monitoring
  • Dual spider technology on 18″ woofers
  • Rubberised 4-way handle


Model Name Delta X15M
System Type Passive
Configuration Two-way
Frequency Response (+/-3 dB) 55 Hz -20 KHz
Frequency Range (-10 dB) 50 Hz-20 KHz
Sensitivity (2.83 v / 1 m) 98 dB
Calculated Maximum SPL @1 m 131 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 404 mm / 15″
Voice Coil Size 77.1 mm / 3″
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 500 w
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 50.8 mm / 2″ Titanium
Exit Size 35.6 mm / 1.4″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012)
Nominal Coverage (H x V)
Power
System Continuous Power 500 w
System Programme Power 1000 w
System Peak Power 2000 w
Crossover frequency 1.8 KHz
Input Connector 2 x NL4 (speakON Compatible)
Hardware
Pole Mount
Handles 2 on Sides
Enclosure
Enclosure Material 15 mm Plywood
Finish Rhino Rock
Grille Material & Finish 1.5 mm Steel Black
Dimensions – Unpacked
Height 493 (SITU)mm / 19.4″
Width Front 446 mm / 17.6″
Width Rear 446 mm / 17.6″
Depth 685 mm / 27.0”
Dimensions – Packed
Height 518 mm / 20.4″
Width Front 757 mm / 29.8″
Width Rear 757 mm / 29.8″
Depth 565 mm / 22.2″
Weight
Net Weight (kg / lbs) 27.24 kg / 59.9 lbs
Gross Weight (kg / lbs) 33.96 kg / 74.7 lbs
