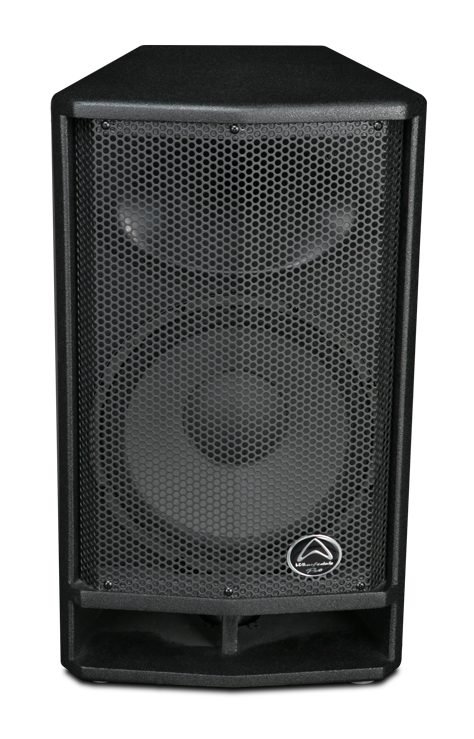

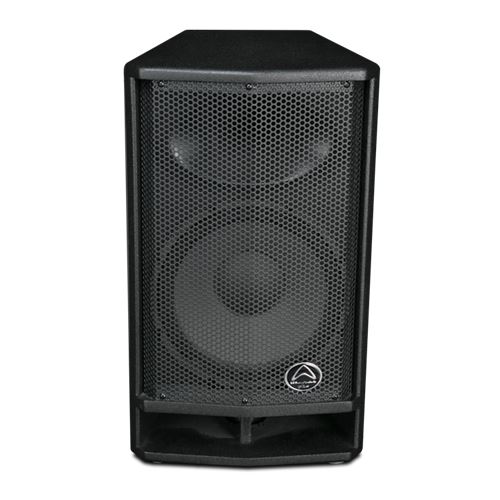

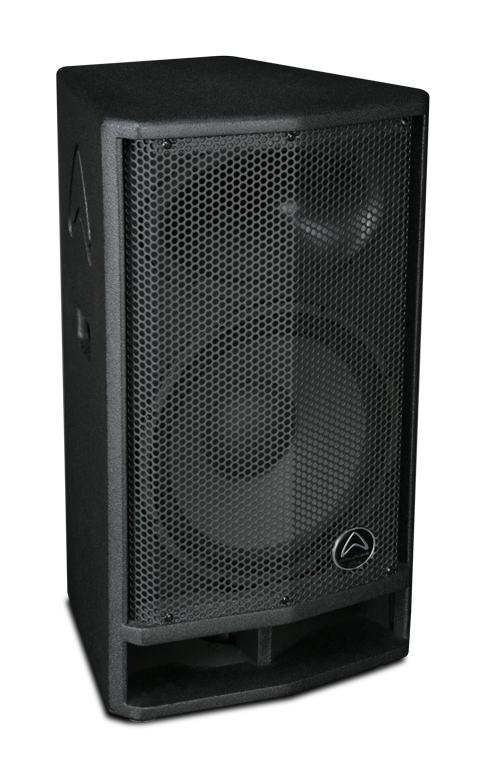

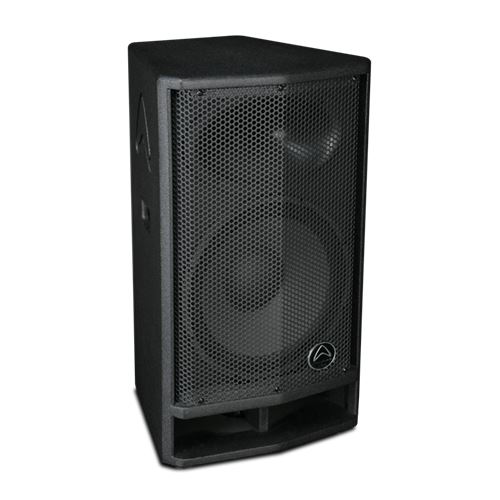

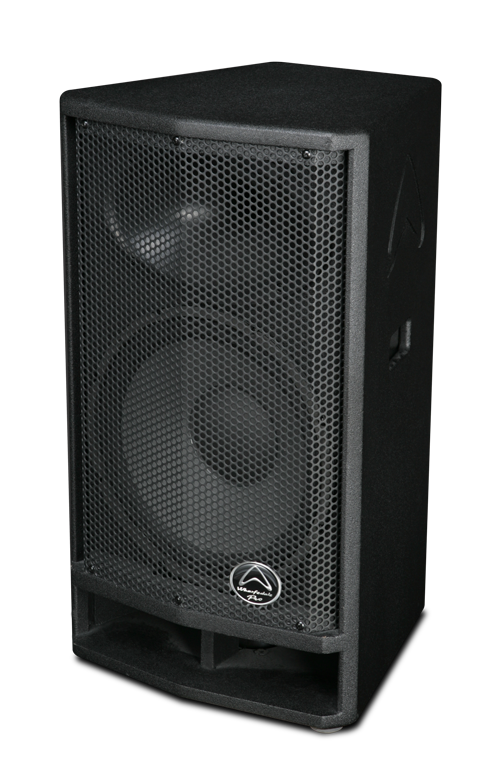

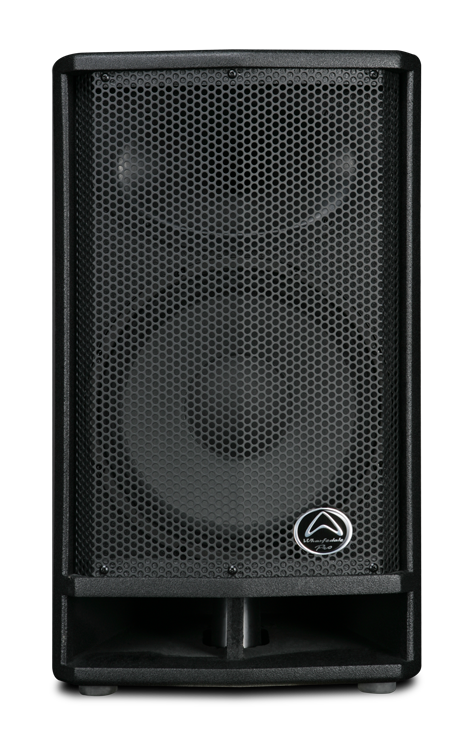

WHARFEDALE PRO DVP-X Series 300 Watts RMS 12" 2-Way Passive Loudspeaker

DVP-X12

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






DVP-X12

300 watts
AES (RMS)
  • 12″ 2-way passive
  • 1.75″ IRIS X HF driver
  • 12″ LF driver with 2.5″ voice coil
  • 300 watts AES (RMS)
  • 600 watts Programme
  • 1200 watts Peak
  • 129 dB Max SPL @ 1 meter

The DVP-X range has been specifically built for hardworking musicians and DJ’s on the road. Covering all live applications this robust line up covers all sizes from a full range 12” through to the huge 138 dB 2 x 18” subwoofer.

The MDF cabinets of DVP-X series are protected by an enhanced version of Wharfedale Pro’s proprietary Rhino Rock paint. This finish gives improved protection against chips, dinks and clunks during transportation to and from the gig. DVP-X will look as good as new even after many successful tours, parties and events. The iconic Wharfedale Pro logo is also CNC routed into the cabinet design.

But DVP-X is more than just a strong cabinet. The drivers use the latest Wharfedale Pro driver technology. For the LF drivers, a curvilinear, double-roll surround is used for smooth mid-high transitions and stability for low through to mid-range frequencies. All models have 2.5” voice coils for improved thermal dissipation.

A 44mm diaphragm IRIS X4 HF driver is used throughout the range. Using a solid aluminium rear plate, the HF driver is strengthened for durability and heat is dissipated efficiently for high pressure use during prolonged time periods. Wharfedale Pro engineers have also selected a 90° x 60° elliptical waveguide optimised for wide coverage in multiple venues while touring.

Special attention has been paid to the port and port mouth to ensure a huge bass output with detail and minimised distortion. For the floor monitors, the port mouth lies parallel to the ground, creating a reflective boundary effect to guarantee low-end delivery. Each port on each speaker has been tuned individually for low-end punch.

  • Individually tuned front ported systems for clear, punchy bass
  • Proprietary enhanced Rhino Rock paint for a chip resistant finish

  • Extended-range IRIS X Titanium dome HF drivers
  • High powered LF drivers using a double-roll surround
  • Fine-tuned crossovers, built in house for audio signal purity and optimised tuning
  • HF limiters are installed for thermal protection against extreme power input
  • 8 models in the passive line up


Model Name DVP-X12
System Type Passive
Configuration Two-way
Frequency Response (+/-3 dB) 60-18 KHz
Frequency Range (-10 dB) 55-20 KHz
Sensitivity (2.83 v / 1 m) 98 dB
Calculated Maximum SPL @1 m 129 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 305 mm / 12″
Voice Coil Size 65 mm / 2.5”
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 300 W
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 44 mm / 1.75″
Exit Size 25 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 40 W
Nominal Coverage (H x V) 90°x60°
Nominal Impedance 8 Ω
Power
System Continuous Power 300 W
System Programme Power 600 W
System Peak Power 1200 W
Crossover frequency 2.2 KHz

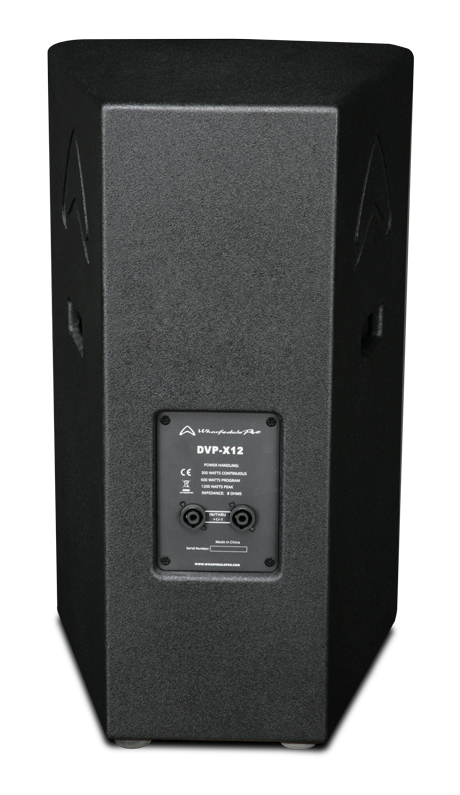

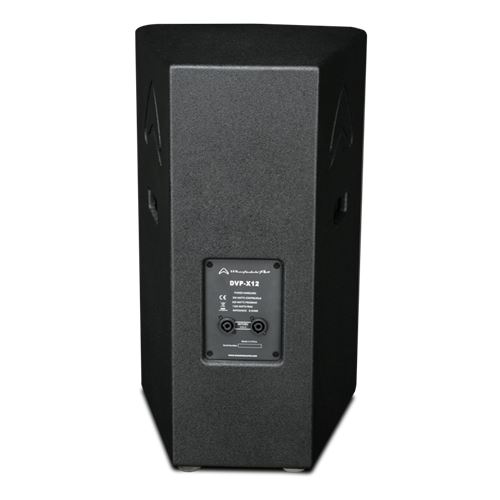

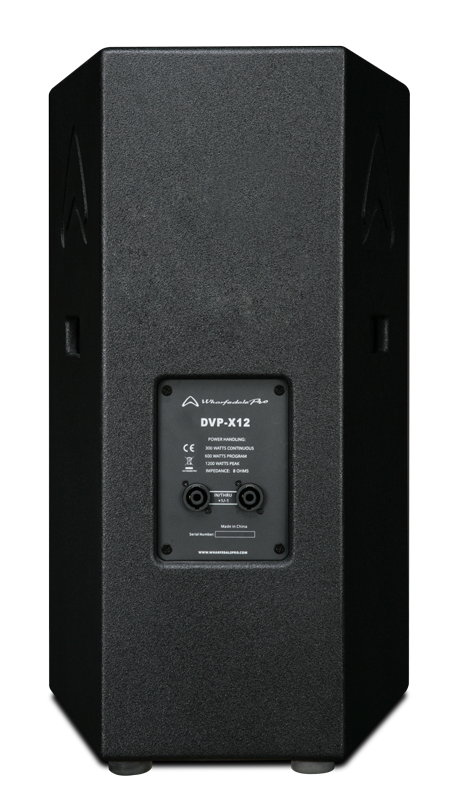

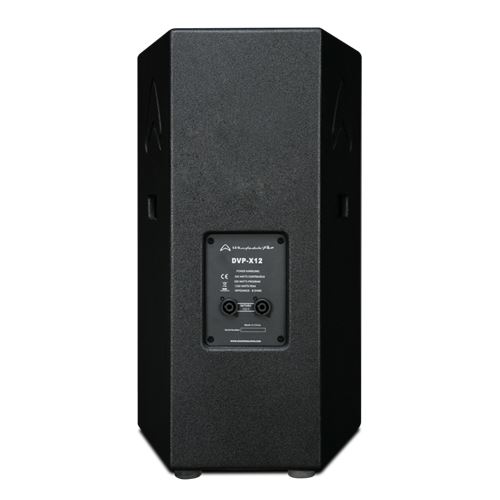

Input Connector 2 x NL4 (speakON compatible) + 1/4″ Jack combo
Hardware Dual-angle (0° / 10°) 35 mm socket
  2 carry handles
Enclosure
Enclosure Material and finish MDF
Colour Options black paint
Grille Material & Finish steel
Dimensions – Unpacked
Height 617 mm / 24.3″
Width Front 361.2 mm / 14.2″
Width Rear 207.6 mm / 8.2″
Depth 342.4 mm / 13.5″
Dimensions – Packed
Height 680 mm / 26.8″
Width Front 438 mm / 17.3″
Width Rear 236 mm / 9.3″
Depth 428 mm / 16.9″
Weight
Net Weight 17.6 kg / 38.7 lbs
Gross Weight 20.6 kg / 45.3 lbs
