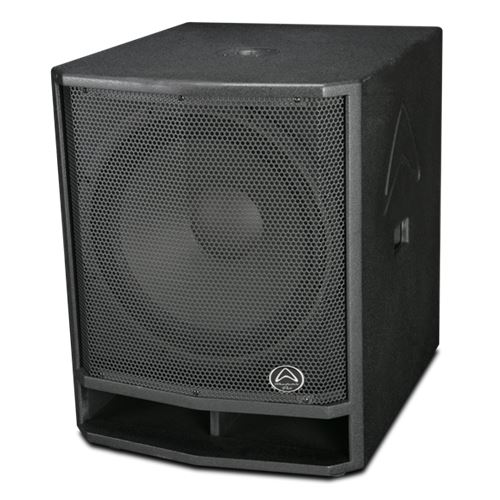

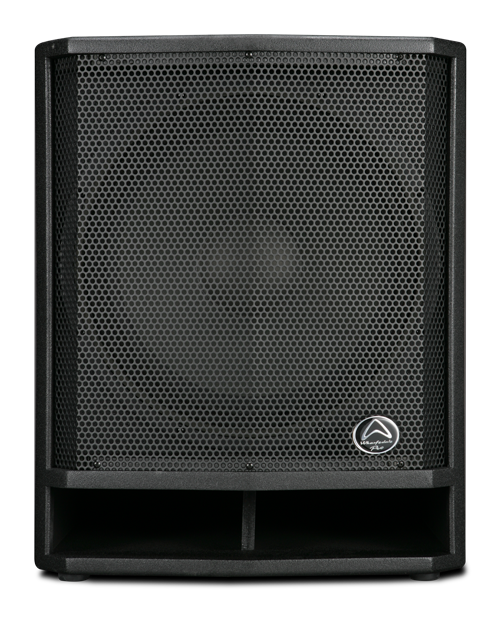

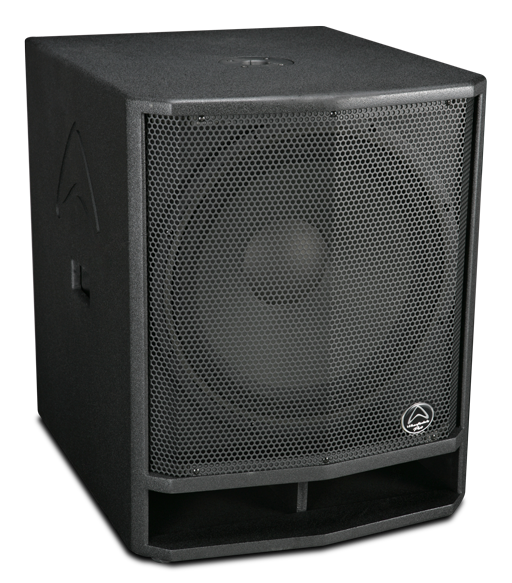

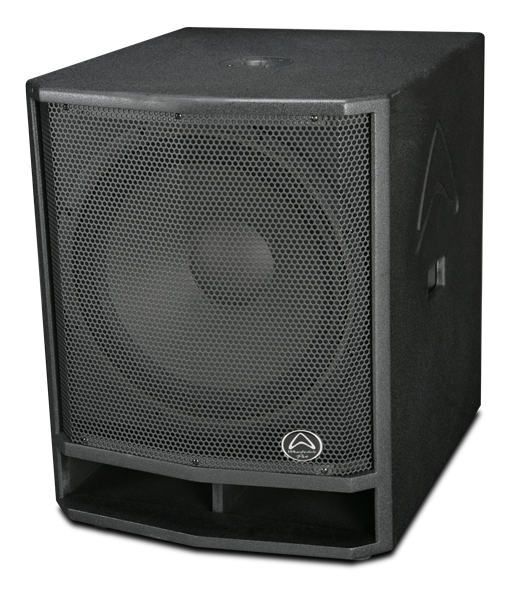

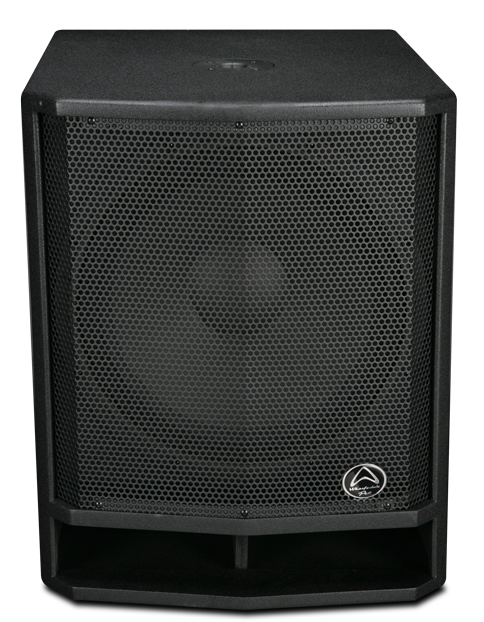

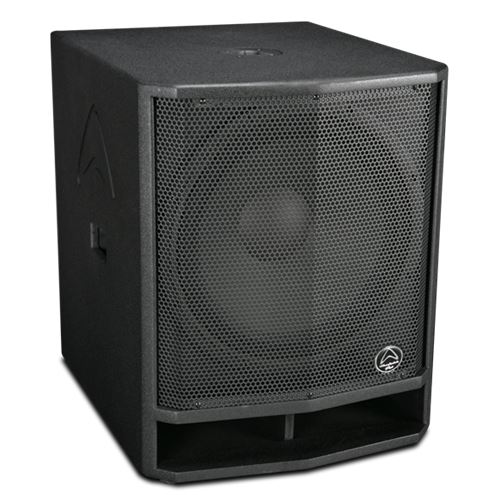

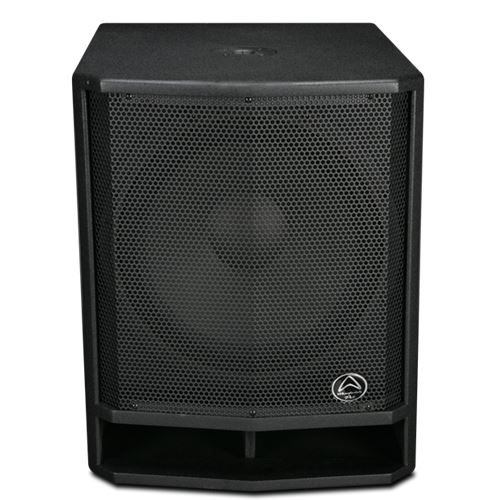

WHARFEDALE PRO DVP-X Series 500 Watts RMS 18" Passive Subwoofer

DVP-X18B

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






DVP-X18B

500 watts
AES (RMS)
  • 18″ passive subwoofer
  • 18″ LF driver with 2.5″ voice coil
  • 500 watts AES (RMS)
  • 1000 watts Programme
  • 2000 watts Peak
  • 133 dB Max SPL @ 1 meter

The DVP-X range has been specifically built for hardworking musicians and DJ’s on the road. Covering all live applications this robust line up covers all sizes from a full range 12” through to the huge 138 dB 2 x 18” subwoofer.

The MDF cabinets of DVP-X series are protected by an enhanced version of Wharfedale Pro’s proprietary Rhino Rock paint. This finish gives improved protection against chips, dinks and clunks during transportation to and from the gig. DVP-X will look as good as new even after many successful tours, parties and events. The iconic Wharfedale Pro logo is also CNC routed into the cabinet design.

But DVP-X is more than just a strong cabinet. The drivers use the latest Wharfedale Pro driver technology. For the LF drivers, a curvilinear, double-roll surround is used for smooth mid-high transitions and stability for low through to mid-range frequencies. All models have 2.5” voice coils for improved thermal dissipation.

A 44mm diaphragm IRIS X4 HF driver is used throughout the range. Using a solid aluminium rear plate, the HF driver is strengthened for durability and heat is dissipated efficiently for high pressure use during prolonged time periods. Wharfedale Pro engineers have also selected a 90° x 60° elliptical waveguide optimised for wide coverage in multiple venues while touring.

Special attention has been paid to the port and port mouth to ensure a huge bass output with detail and minimised distortion. For the floor monitors, the port mouth lies parallel to the ground, creating a reflective boundary effect to guarantee low-end delivery. Each port on each speaker has been tuned individually for low-end punch.

  • Individually tuned front ported systems for clear, punchy bass
  • Proprietary enhanced Rhino Rock paint for a chip resistant finish

  • Extended-range IRIS X Titanium dome HF drivers
  • High powered LF drivers using a double-roll surround
  • Fine-tuned crossovers, built in house for audio signal purity and optimised tuning
  • HF limiters are installed for thermal protection against extreme power input
  • 8 models in the passive line up


Model Name DVP-X18B
System Type Passive
Configuration subwoofer
Frequency Response (+/-3 dB) 35-150 Hz
Frequency Range (-10 dB) 30-150 Hz
Sensitivity (2.83 v / 1 m) 99 dB
Calculated Maximum SPL @1 m 133 dB
System Rated Impedance 4 Ω
Low Frequency Transducer
Size 470 mm / 18″
Voice Coil Size 65 mm / 2.5”
Rated Impedance 4 Ω
LF Power (re:AES2-2012) 500 W
High Frequency Transducer
HF Driver Type
Voice Coil Size
Exit Size
Diaphragm Material
Rated Impedance
HF Power (re:AES2-2012)
Nominal Coverage (H x V)
Nominal Impedance
Power
System Continuous Power 500 W
System Programme Power 1000 W
System Peak Power 2000 W
Crossover frequency 150 Hz

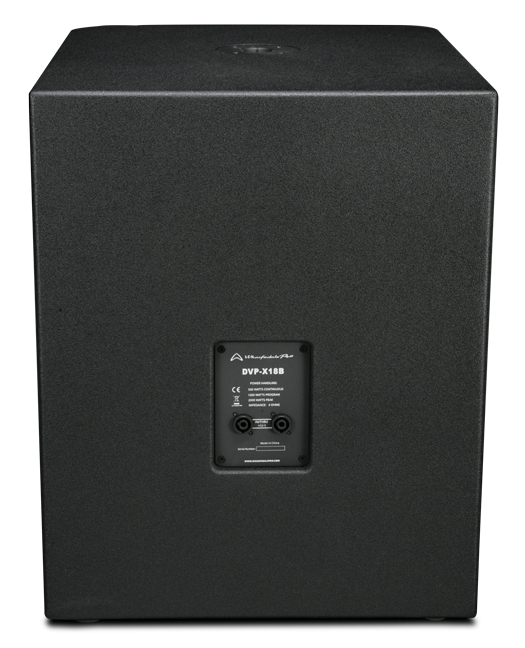

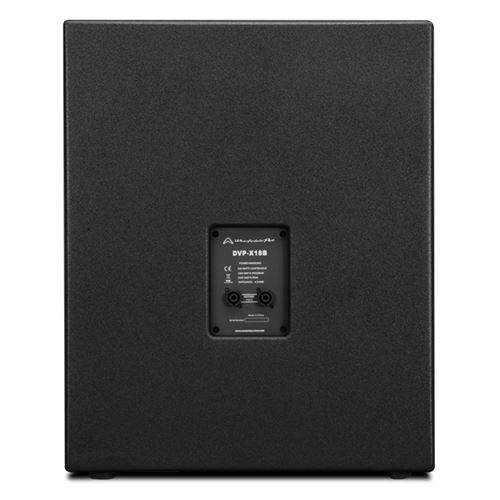

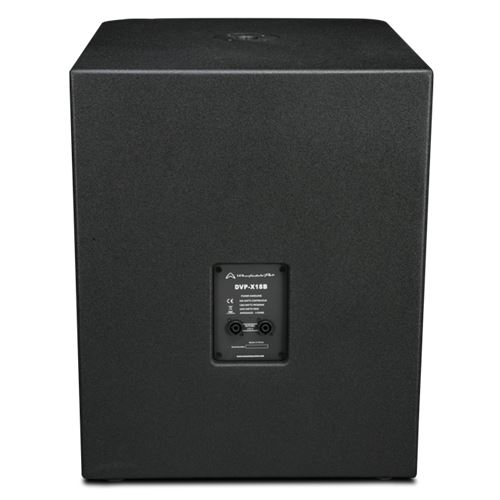

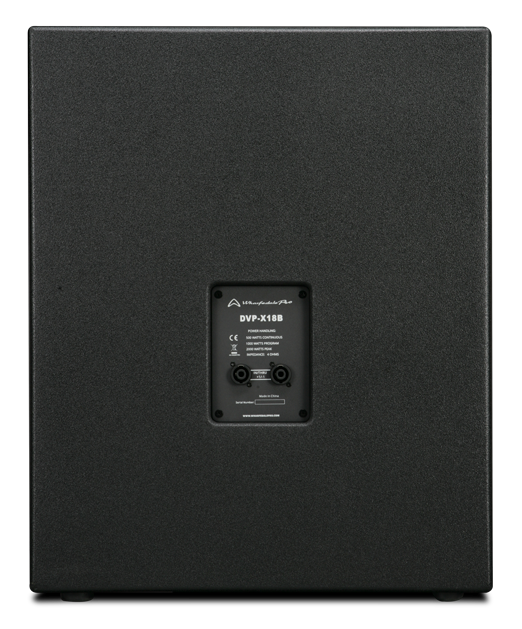

Input Connector 2 x NL4 (speakON compatible) + 1/4″ Jack combo
Hardware 35 mm pole socket
  2 carry handles
Enclosure
Enclosure Material and finish 15mm MDF
Colour Options black paint
Grille Material & Finish steel
Dimensions – Unpacked
Height 650 mm / 25.6″
Width Front 528 mm / 20.8″
Width Rear 528 mm / 20.8″
Depth 639 mm / 25.2″
Dimensions – Packed
Height 740 mm / 29.1″
Width Front 725 mm / 28.5″
Width Rear 725 mm / 28.5″
Depth 614 mm / 24.2″
Weight
Net Weight 35.3 kg / 77.7 lbs
Gross Weight 41.9 kg / 92.2 lbs
