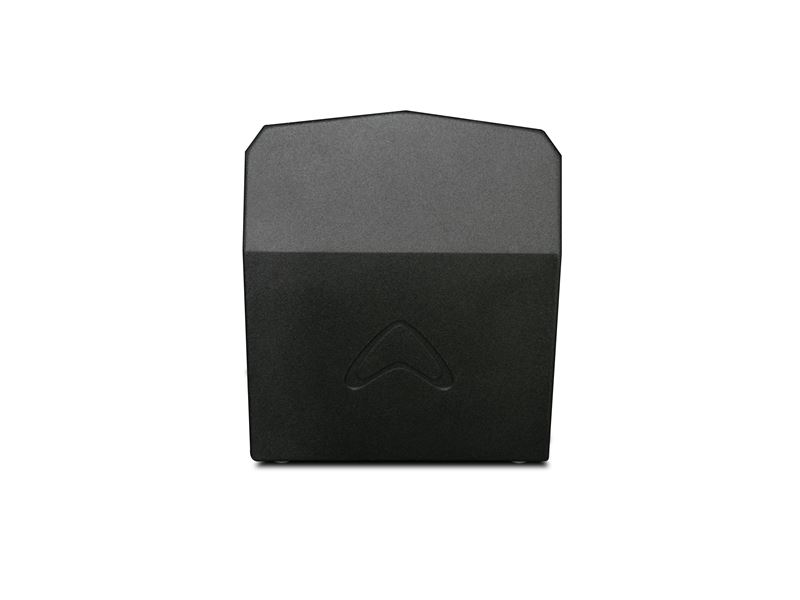

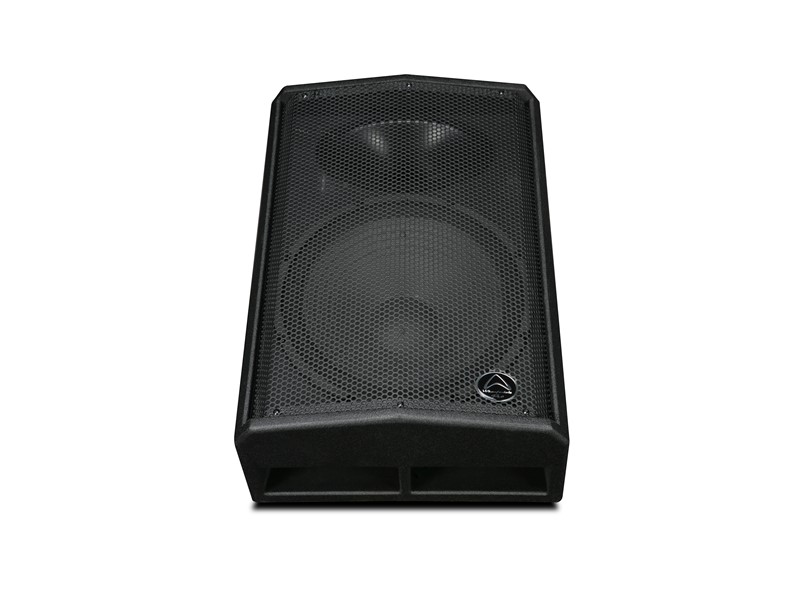

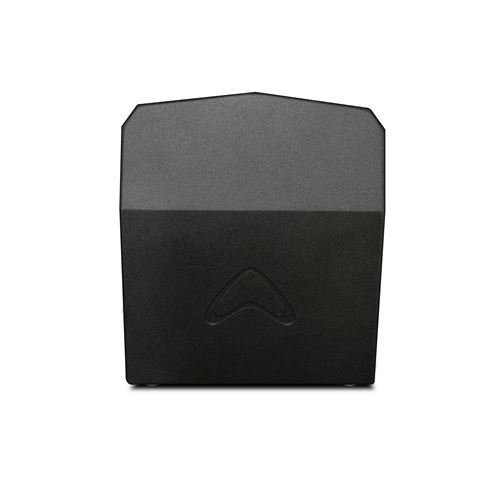

WHARFEDALE PRO DVP-AX Series 250 Watts RMS 15" 2-Way Active Floor Monitor Speaker

DVP-AX15M

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






DVP-AX15M

250 watts
Continuous
  • 15″ two-way bi-amplified monitor
  • 250 watts Continuous power
  • 500 watts Peak power
  • 90° x 60° dispersion
  • 1.75″ HF Compression driver
  • 2.5″ LF voice coil
  • 7-band Graphic EQ
  • Power output for secondary passive loudspeaker
  • 130 dB Max SPL @ 1 meter

DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard wearing cabinets make DVP-AX a perfect choice for hardworking DJ’s and musicians on the road.

The full-range models feature advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges and a practical 2 channel mic/line mixer makes life on stage easier.
The floor monitor models feature a 7-band EQ to help deliver maximum volume without feedback and a handy powered output for connecting to passive floor monitors.

While the electronics of DVP-AX set them apart from the competition, it is important not to overlook the custom Wharfedale Pro drivers in this lineup. Using dual layer LF transducers and the acclaimed IRIS X compression drivers, the mechanical features of DVP-AX have not been compromised.

DVP-AX delivers advanced electronics in a user-friendly format – but in a road-ready cabinet.

  • Class D bi-amplified active loudspeakers
  • Custom Wharfedale Pro transducers including IRIS-X HF drivers
  • 2-way full range models feature internal 6-position DSP
  • Subwoofers with Low Pass filter control
  • Monitors with 7-band internal Graphic EQ and secondary output
  • Large voice coils
  • Impressive SPL figures
  • For install or on the road


Model Name DVP-AX15M
System Type Active 15″ 2-way monitor
Frequency Response (+/-3 dB) 55-18 KHz
Frequency Range (-10 dB) 50-20 KHz
Maximum SPL @1 m 130 dB
Sensitivity @ 1 W / 1 m 98 dB
LF transducer Size (mm / inches) 381 mm / 15″
LF Coil Size (mm / inches) Dual 2 layer 2.5″
HF transducer : Type Compression Driver
HF Coil Size (mm / inches) 44 mm / 1.75″
HF Exit Size (mm / inches) 25 mm / 1″
HF Diaphragm Material Titanium
Nominal Coverage (H x V) 90° x 60°
LF Power Amplifier -Class D, 250 W / 500 W (8 Ω )
RMS/Peak Watts 500 W / 1000 W (4 Ω)
HF Power Amplifier -Class D, N/A
RMS/Peak Watts
DSP 7-band EQ
Controls—D-EQ 60 Hz 120 Hz 480 Hz 1 KHz 4 KHz
8 KHz 16 KHz
Amplifier Protection. Power On, Thermal, low voltage Yes
Driver Protection,DC, Short, Clip indicator Yes
Limiter Indicator Red LED
Power Indicator Green LED (Red LED front)
INPUTS : Input Sensitivity : Balanced 775 mv
Maximum Input Level 6 v
Input Connector 2*XLR & 2*1/4″ (Line/MIC)
Input Impedance Balanced:20 K
LPF control N/A
Polarity Control N/A
OUTPUTS : Line Output Connector XLR(Balanced out)
AC Power Options : SMPS 220-240 V 50/60 Hz
  100-120 V 50/60 Hz
Pole socket N/A
Handles 2 carry handles (one on each side)
Enclosure Material and Finish MDF / Black paint
Grille Material & Finish steel
Dimensions – Unpacked (mm / inches): Height 520 mm / 20.5”(SITU)
Width 449 mm / 17.7”
Width (rear) 449 mm / 17.7”
Depth 640 mm / 25.2”
Dimensions – Packed (mm / inches):Height 485 mm / 19.1”
Width 676 mm / 26.6”
Width (rear) 676 mm / 26.6”
Depth 541 mm / 21.3”
Net Weight (kg / lbs) 23.5 kg / 51.7 lbs
Gross Weight (kg / lbs) 27.2 kg / 59.8 lbs
