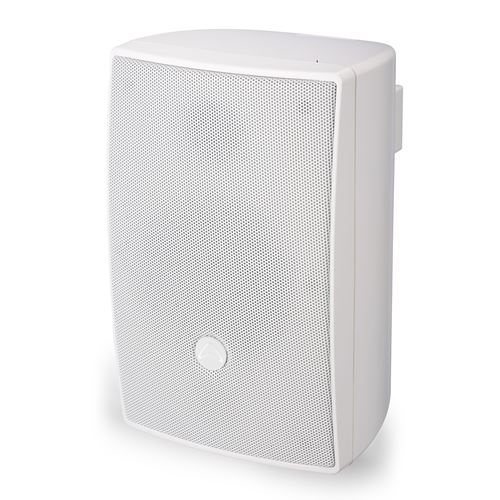

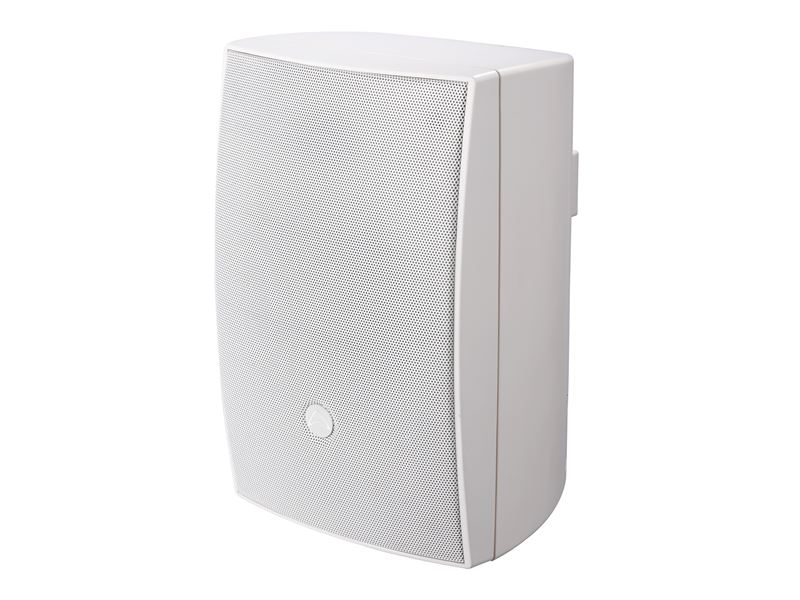

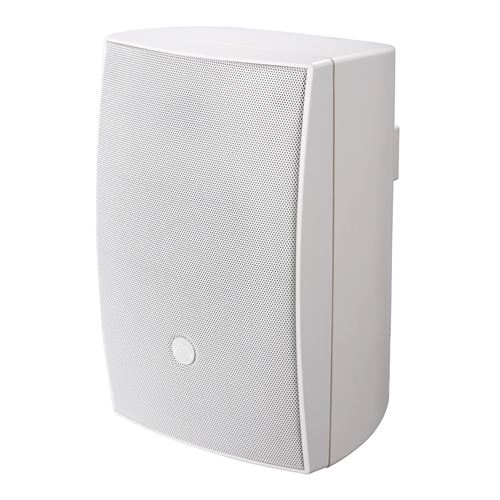

WHARFEDALE PRO I Series 25 Watts Programme Power 6.5" 2-Way Passive Installation Loudspeaker

I6T

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






6.5"

50 watts
AES (Continuous)
  • 6.5″ LF driver
  • 1.0″ HF done tweeter
  • ABS plastic construction
  • Wall brackets included
  • 8 Ω or 70v/100v versions available

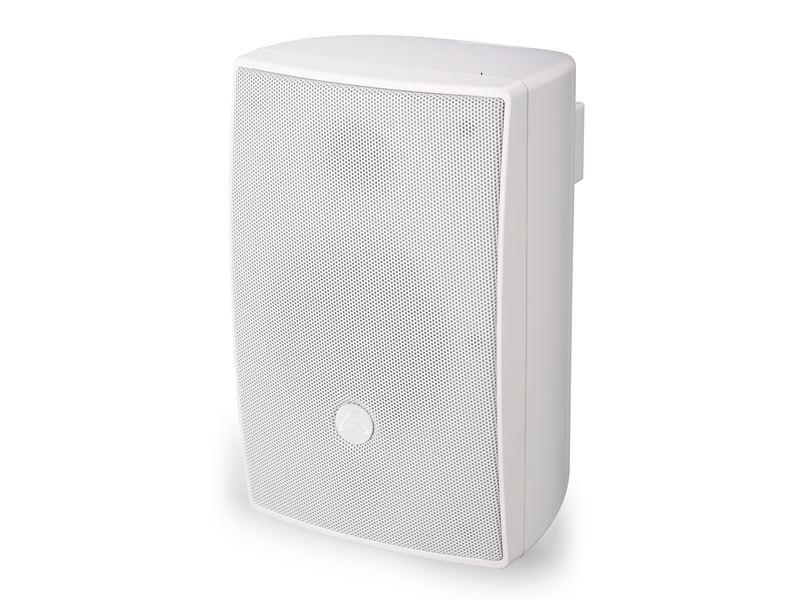

  • Available in black or white

ABOUT THE i SERIES

Designed specifically for small to medium scale commercial installations, the ‘i series' is made up of 3 ABS plastic models (4", 6.5" and 8"). Each model is available in a 70v/100v or in a 8Ω low impedance configuration and is available in Black or White.

MOUNTING

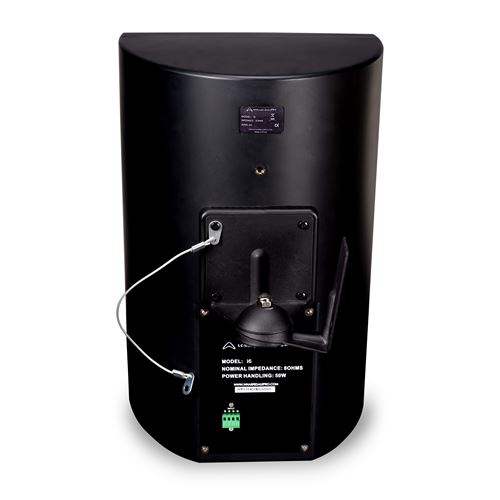

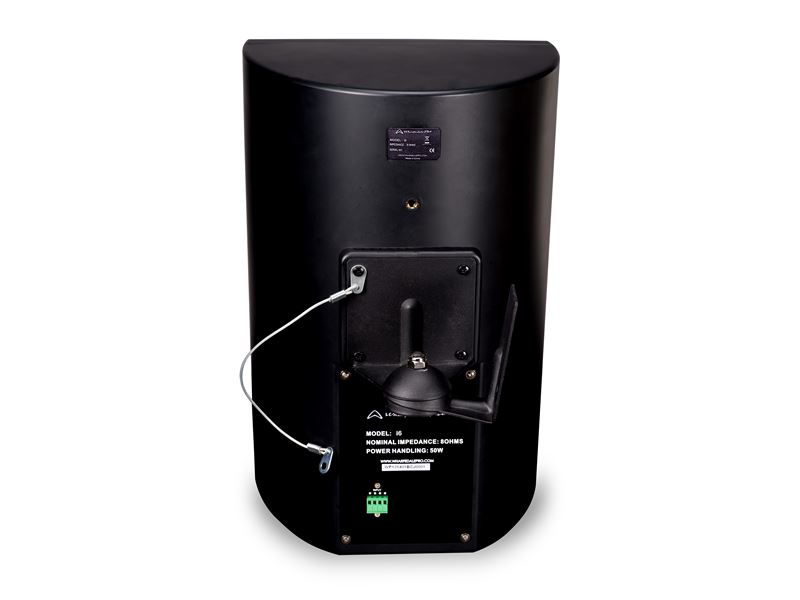

All models are supplied with fully adjustable steel wall mounting brackets. (No more searching through websites looking for compatible mounting hardware! The brackets come inside the These brackets are simple to install and give comprehensive adjustment angles due to the semi-circular 'ball and socket' design. i series are easy to mount, easy to adjust and simple to securely lock in place. There is also a threaded insert for attachment of the included seismic restraint tether.

DRIVERS

Internally, the i series use a two-way design with a 1.0" silk dome tweeter and custom Wharfedale Pro 4", 6.5" or 8" low frequency drivers. This combination results in a natural sounding speaker that suits both prereco rd ed musi c playbac k o r voic e applications.

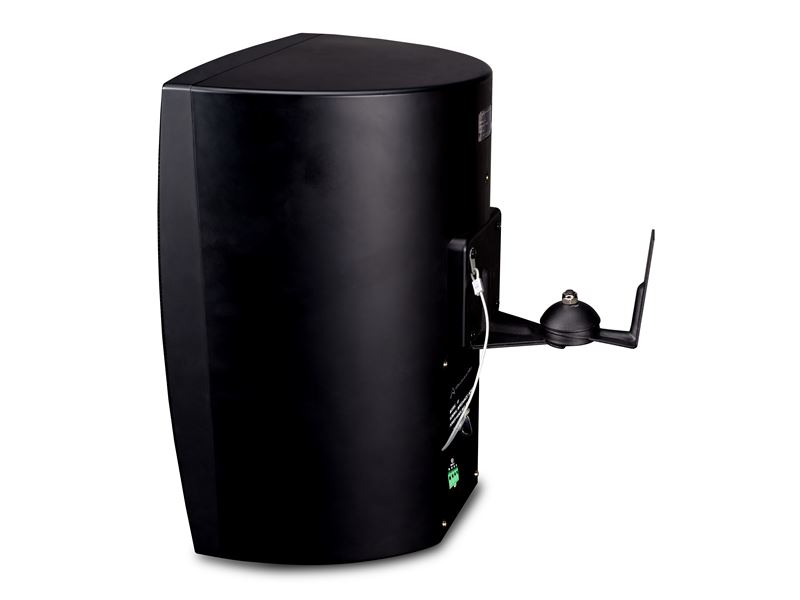

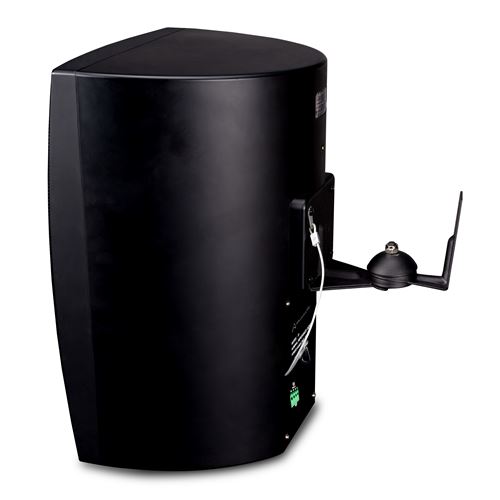

FULL METAL BRACKET

The beauty of I series is that you don’t have to worry about finding specialist mounting hardware. The fully-adjustable mounting brackets are included.

These brackets are simple to install and give comprehensive adjustment angles due to the semi-circular ‘ball and socket’ design.

I series are easy to mount, easy to adjust and simple to securely lock in place. There is also a threaded insert for attachment of the included seismic restraint tether.




  • 8″, 6.5″ and 4″ models
  • 8 Ω and 70 v and 100 v transformer models
  • Available in Black or White
  • Supplied in Pairs
  • Supplied with adjustable mounting brackets
  • IP54 certified
  • ABS construction

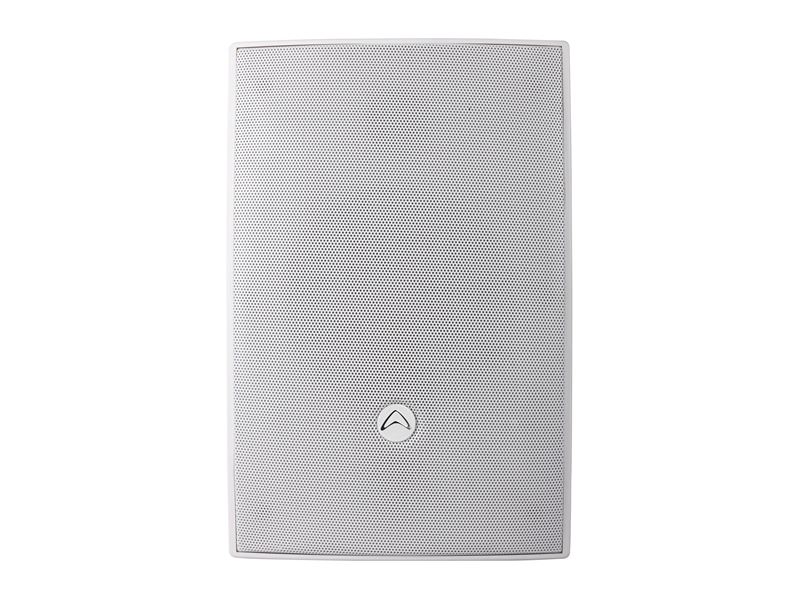

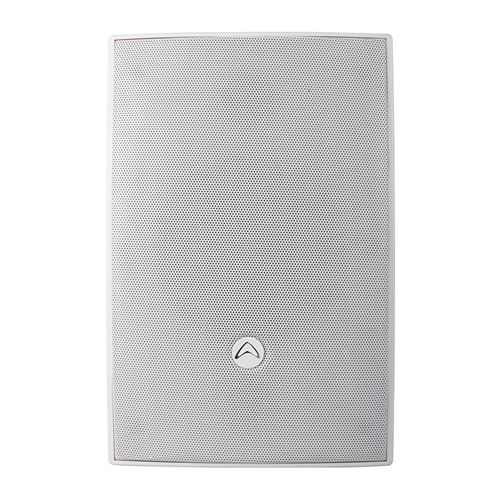

  • Full frontal steel grilles
  • Perfect for distributed audio installations


Model Name i6T
System Type Passive
Configuration Two-way
Frequency Response (+/-3 dB) 70 Hz – 20 KHz
Frequency Range (-10 dB) 50 Hz – 20 KHz
Sensitivity (2.83v/1 m) 85 dB
Calculated Maximum SPL @ 1 m 102 dB
System Rated Impedance n/a
Low Frequency Transducer
Size 6.5″
Voice Coil Size 1″
Rated Impedance
LF Power (re:AES2-2012) 50 w
High Frequency Transducer
HF Driver Type Soft dome tweeter
Voice Coil Size 1″
Diaphragm Material Silk
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 10 w
Nominal Coverage (H x V) 150° x 170°
Power
System Continuous Power 70 v : 12.5 w / 25 w / 50 w
System Programme Power 100 v : 25 w / 50 w
System Peak Power
Crossover frequency 2.2 KHz

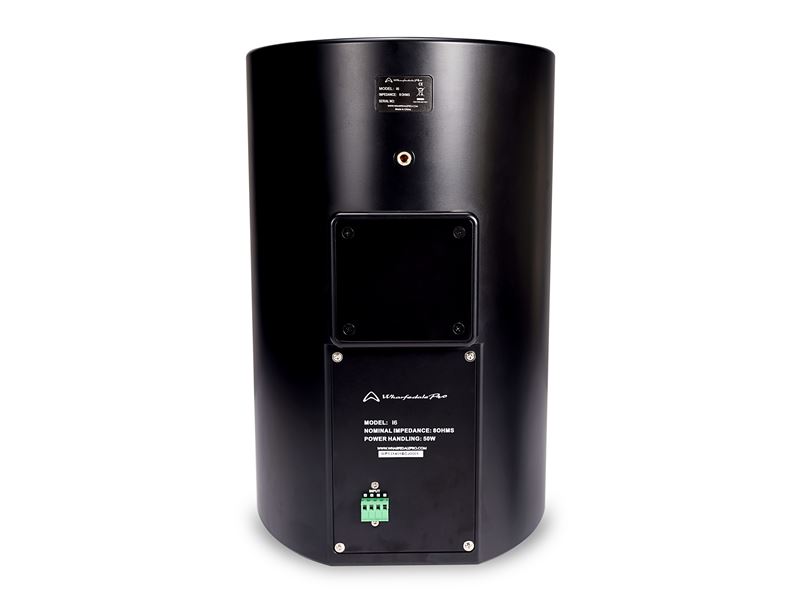

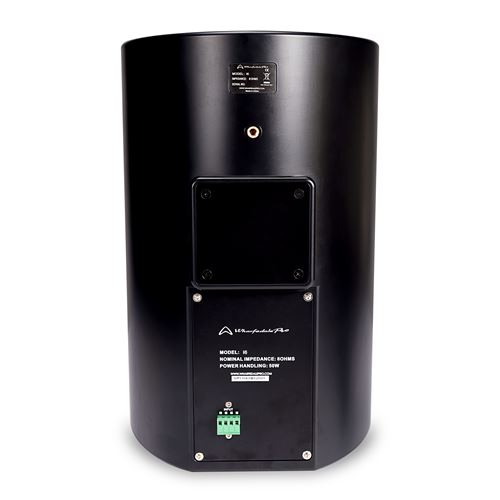

Input Connector Phoenix terminal
Hardware Wall mount bracket included
Enclosure
Enclosure Material and finish Plastic (ABS)
Colour Options Black or White
Grille Material & Finish Aluminium
Dimensions – Unpacked
Height 370 mm/14.6″
Width 245 mm/9.6″
Depth 216 mm/8.5″
Dimensions – Packed(1 PAIR)
Height 495 mm/19.5″
Width 565 mm/22.3″
Depth 340 mm/13.4″
Weight
Net Weight (single speaker) 4.3 kg / 9.46lbs
Gross Weight(1PAIR,Include Bracket) 11.12 kg / 24.5lbs
