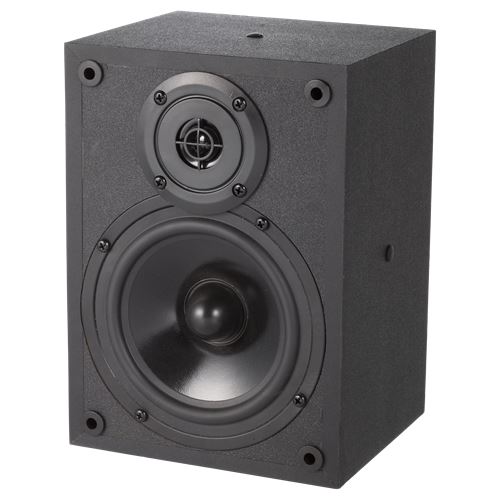

WHARFEDALE PRO Programme Series 60 Watts RMS 6.5" 2-Way Passive Installation Speaker

PROGRAMME-35E

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






PROGRAMME 35e

60 watts
AES (RMS)

  • 6.5″ 2-way passive
  • 1.0″ mylar done HF
  • M6 x 4
  • 60 watts AES (RMS)
  • 120 watts Programme
  • 240 watts Peak
  • 112 dB Max SPL @ 1 meter

Wharfedale Programme Series loudspeakers are the result of many years of experience in the use, design and manufacturing of professional loudspeaker products. We take great pride in engineering and building every Wharfedale Pro loudspeaker and wish to thank you for entrusting us with your sound.

Please take a few minutes to read this manual completely in order to ensure that you get the most out of your Programme Series Loudspeaker system.

PROGRAMME SERIES OVERVIEW:

The Programme Series loudspeaker systems are designed to deliver accurate, high power sound in a lightweight, compact and easy to install package.

Each Programme Series speaker may also be used in constant voltage distributed systems. With an internal, switchable transformer, you can economically install a background music or paging system, while still only using one amplifier.

The Programme Series has a speaker to fit your sound requirements. From the compact, lightweight Programme105 to the multiple driver Programme406, or adding the Programme Sub, you have the flexibility you need to provide the best sound value. With the included mounting brackets, transformer option (full range), you will be impressed with the ease of wall or ceiling mounting as well as the clear, accurate sound coming out of these speakers.

  • 2-way installation speaker systems
  • Mylar, silk and titanium HF drivers used across range
  • Low distortion, high power woofers
  • M6 or M8 high hanging points
  • speakON compatible, parallel spring and barrier inputs
  • Supplied with adjustable heavy duty steel mounting bracket
  • Models available with 70 v/100 v Transformer (‘T’ models)
  • For venues including houses of worship, retail shops and other public areas
  • White finishes also available


Model Name Programme
35E / 35ET
System Type Passive
Configuration Two-way
Freq Response (+/-3 dB) 65 Hz – 20 KHz
Frequency Range (-10 dB) 60 Hz – 20 KHz
Sensitivity (2.83 v / 1 m) 88 dB
Calculated Max SPL @1 m 112 dB
System Rated Impedance 8 Ω
LF Transducer
Size 165.1 mm / 6.5″
Voice Coil Size 25.5 mm / 1″
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 60 w
HF Transducer
HF Driver Type
Voice Coil Size 25.4 mm / 1″
Exit Size 25.4 mm / 1″
Diaphragm Material silk Dome
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 10 w
Nominal Coverage (H x V) 70˚ x 70˚
Power
System Continuous Power 60 w
System Programme Power 120 w
System Peak Power 240 w
Crossover frequency 2.3 KHz
Input Connector Bare Wire Spring
Hardware
Rigging M6 x 4 (Bracket Inc.)
Mounting bracket Included
Enclosure
Enclosure Material MDF
Finish Black Paint
Grille Material & Finish Black Full (Cloth)
Dimensions – Unpacked
Height 275 mm / 10.83″
Width Front 196 mm / 7.72″
Width Rear 196 mm / 7.72″
Depth 192 mm / 7.56″
Dimensions – Packed
Height 326 mm / 12.8″(pair)
Width Front 488 mm / 19.2″(pair)
Width Rear 488 mm / 19.2″(pair)
Depth 256 mm / 10.1(pair)
Weight
Net Weight / T-model 6.2 kg / 8.06 kg(pair)
Gross Weight / T-model 8.3 kg / 10.16 kg(pair)
