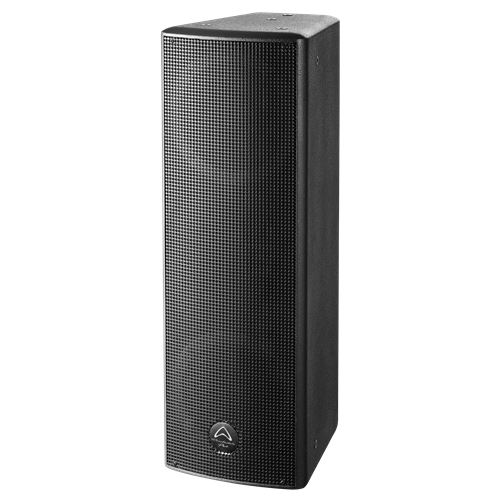

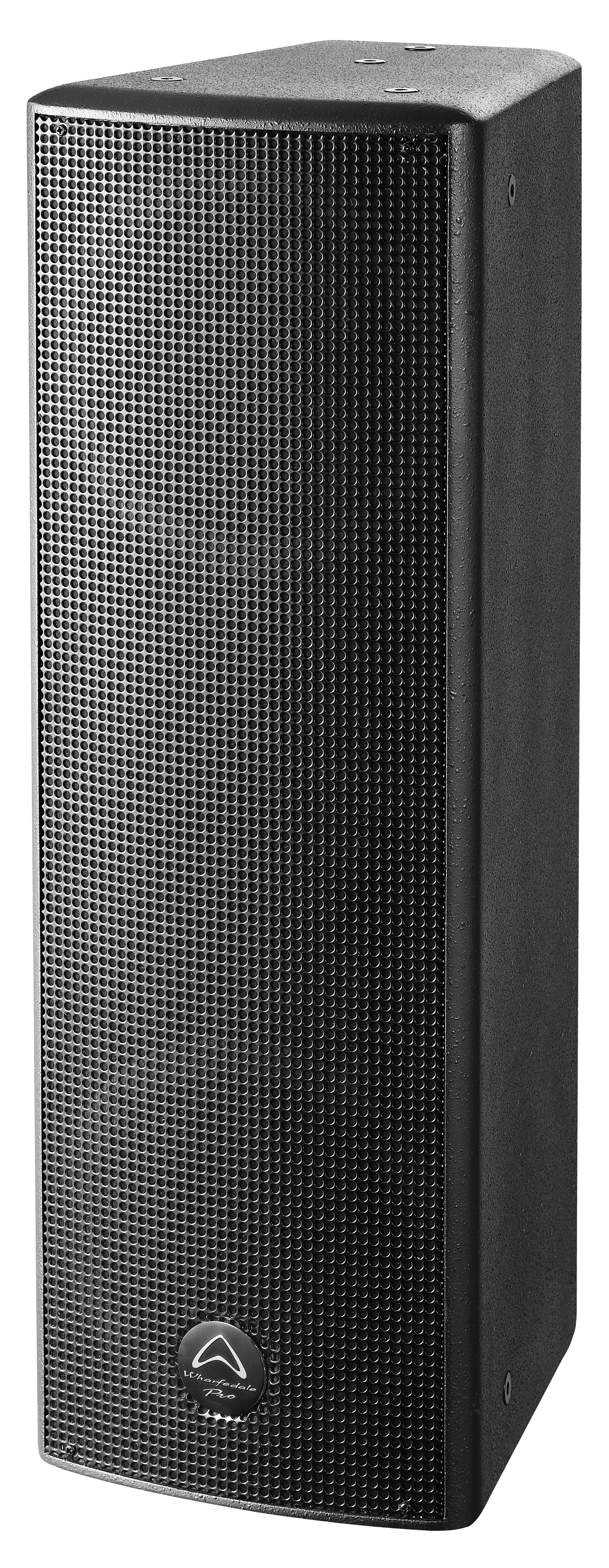

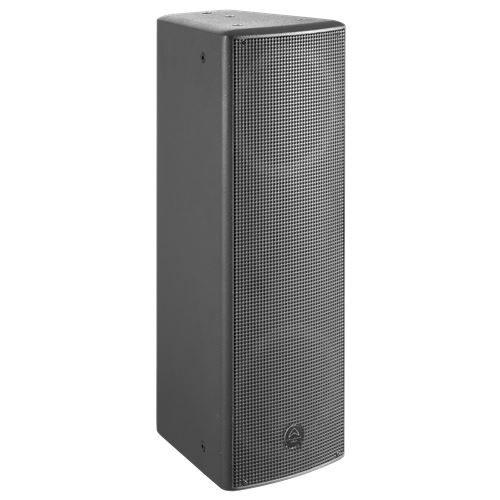

WHARFEDALE PRO Programme Series 150 Watts RMS 2x6.5" 2-Way Passive Installation Speaker

PROGRAMME-206

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






PROGRAMME 206

150 watts
AES (RMS)
  • 2 x 6.5″ 2-way passive
  • 1.0″ titanium done HF
  • M8 x 16
  • 150 watts AES (RMS)
  • 300 watts Programme
  • 600 watts Peak
  • 120 dB Max SPL @ 1 meter

Wharfedale Programme Series loudspeakers are the result of many years of experience in the use, design and manufacturing of professional loudspeaker products. We take great pride in engineering and building every Wharfedale Pro loudspeaker and wish to thank you for entrusting us with your sound.

Please take a few minutes to read this manual completely in order to ensure that you get the most out of your Programme Series Loudspeaker system.

PROGRAMME SERIES OVERVIEW:

The Programme Series loudspeaker systems are designed to deliver accurate, high power sound in a lightweight, compact and easy to install package.

Each Programme Series speaker may also be used in constant voltage distributed systems. With an internal, switchable transformer, you can economically install a background music or paging system, while still only using one amplifier.

The Programme Series has a speaker to fit your sound requirements. From the compact, lightweight Programme105 to the multiple driver Programme406, or adding the Programme Sub, you have the flexibility you need to provide the best sound value. With the included mounting brackets, transformer option (full range), you will be impressed with the ease of wall or ceiling mounting as well as the clear, accurate sound coming out of these speakers.

  • 2-way installation speaker systems
  • Mylar, silk and titanium HF drivers used across range
  • Low distortion, high power woofers
  • M6 or M8 high hanging points

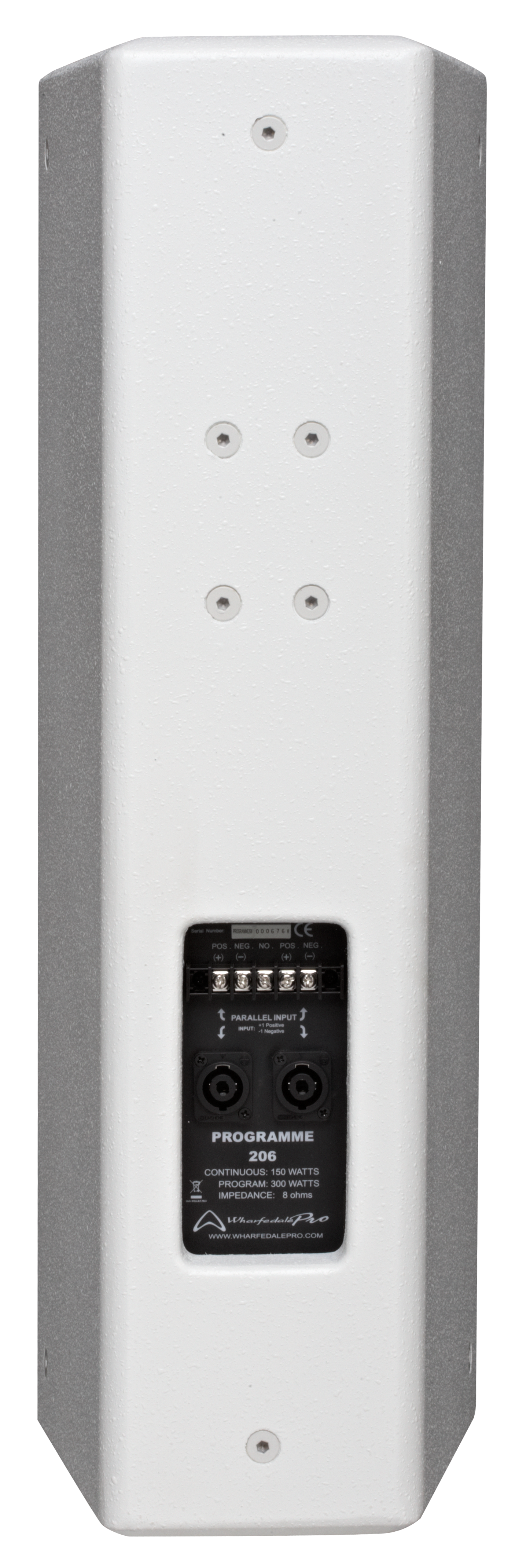

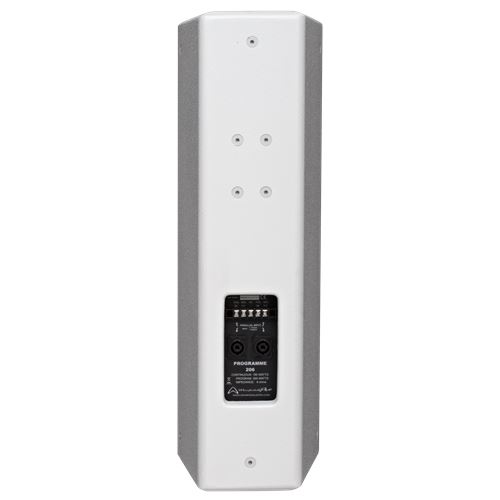

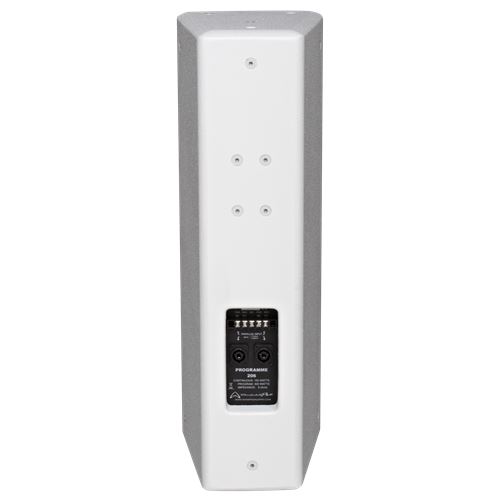

  • speakON compatible, parallel spring and barrier inputs
  • Supplied with adjustable heavy duty steel mounting bracket
  • Models available with 70 v/100 v Transformer (‘T’ models)
  • For venues including houses of worship, retail shops and other public areas

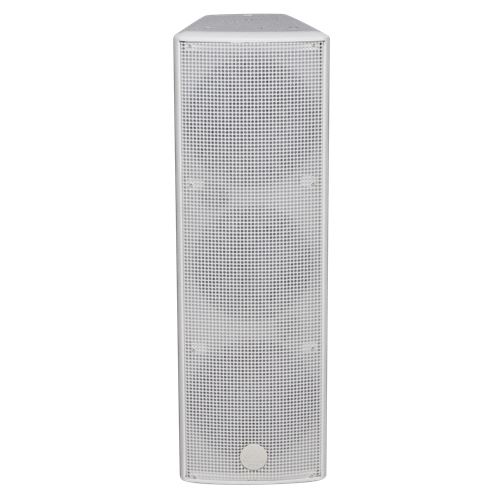

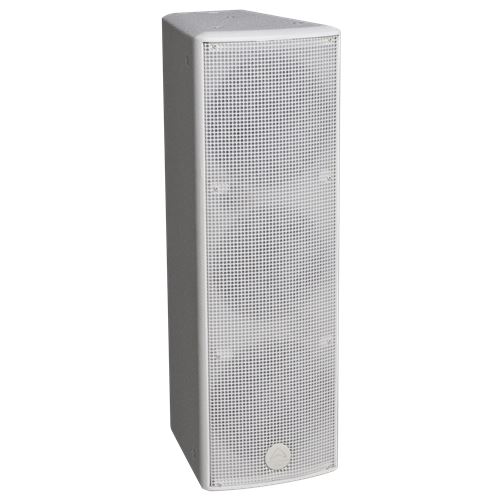

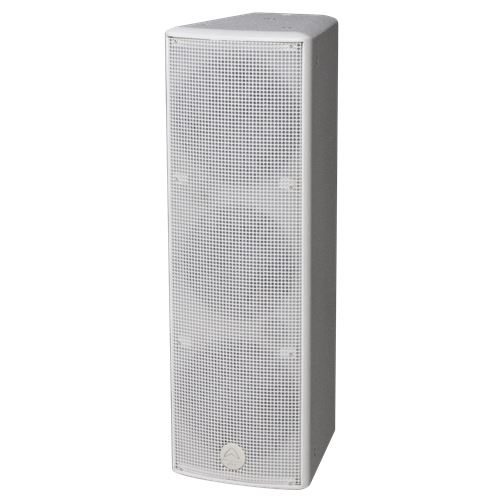

  • White finishes also available


Model Name Programme
206 / 206T
System Type Passive
Configuration Two-way
Freq Response (+/-3 dB) 65 Hz – 20 KHz
Frequency Range (-10 dB) 60 Hz – 20 KHz
Sensitivity (2.83 v / 1 m) 93 dB
Calculated Max SPL @1 m 120 dB
System Rated Impedance 8 Ω
LF Transducer
Size 2 x 165.1 mm / 2 x 6.5″
Voice Coil Size 25.5 mm / 1″
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 2 x 65 w
HF Transducer
HF Driver Type
Voice Coil Size 25.4 mm / 1″
Exit Size 25.4 mm / 1″
Diaphragm Material titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 15 w
Nominal Coverage (H x V) 60˚ x 60˚
Power
System Continuous Power 150 w
System Programme Power 300 w
System Peak Power 600 w
Crossover frequency 2.3 KHz
Input Connector 2 x NL4
+ Barrier Strip
Hardware
Rigging M8 x 18
Mounting bracket Included
Enclosure
Enclosure Material MDF
Finish Black / White Paint
Grille Material & Finish Black / White Full (Steel)
Dimensions – Unpacked
Height 660.5 mm / 26″
Width Front 215 mm / 8.46″
Width Rear 215 mm / 8.46″
Depth 275 mm / 10.82″
Dimensions – Packed
Height 745 mm / 29.3″
Width Front 278 mm / 10.9″
Width Rear 278 mm / 10.9″
Depth 346 mm / 13.6″
Weight
Net Weight / T-model 17.8 kg / 20.3 kg
Gross Weight / T-model 20.95 kg / 23.45 kg
