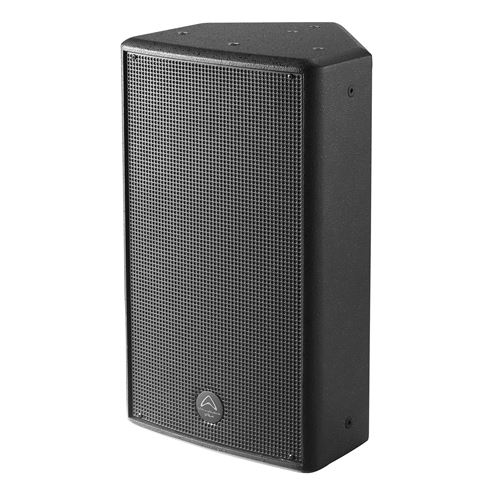

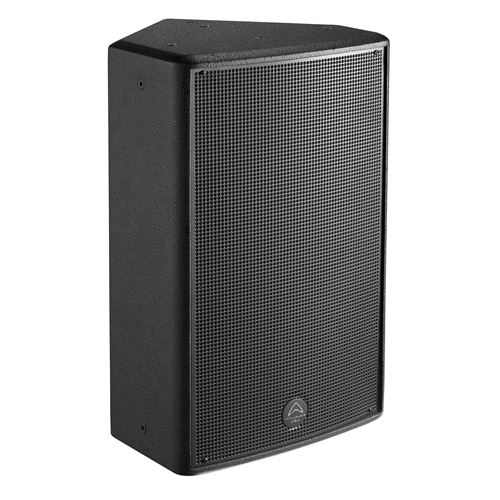

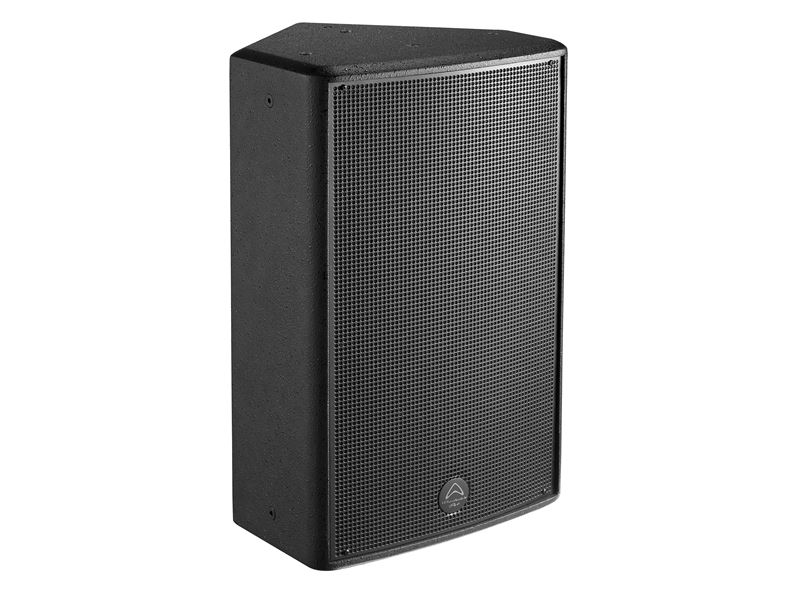

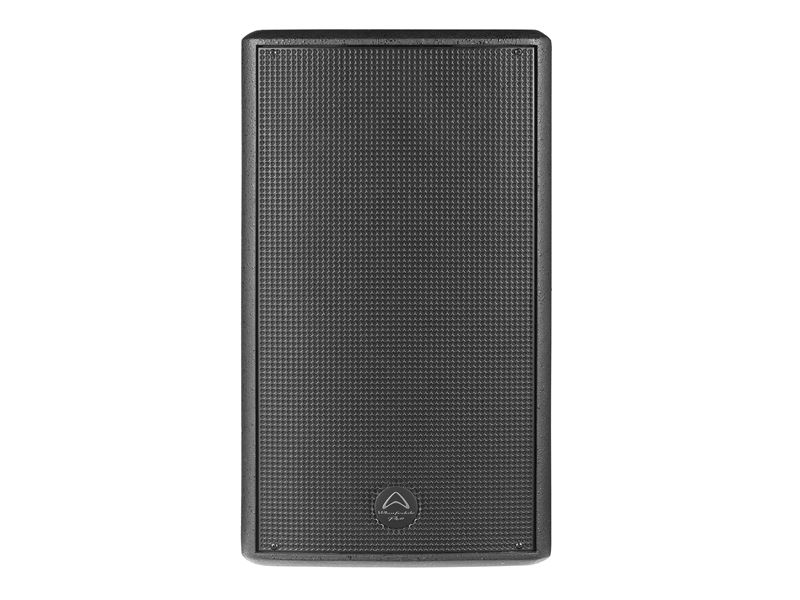

WHARFEDALE PRO SI-X Series 200 Watts RMS 10" 2-Way Passive Installation Loudspeaker

SI-10X

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






SI-10X

200 watts
AES (RMS)
  • 10″ 2-way passive
  • 1.75″ HF compression driver
  • M8 x 20
  • 200 watts AES (RMS)
  • 400 watts Programme
  • 800 watts Peak
  • 121 dB Max SPL @ 1 meter
  • Bracket included

The SI-X™ Series –– Foreground/Background Music And Sound Reinforcement Speakers

The SI-X Series is a versatile fixed installation loudspeaker system designed for surface mount or flown applications. The angled low profile enclosures are designed to provide high SPL in an unobtrusive package.

Consistent voicing across the range ensures seamless coverage when using a variety of different models in distributed sound applications. All SI-X Series models feature a 1” exit compression driver on a 70°x 70° conical waveguide providing open and detailed high frequency extension with even and predictable dispersion.

Because of their multi-faceted design the SI-X speakers can be positioned next to a stage, wall or ceiling. This versatility suits the SI-X Series to a diverse range of applications such as live performance halls, houses of worship, schools, shops, restaurants, bars and public houses.

The SI-X Series includes full range enclosures with woofer sizes ranging from 10” to 15”, a dual 8” woofer model is also available. The full range enclosures are complimented by 3 subwoofers for extended low frequency response and increased SPL. Available in black or white painted finishes all models feature multiple M8 rigging points to suit the widest range of flown applications. Brackets are included as standard.


  • 2-way reflex systems
  • Folded horn and Direct Radiating subwoofers
  • 25.4mm Titanium high frequency compression drivers
  • Low distortion, high power woofers
  • 70° x 70° High Frequency Horn
  • Multifaceted 40° x 50° MDF enclosure
  • 20 x M8 hanging points
  • NL4 & Barrier Strip speaker inputs

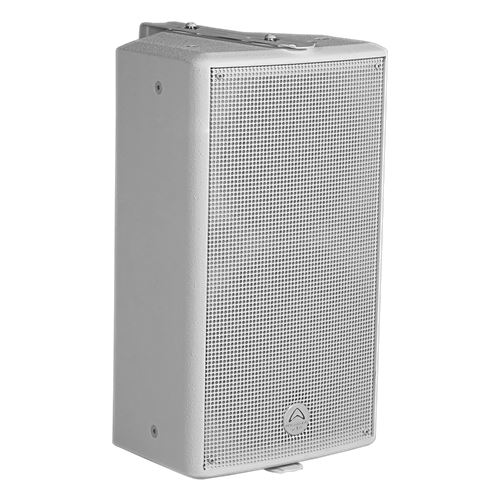

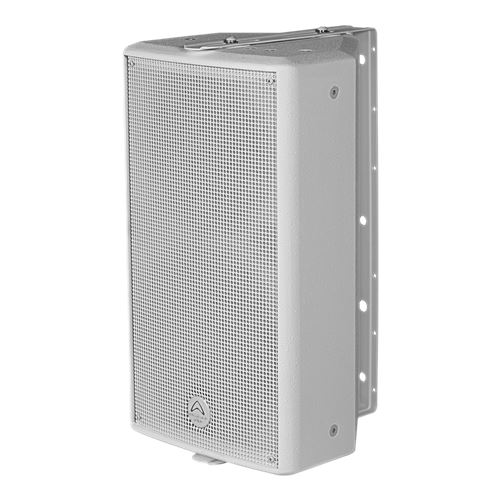

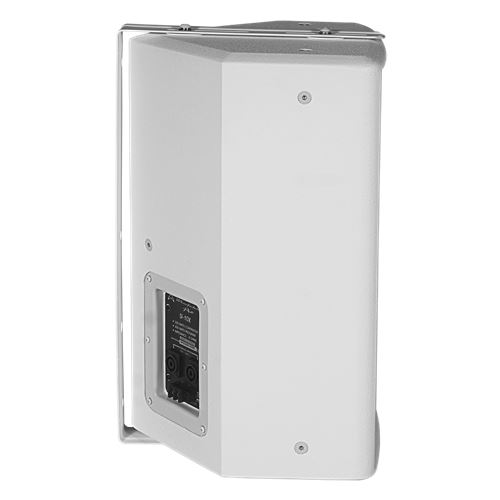

  • U-shaped steel mounting bracket included
  • Install in houses of worship, shops and other public areas

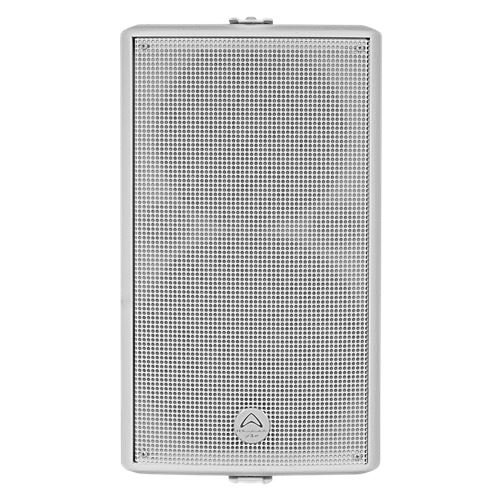

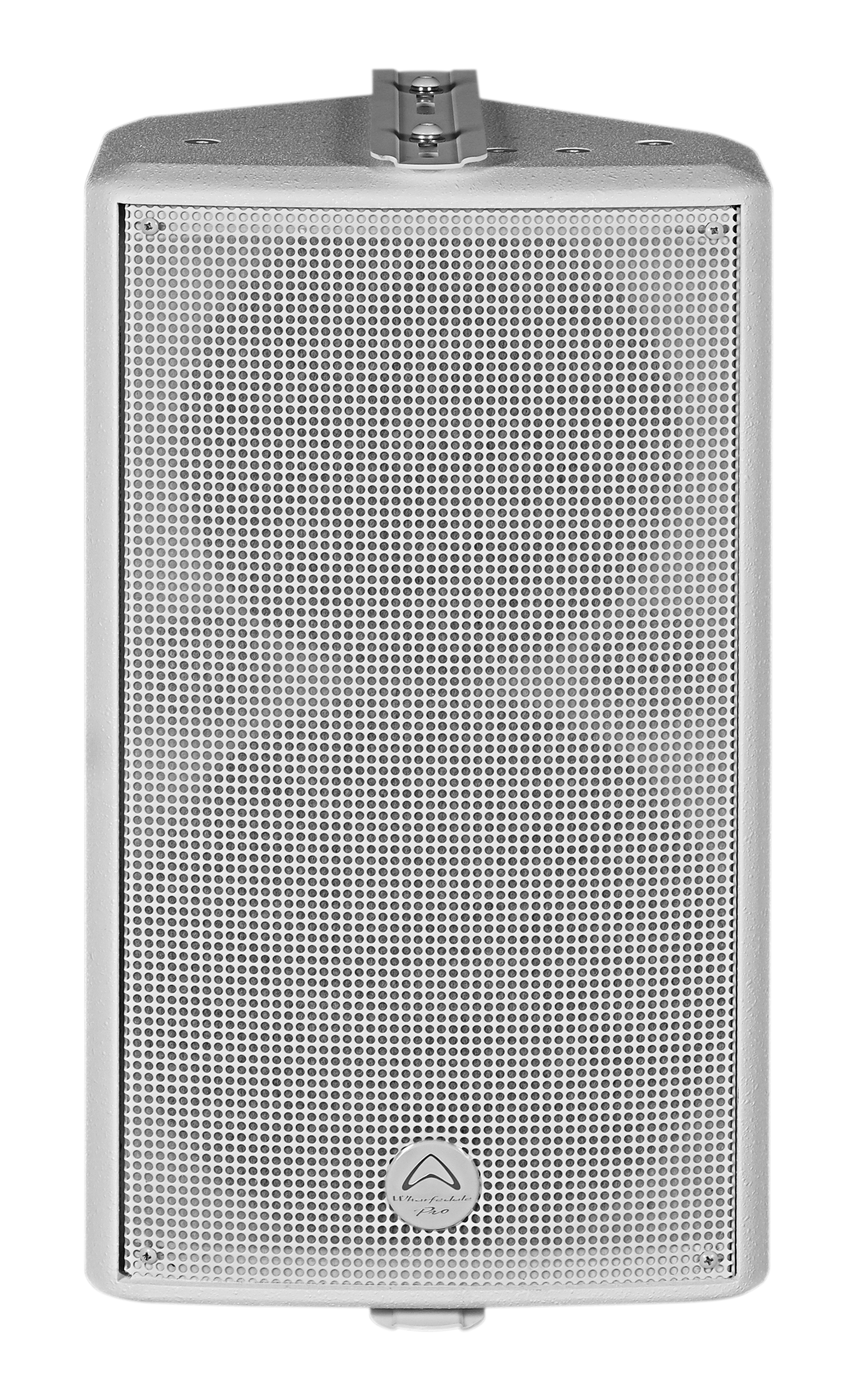

  • Available in Black and White


Model Name SI-10X
System Type Passive
Configuration Two-way
Freq Response (+/-3 dB) 60 Hz – 20 KHz
Freq Range (-10 dB) 55 Hz – 20 KHz
Sensitivity (2.83 v / 1 m) 93 dB
Calculated Max SPL @1 m 121 dB
System Impedance 8 Ω
LF Transducer
Size 254 mm / 10″
Voice coil Size  38.9 mm / 1.5″
Rated Impedance 8 Ω
LF Power (re:AES2-2012)
HF Transducer
HF Driver Type Compression Driver
Voice coil Size 44 mm / 1.75″
Exit Size 25 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF (re:AES2-2012) 40 W
Nominal Coverage 70˚ x 70˚
Power
Continuous Power 200 W
Programme Power 400 W
Peak Power 800 W
Crossover frequency 2.5 KHz

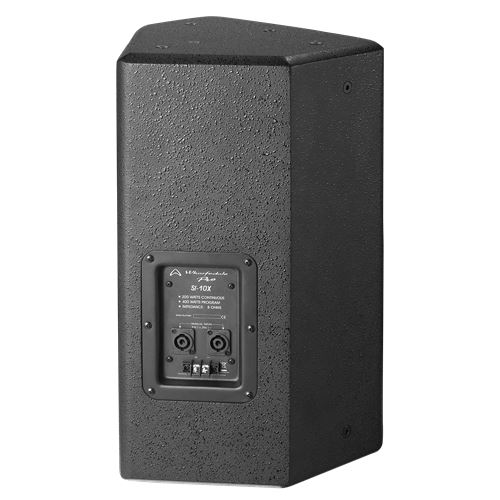

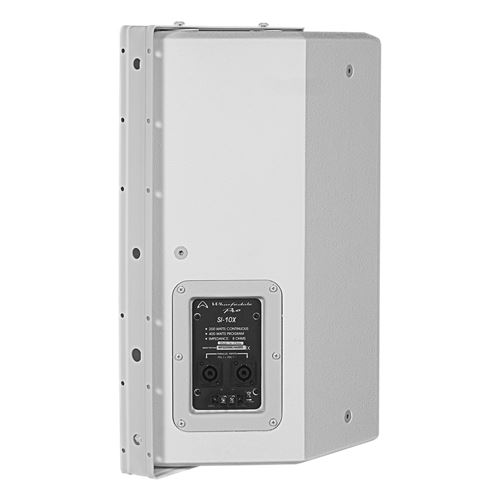

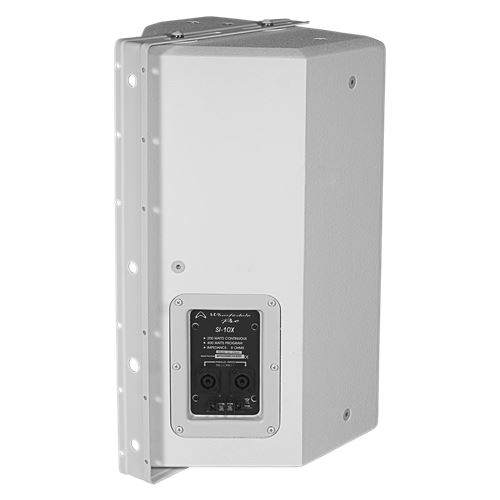

Input Connector 2 x NL4 +
Barrier Strip
Hardware
Rigging 20 x M8 Points
+ Wall Bracket
Pole Mount No
Enclosure
Enclosure Material MDF
Finish Black or White
Grille Material & Finish 1.2 mm Steel
Dimensions – Unpacked
Height 512 mm / 20.2″
Width Front 294 mm / 11.58″
Width Rear 294 mm / 11.58″
Depth 310 mm / 12.2″
Dimensions – Packed
Height 580 mm / 22.83″
Width Front 348 mm / 13.7″
Width Rear 348 mm / 13.7″
Depth 358 mm / 14.09″
Weight
Net Weight 13.6 kg / 29.9 lbs
Gross Weight 17 kg / 37.4 lbs
