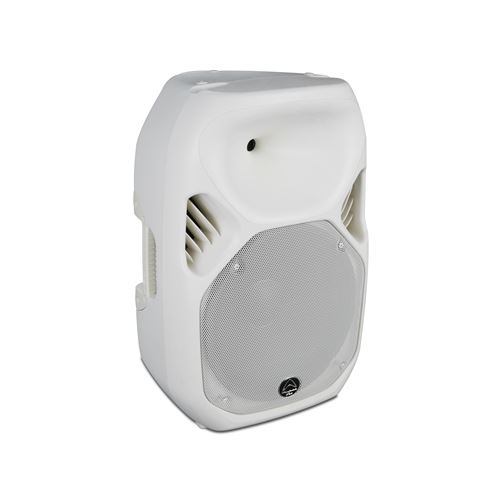

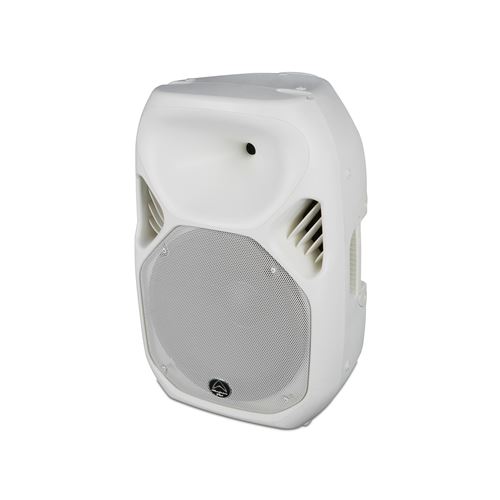

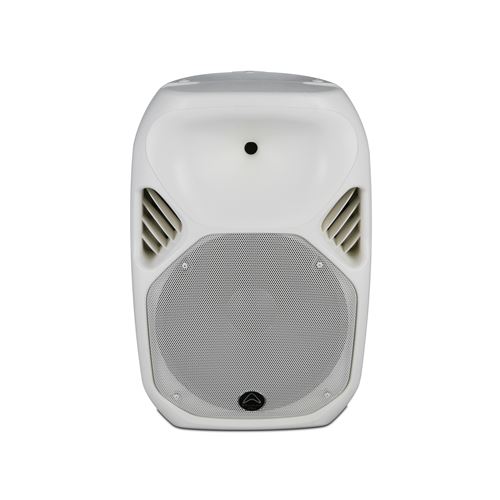

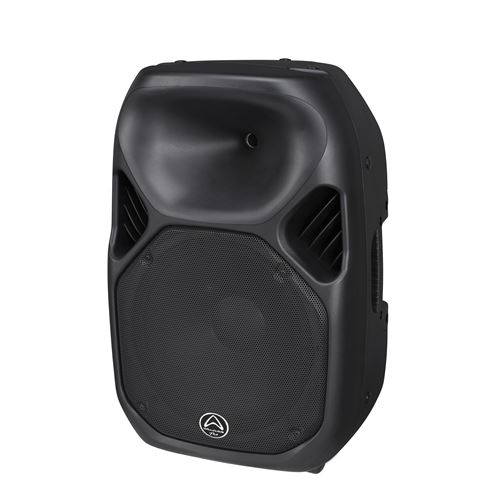

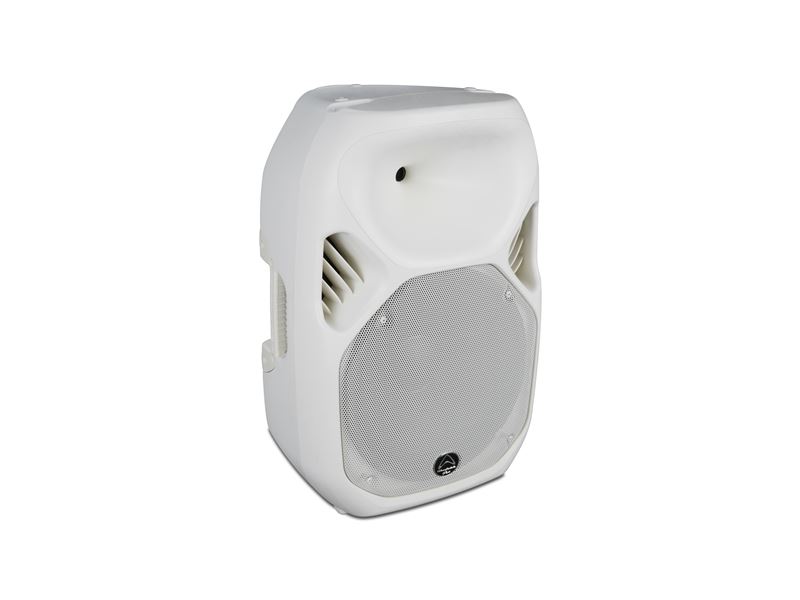

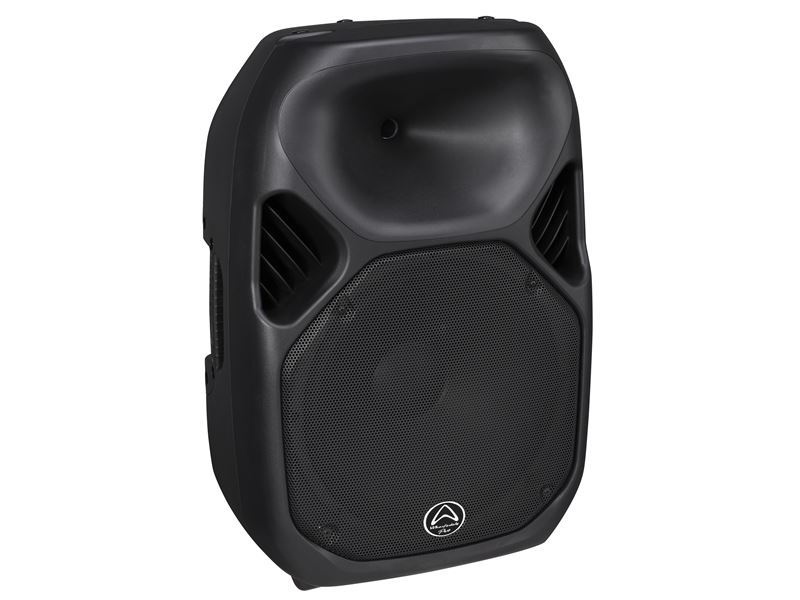

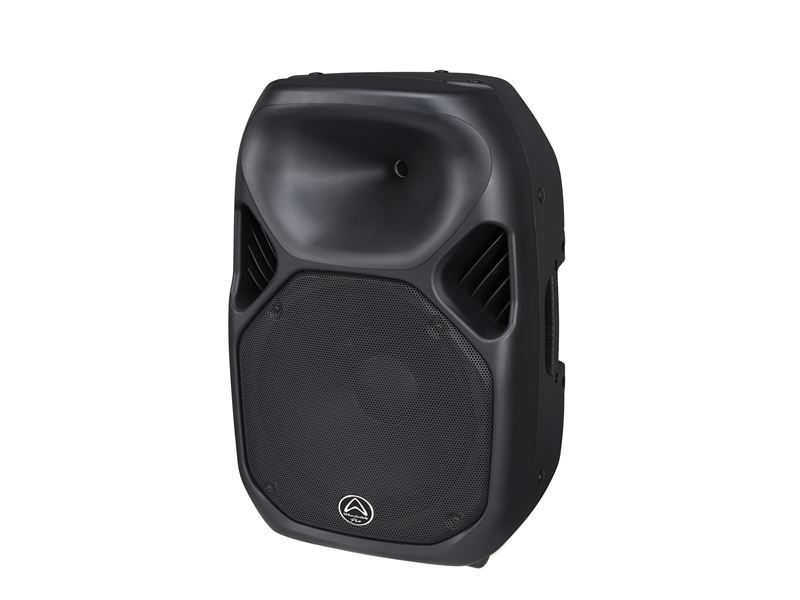

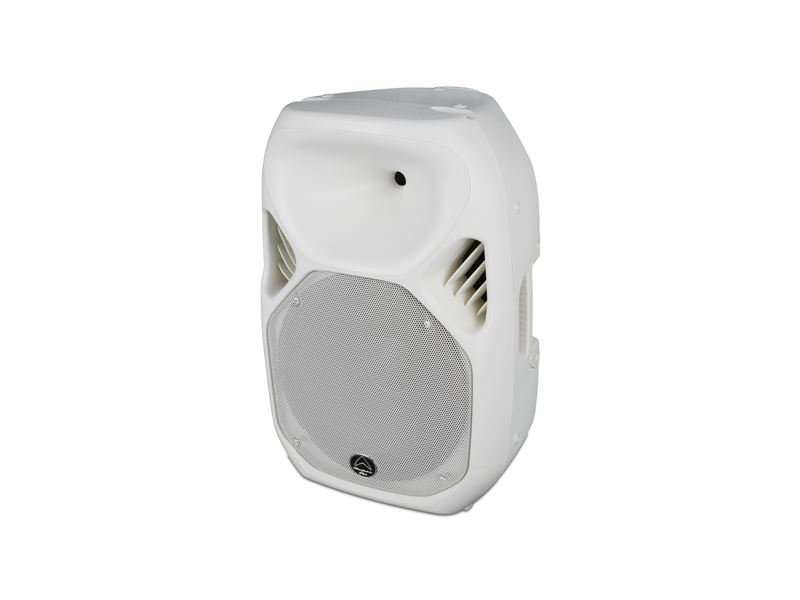

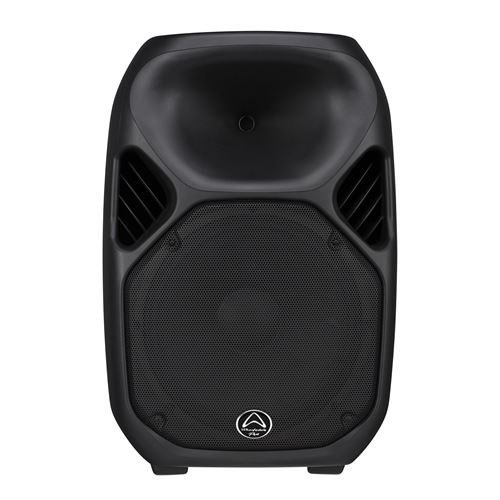

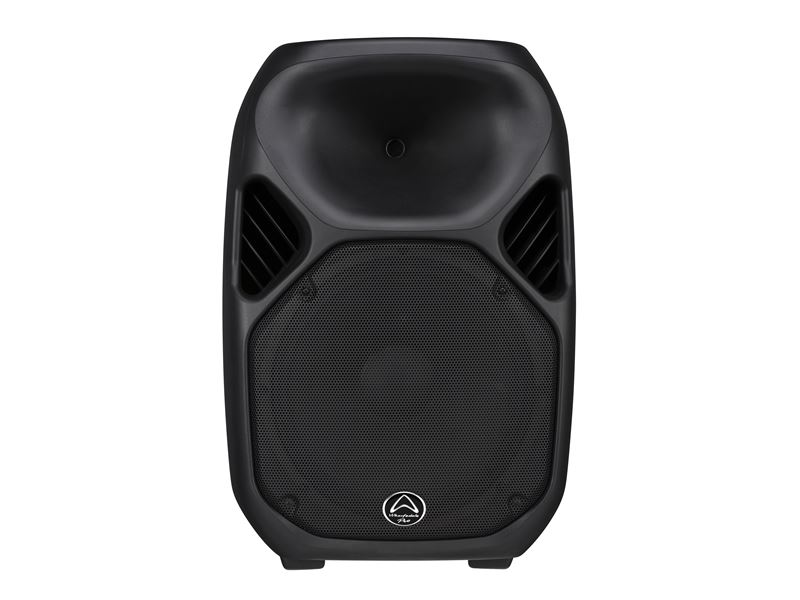

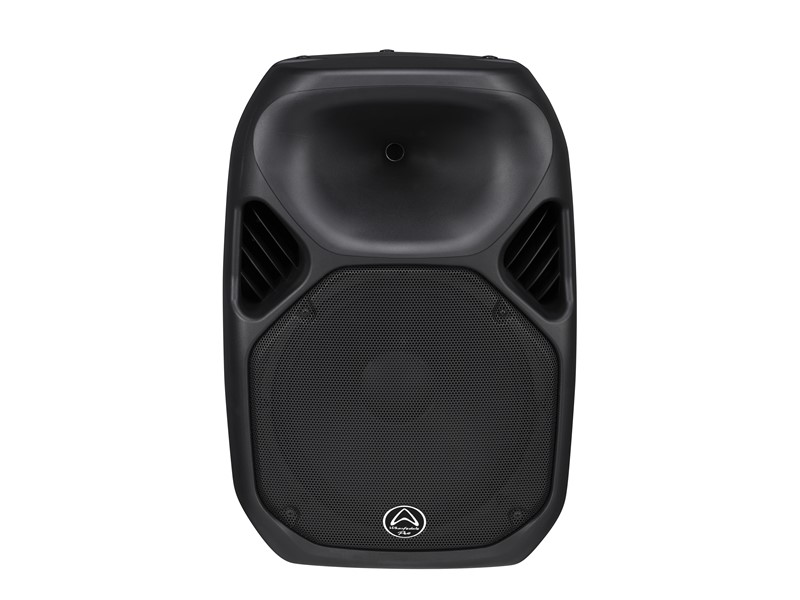

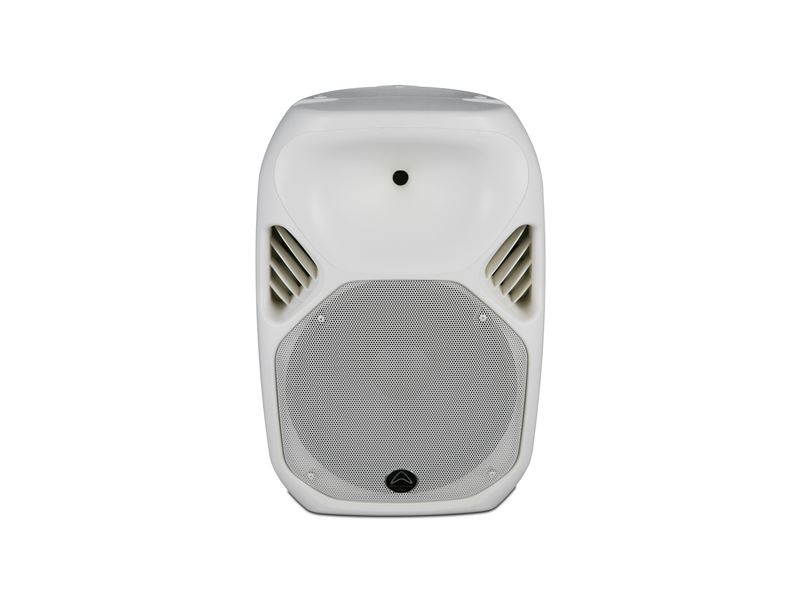

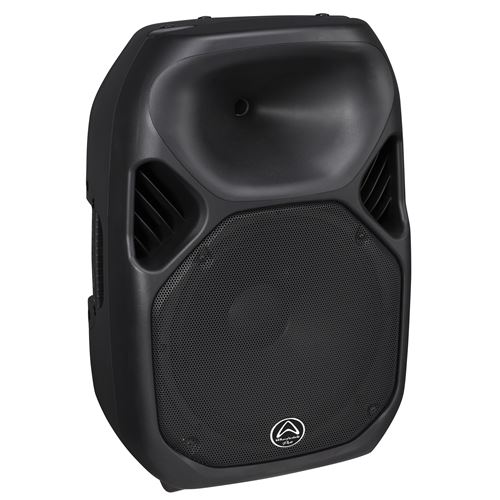

WHARFEDALE PRO Titan Series 400 Watts RMS 15" 2-Way Passive Loudspeaker

TITAN-X15

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






TITAN X15

400 watts
AES (RMS)
  • 15″ passive
  • 1.75″ HF compression driver
  • 3.0″ LF voice coil
  • 400 watts AES (RMS)
  • 800 watts Programme
  • 1600 watts Peak
  • 129 dB Max SPL @ 1 meter

Titan™ Series --- VERSATILE LIGHTWEIGHT PA SPEAKERS, DURABLE FOR INDOORS AND OUT

For many years the name ‘Titan’ has become the benchmark for portable and versatile loudspeakers. Titans are used day in, night out around the world in almost every audio environment imaginable.Available in active or passive, black or white, Titans deliver high quality audio with peace of mind reliability.

Designed to perform in portable and fixed installation applications alike Titans, with their ultra-lightweight composite enclosure, offer a range of mounting options including tripod floor stands, wall mounting brackets or even on their side as a floor monitor.

Titans use state of the art, gas assist injection moulding technology, plus an internal laminar flow rib pattern, increasing rigidity and reducing its weight compared with standard injection moulded enclosures.

Although the product weight and rubberised handles are perfect for the mobile musician, this technology also lends itself to installations where weight is an issue, not to mention that the polypropylene material and moisture proof woofers can withstand extreme outdoor conditions.

  • 8″, 12″ and 15″ Plastic, passive loudspeakers
  • IP54 Certified
  • Installation, DJs, bands and performance
  • Wharfedale Pro drivers
  • Portable and powerful
  • M8 rigging points
  • Optional wall brackets
  • Optional tour bags
  • Versatile !


Model Name Titan-X15
System Type Passive
Configuration 15″ 2-way
Frequency Response (+/-3 dB) 55 Hz-20 KHz
Frequency Range (-10 dB) 40 Hz-20 KHz
Sensitivity (2.83 v / 1 m) 97 dB
Calculated Maximum SPL @1 m 129 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 381 mm / 15″
Voice Coil Size  75 mm / 3.0″
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 400 w
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 44 mm / 1.75”
Exit Size 25 mm / 1”
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 40 w
Nominal Coverage (H x V) Hybrid Symmetry Horn 100°x80°
Power
System Power AES (RMS) 400 w
System Programme Power  800 w
System Peak Power  1600 w
Crossover frequency 2.7 KHz

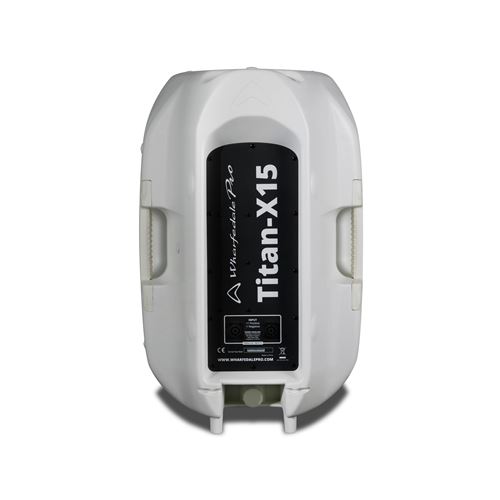

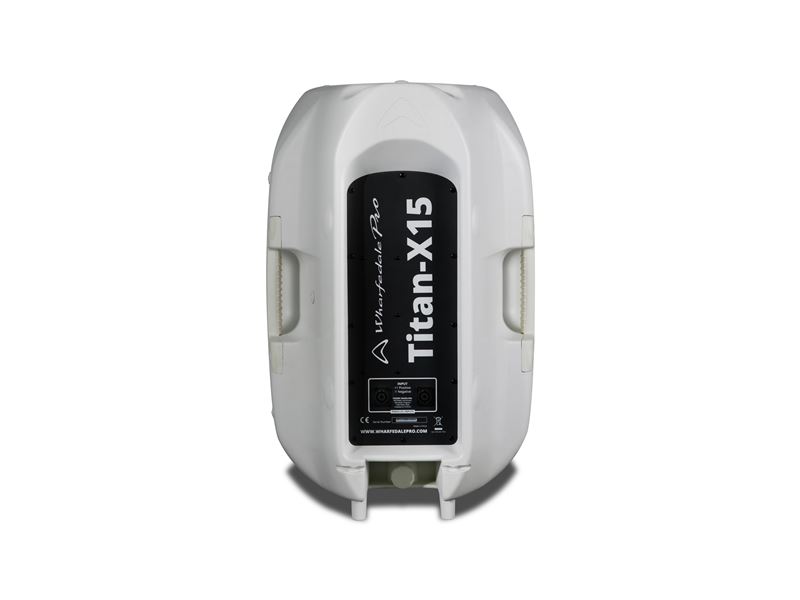

Input Connector 2 x NL4 (speakON compatible)
Hardware
Pole Mount 35 mm with lock screw
Handles 2 on sides
Mounting points M8 * 10
Enclosure
Enclosure Material Trapezoidal / Polypropylene
Finish Black / white
Grille Material & Finish 1.2 steel
Dimensions – Unpacked
Height 728.5 mm / 28.7″
Width Front 480.6 mm / 18.9″
Width Rear 480.6 mm / 18.9″
Depth 395.6 mm / 15.6″
Dimensions – Packed
Height 830 mm / 32.7″
Width Front 514 mm / 20.2″
Width Rear 514 mm / 20.2″
Depth 489 mm / 19.3″
Weight
Net Weight (kg / lbs) 22.0 kg / 48.4 lbs
Gross Weight (kg / lbs) 26.8 kg / 59.0 lbs
