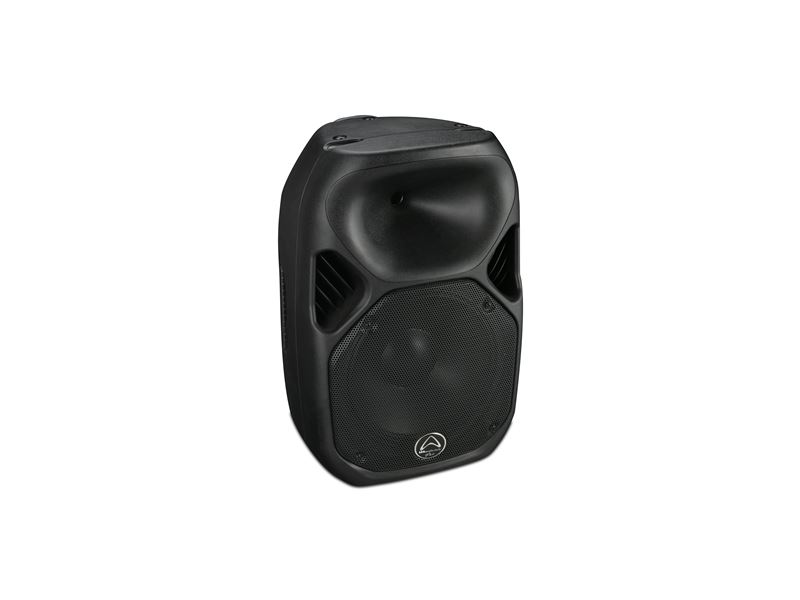

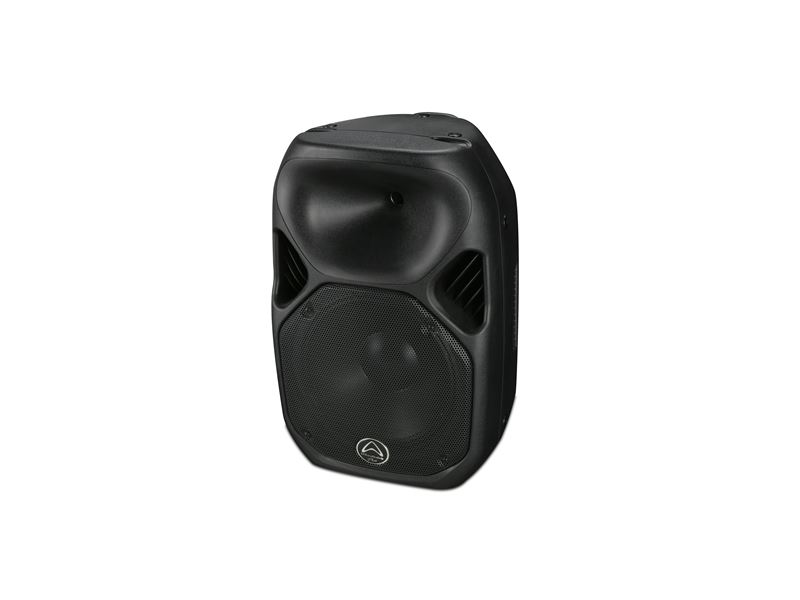

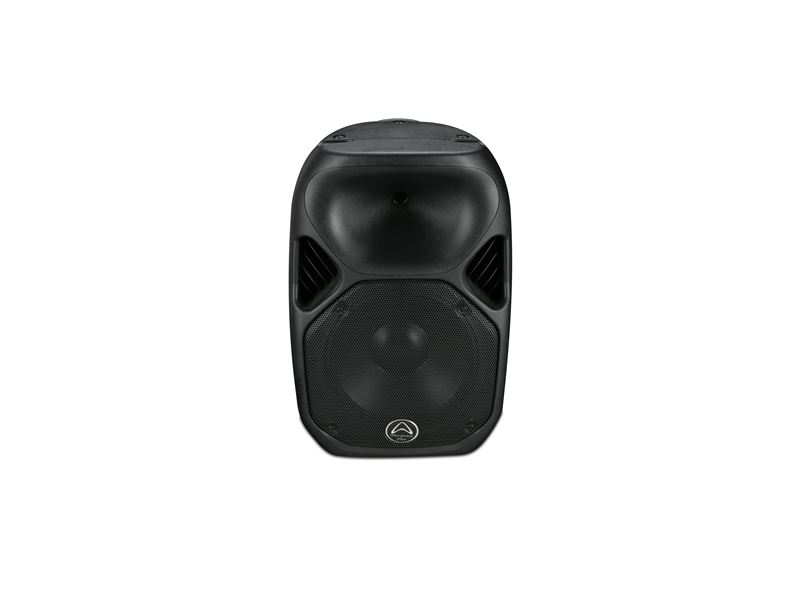

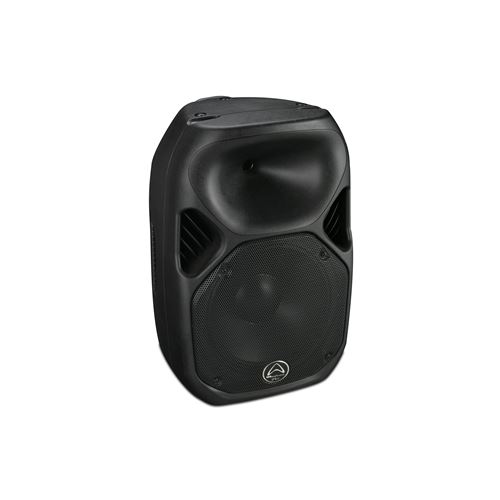

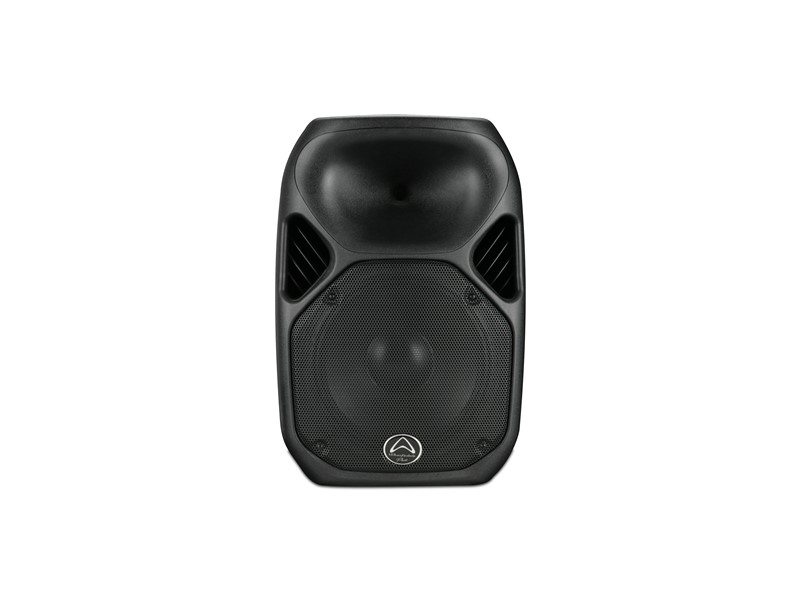

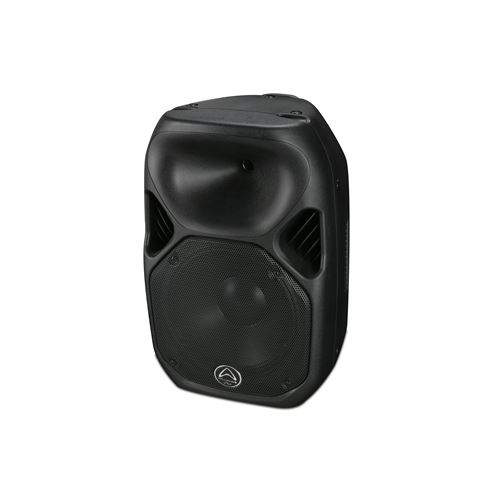

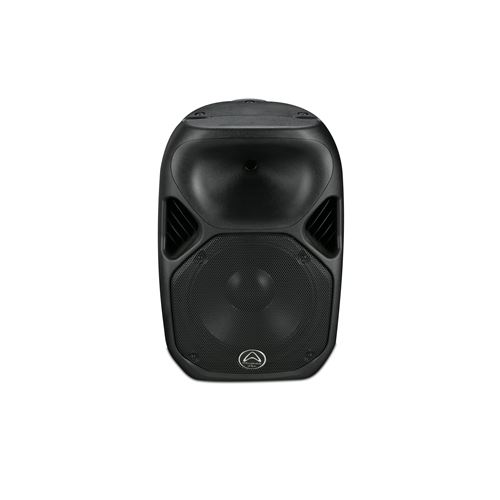

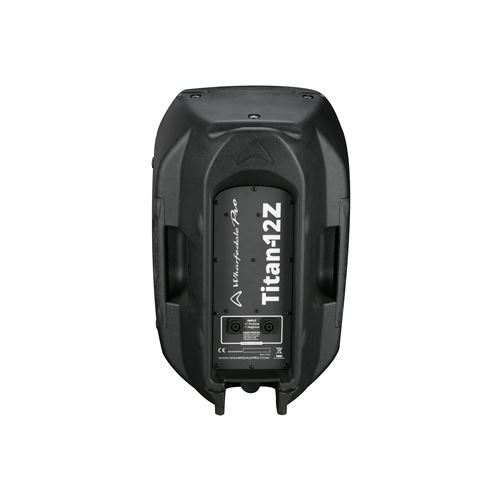

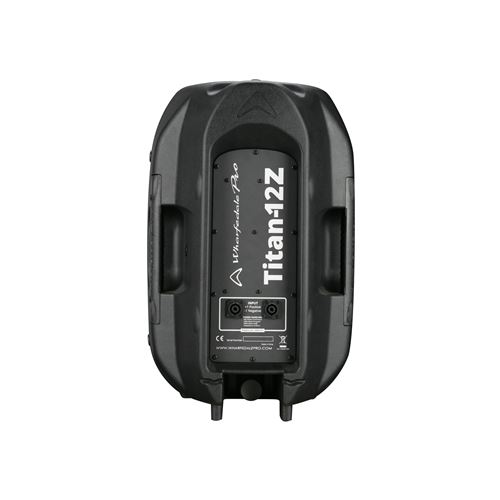

WHARFEDALE PRO Titan Series 500 Watts RMS 12" 2-Way Passive Loudspeaker

TITAN-12Z

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






TITAN 12Z

500 watts
AES (RMS)
  • 12″ passive
  • 1.75″ HF compression driver
  • 3.0″ LF voice coil
  • 500 watts AES (RMS)
  • 1000 watts Programme
  • 2000 watts Peak
  • 132 dB Max SPL @ 1 meter

Titan™ Series --- VERSATILE LIGHTWEIGHT PA SPEAKERS, DURABLE FOR INDOORS AND OUT

For many years the name ‘Titan’ has become the benchmark for portable and versatile loudspeakers. Titans are used day in, night out around the world in almost every audio environment imaginable.Available in active or passive, black or white, Titans deliver high quality audio with peace of mind reliability.

Designed to perform in portable and fixed installation applications alike Titans, with their ultra-lightweight composite enclosure, offer a range of mounting options including tripod floor stands, wall mounting brackets or even on their side as a floor monitor.

Titans use state of the art, gas assist injection moulding technology, plus an internal laminar flow rib pattern, increasing rigidity and reducing its weight compared with standard injection moulded enclosures.

Although the product weight and rubberised handles are perfect for the mobile musician, this technology also lends itself to installations where weight is an issue, not to mention that the polypropylene material and moisture proof woofers can withstand extreme outdoor conditions.

  • 8″, 12″ and 15″ Plastic, passive loudspeakers
  • IP54 Certified
  • Installation, DJs, bands and performance
  • Wharfedale Pro drivers
  • Portable and powerful
  • M8 rigging points
  • Optional wall brackets
  • Optional tour bags
  • Versatile !


Model Name Titan-12Z
System Type Passive
Configuration 12” 2-way
Frequency Response (+/-3 dB) 55 Hz-20 KHz
Frequency Range (-10 dB) 50 Hz-20 KHz
Sensitivity (2.83 v / 1 m) 99 dB
Calculated Maximum SPL @1 m 132 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 305 mm / 12’’
Voice Coil Size  75 mm / 3.0’’
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 500 w
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 44 mm / 1.75″
Exit Size 25 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 40 w
Nominal Coverage (H x V) Hybrid Symmetry Horn 100°x80°
Power
System Power AES (RMS) 500 w
System Programme Power  1000 w
System Peak Power  2000w
Crossover frequency 2.1 KHz

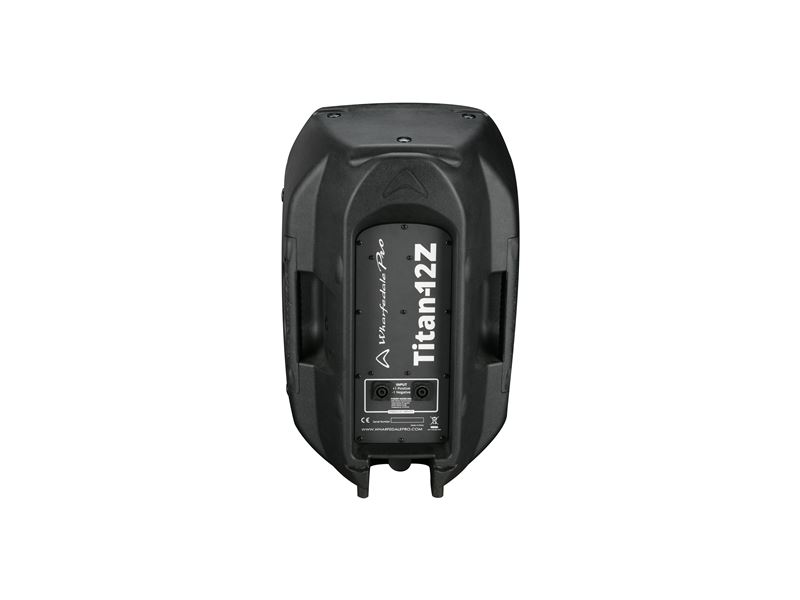

Input Connector 2 x NL4 (speakON compatible)
Hardware
Pole Mount 35 mm with lock screw
Handles 2 on sides
Mounting points M8 * 10
Enclosure
Enclosure Material Trapezoidal / Polypropylene
Finish Black / white
Grille Material & Finish 1.2 steel
Dimensions – Unpacked
Height 582.7 mm /  22.9”
Width Front 384.6 mm / 15.1″
Width Rear 384.6 mm / 15.1″
Depth 318.6 mm / 12.5”
Dimensions – Packed
Height 663 mm / 26.1″
Width Front 435 mm / 17.1″
Width Rear 435 mm / 17.1″
Depth 408 mm / 16.1″
Weight
Net Weight (kg / lbs) 15.7 kg / 34.5 lbs
Gross Weight (kg / lbs) 18.8 kg / 41.2 lbs
