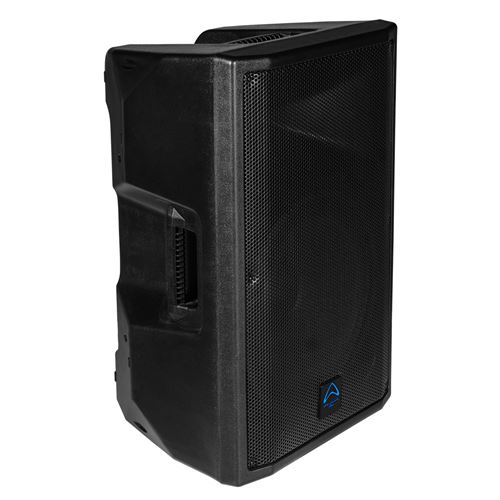

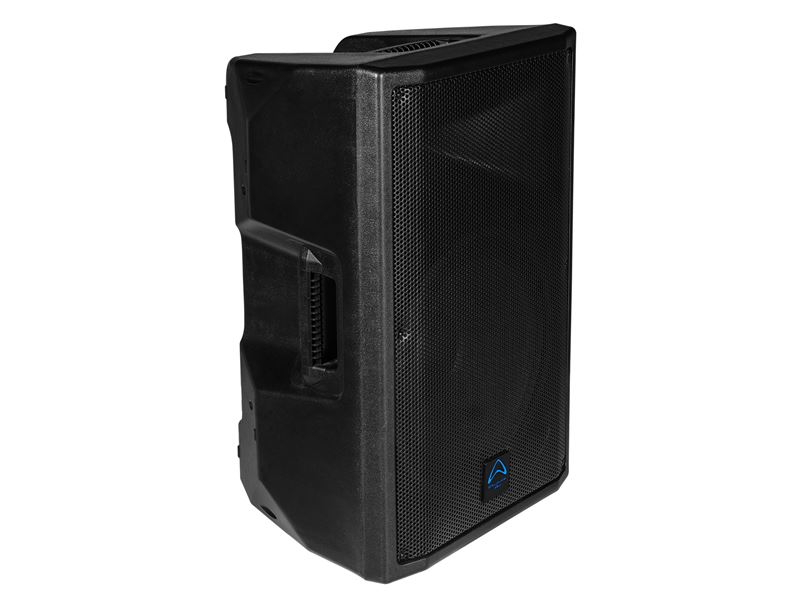

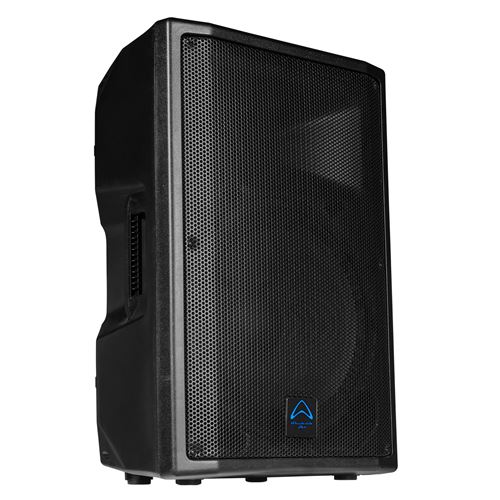

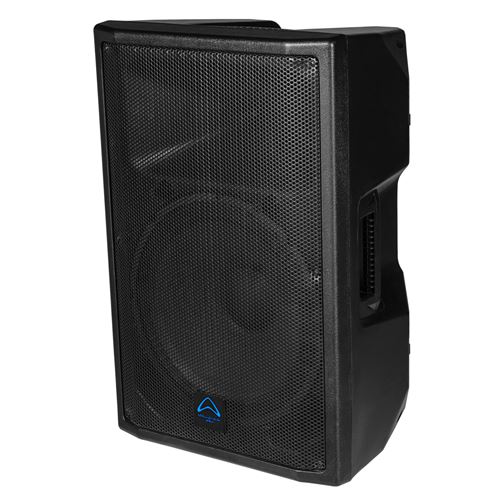

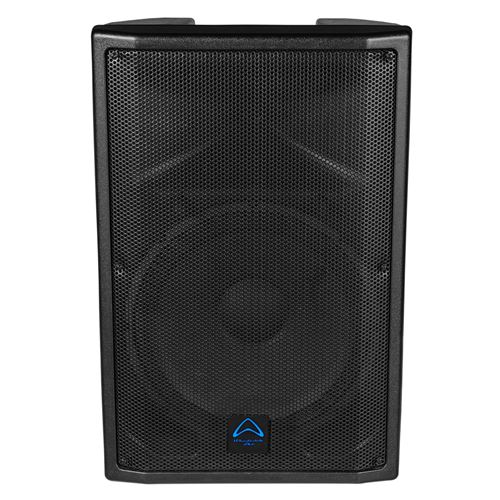

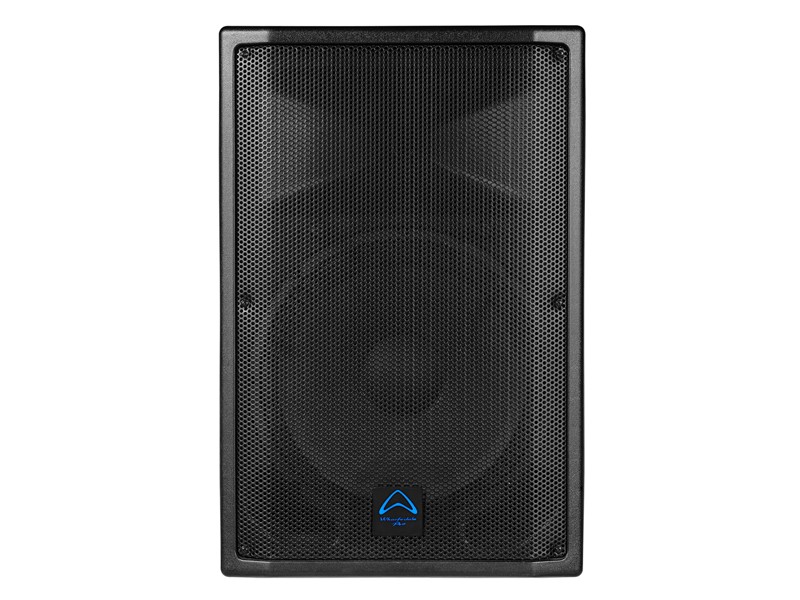

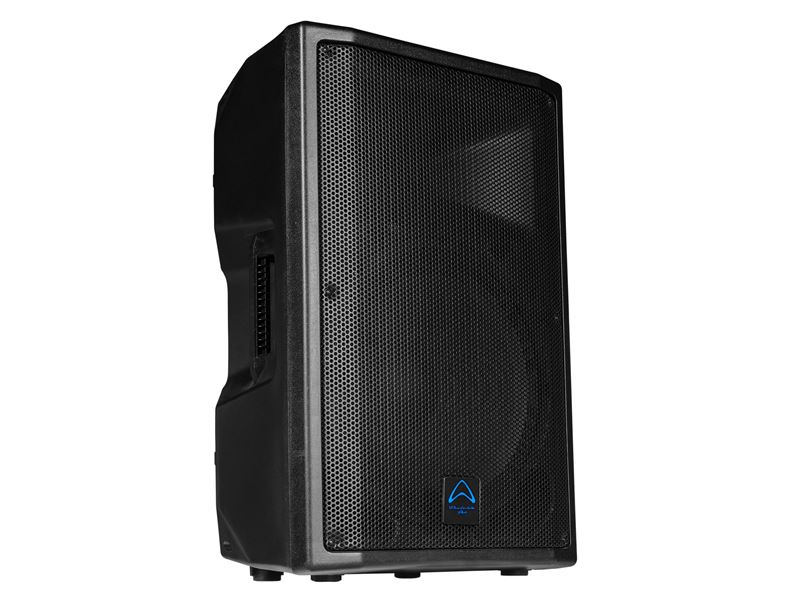

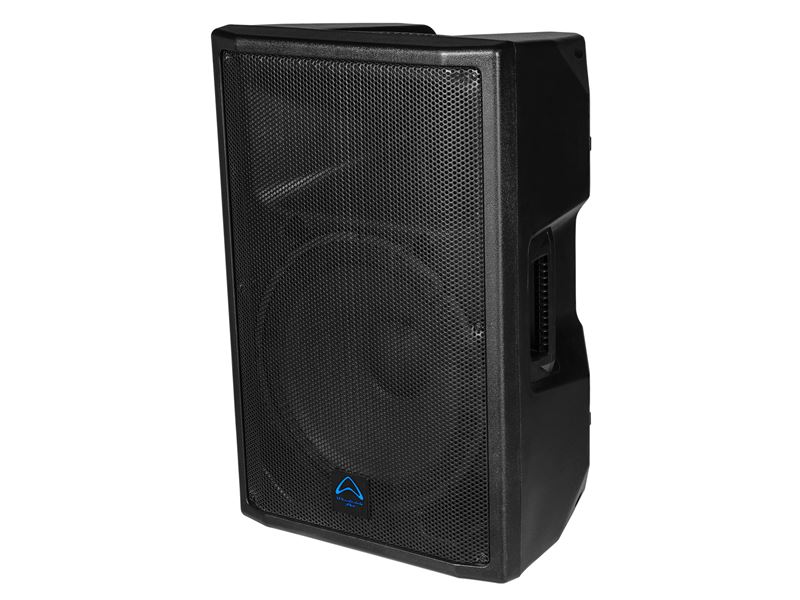

WHARFEDALE PRO Tourus Series 450 Watts RMS 15" 2-Way Bi-Amplified Active Loudspeaker with Bluetooth & USB Input

TOURUS-AX15-MBT

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






TOURUS-AX15-MBT

450 watts
Continuous
  • 15″ Bi-amplified active loudspeaker
  • 1.75″ HF compression driver
  • 450 w Continuous
  • 900 w Peak
  • Bluetooth & USB Input

Wharfedale Pro announce a new series of plastic, active loudspeakers delivering power, value and versatility. Introducing TOURUS.

Positioned beneath the well established TITAN and the flagship TYPHON series, the new TOURUS series are affordable, powerful and versatile. With a 12” and a 15” version available and with “MBT” models featuring USB mp3 playback and Bluetooth connectivity with TWS stereo link mode, the new series is for anyone needing big power and features on a compact budget.

Custom WP drivers have been selected to ensure that this affordable series have the power and timbre expected from a Wharfedale Pro loudspeaker. In addition, the amplification stages deploy both Class D (LF) and Class AB (HF) to bring power and value to this new series.

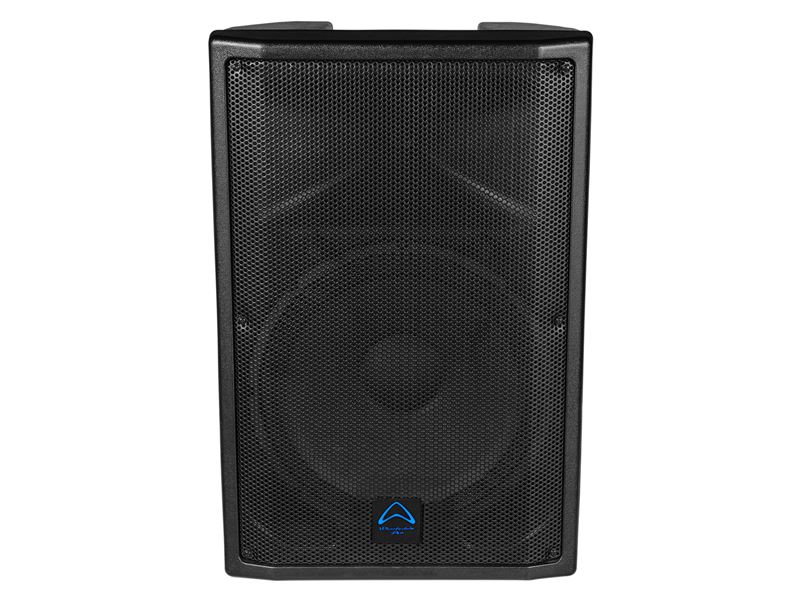

With full steel grilles, multiple handles and 4 x M8 rigging points, Tourus is well suited for installations and for hard work on the road.

A new illuminated Wharfedale Pro logo badge is also proudly shown on the front so that Tourus looks as good as it sounds.

  • 8″, 12″ and 15″ Plastic, active loudspeakers
  • On stage, DJ, bands and performance
  • Bluetooth, TWS models with MP3 player
  • Bi-amplified
  • Wharfedale Pro drivers
  • Portable and powerful
  • Huge power output
  • RCA, XLR and Jack inputs
  • M8 rigging points
  • Optional soft covers


Model Name TOURUS-AX15-MBT
System Type Active 15” 2-way Bi-Amplified
Frequency Response (+/-3 dB) 50-20 KHz
Sensitivity @ 1 w / 1 meter 97 dB
Maximum SPL (peak @ 1 meter) 130 dB
Low Frequency Transducer
Size (mm / inches) 381 mm / 15”
Coil Size (mm / inches) 50.8 mm / 2.0”
Impedance 4 Ω
High Frequency Transducer
Type Compression Driver
Coil Size (mm / inches) 44.5 mm / 1.75”
Exit Size (mm / inches) 25 mm / 1”
Diaphragm Material Titanium
Impedance 8 Ω
High Frequency Coverage (H x V) 90° x 60°
Amplifiers HF Amp Class AB : LF Amp Class D
Low-Frequency Power Amplifier 350 w Continuous / 700 w Peak
High- Frequency Power Amplifier 100 w Continuous / 200 w Peak
Electronic Crossover
Crossover Frequency HI PASS 2.4 KHz LOW PASS 2.4 KHz
Controls
Equalization +/-12 dB Gain for bass and treble
Amplifier Protection
Power On Protection Power switch on / off mute
Thermal Protection Amplifier shutdown, auto reset
Driver, DC and Short Protection Yes
Limiter Indicator Red LED
Power Indicator Green LED

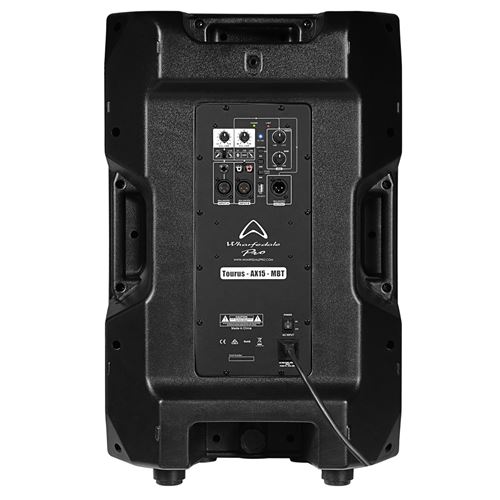

Input type Balanced / BT / USB

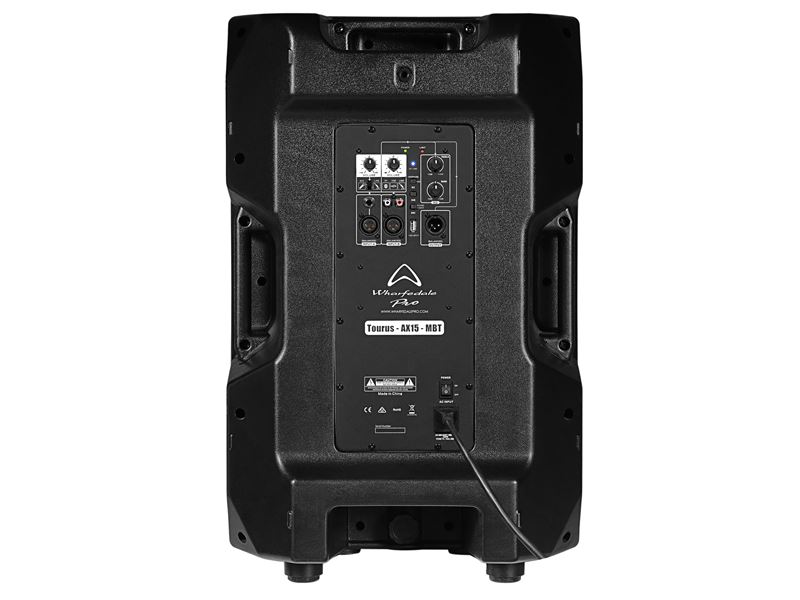

Input Connectors 2 x TRS JACK, 2 x RCA AND 2 x FEMALE XLR
Input Impedance 47 KΩ Balanced
Maximum Input Level 5 V
Line Input Sensitivity -10 dB
Mic Input Sensitivity -40 dB
Line Output Connector MALE XLR
AC Power details
Power Supply SMPS
AC Power Options 100 V – 120 V and 220 V – 240 V
Power On Indicator LED
Rigging / Bracket / Mounting Options 4 x M8

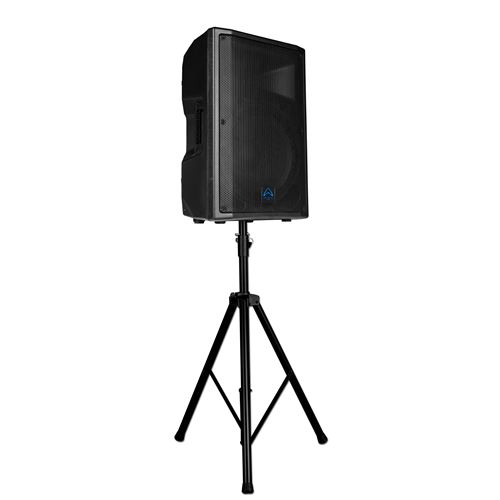

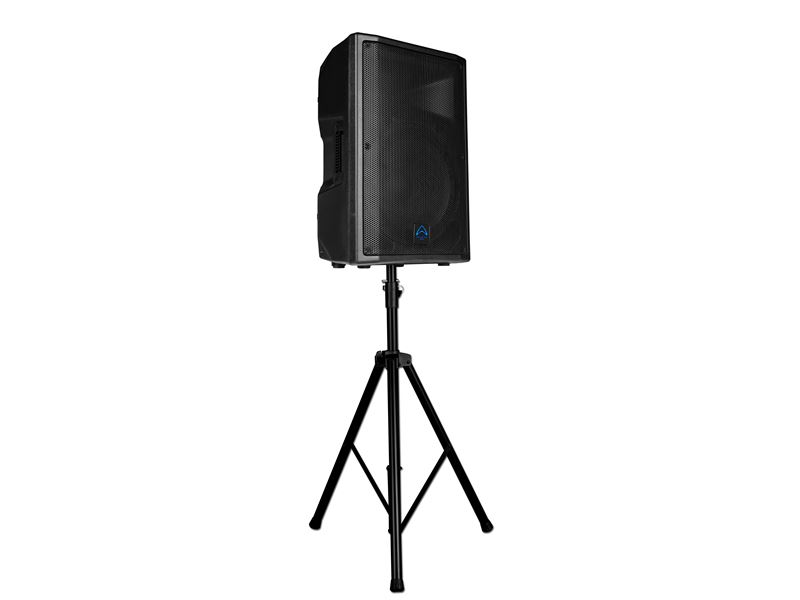

  35 mm Pole-mount with lock screw
  3 carry handles (one on each side,one on top)
  Optional wall-mount bracket (WPB-2)
Enclosure
Enclosure Material Injection Moulded Polypropylene
Colour black
Grille 1.2 mm steel
Dimensions (Unpacked)(mm / inches):
Height 693 mm / 27.3”
Width – Front 455 mm / 17.9”
Width – Rear 262 mm / 10.3″
Depth 401.8 mm / 15.1”
Dimensions (packed)(mm / inches):
Height 762 mm / 30.0”
Width 508 mm / 20.0”
Depth 425 mm / 16.7”
Weight
Net Weight (kg / lbs) 19.2 kg / 42.2 lbs
Gross Weight (kg / lbs) 22.0 kg / 48.4 lbs
