Neo HF drivers
Ferrite LF drivers
AES (RMS)
Peak power

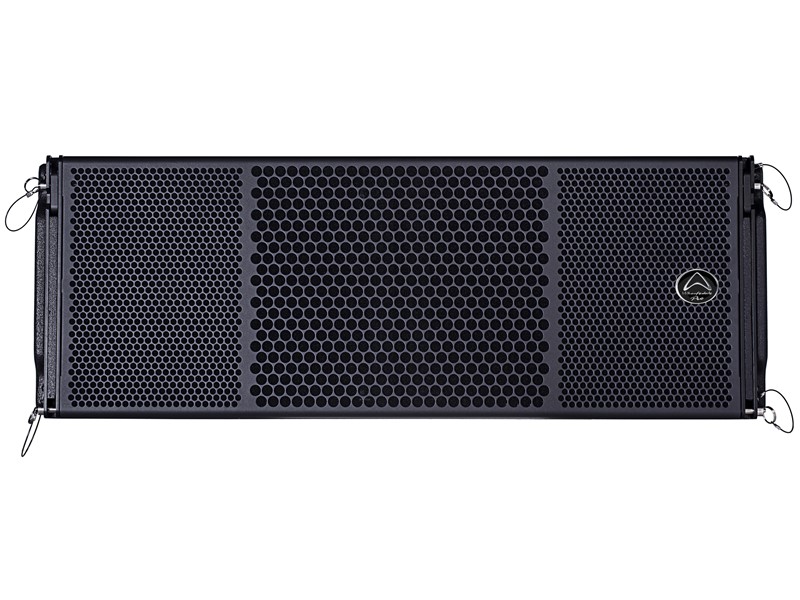

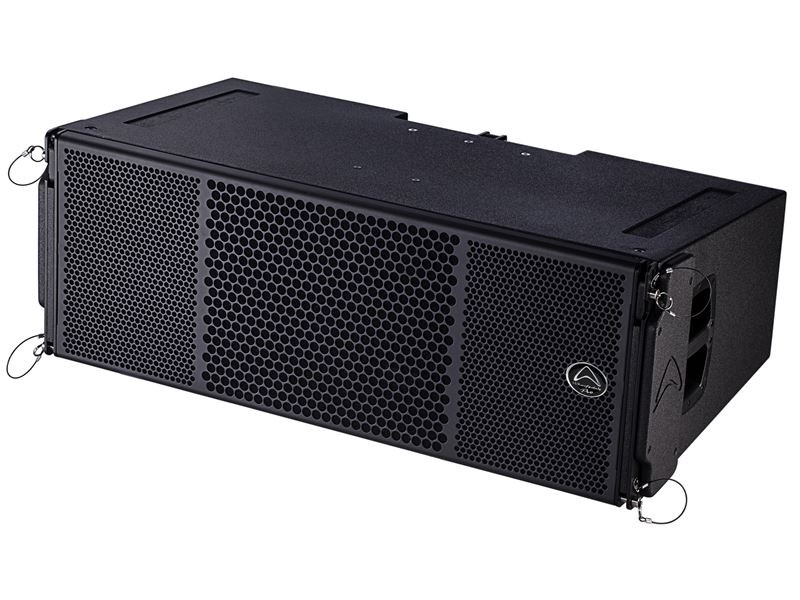

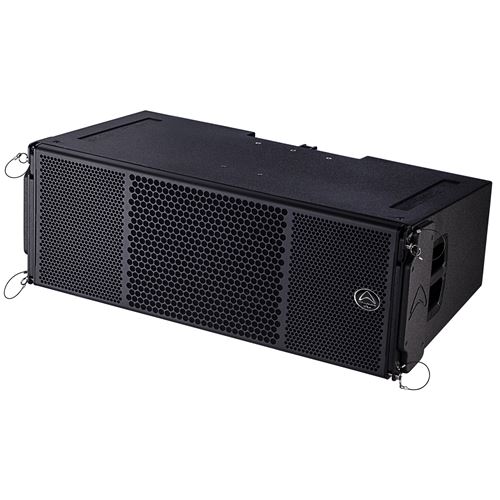

WLA-312X is an advanced three-way line array speaker system capable of handling vast amounts of power – while remaining sonically clear, precise and accurate. Rated at 1410 W AES (RMS) per cabinet and boasting highly efficient custom Wharfedale Pro drivers, the WLA-312X can deliver an astonishing 138 dB Max SPL @ 1 meter.
Custom WP drivers have been selected to ensure that this series not only has the power you would expect, but the three-way configuration brings a new sonic dimension and definition.

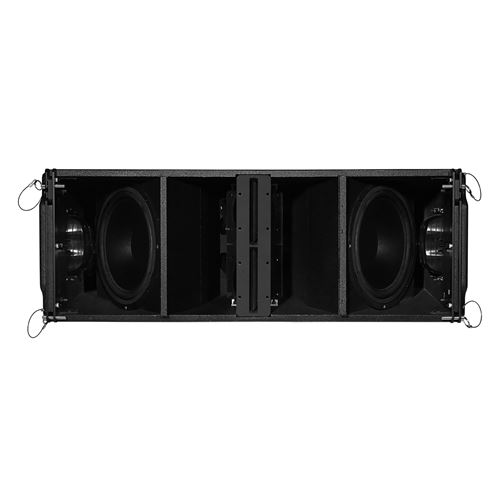

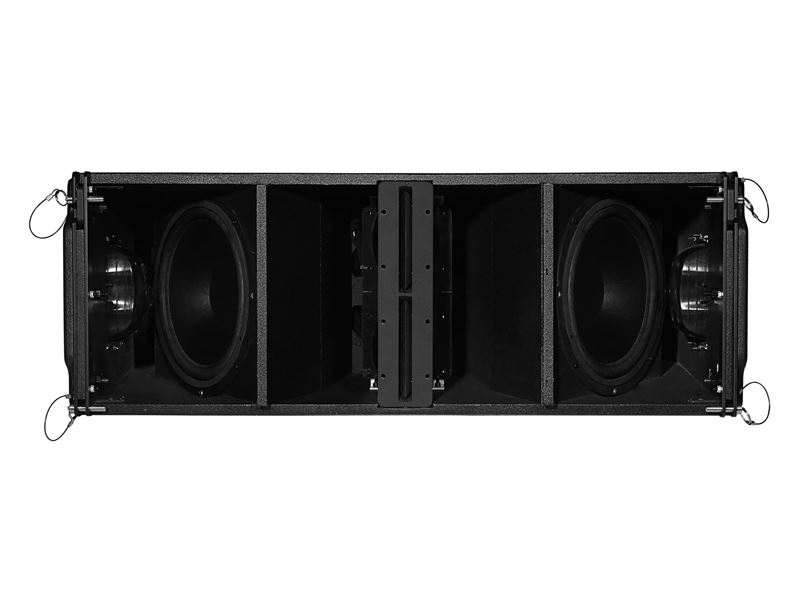

With dual 12” woofers, a single 10” midrange driver and dual 2.55” compression drivers, the WLA-312X has everything needed for large venue coverage. In addition, there is no need to fly subwoofers within the array – the WLA-312X has already got plenty of low-end punch.
The WLA-312X is designed to be controlled and tuned with either a Wharfedale Pro Versadrive signal processor or a DP-D series amplifier. Either of these DSP systems deliver full signal routing and processing to maximise the power and sonic effect of the WLA-312X array.

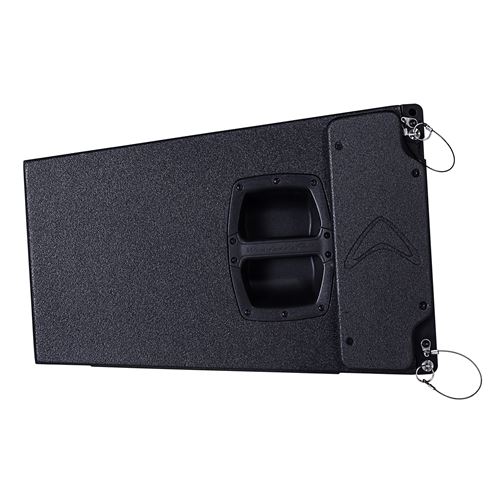

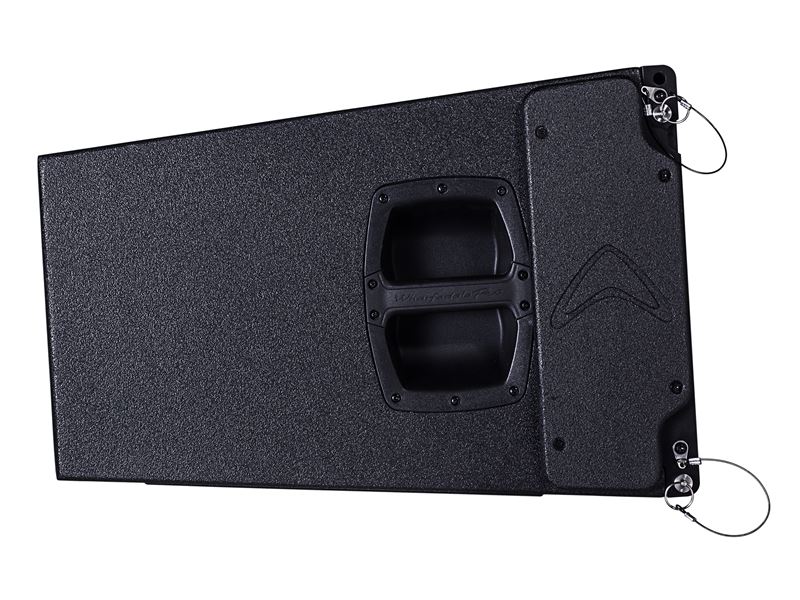

With full steel grilles, multiple handles and 3 fly frame rigging points, WLA-312X is well suited for touring and for hard work on the road.

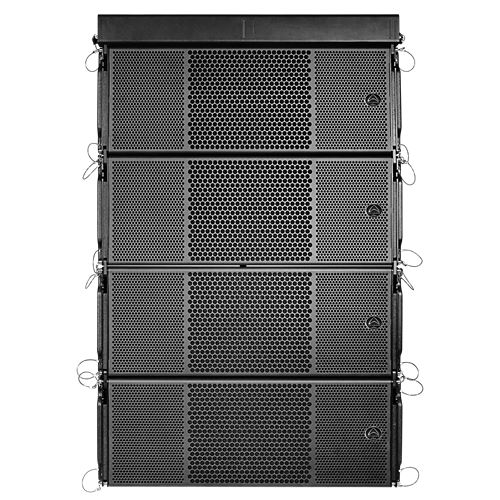

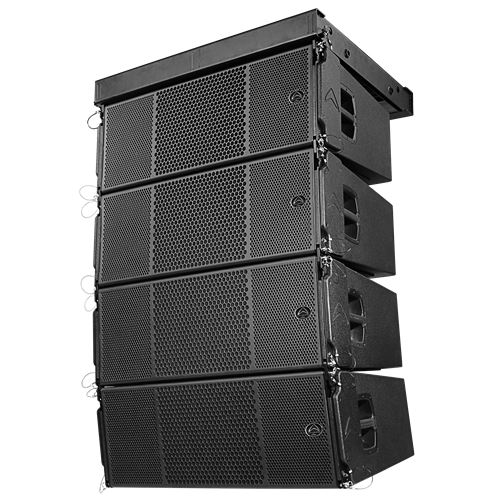

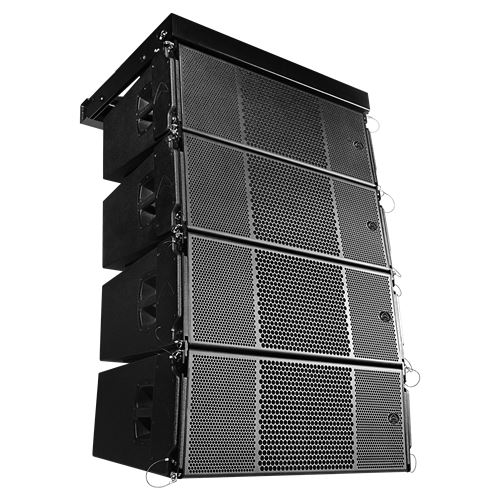

The accompanying WLA-312X Fly frame is solid! Constructed of A3 steel it can hold up to 900 kg (that’s up to 12 pcs of WLA-312X) with a safety factor of 12.
OPTIONAL FLY FRAME
The optional WLA-312X Fly frame is solid!
Constructed of A3 steel it can hold up to 900 kg (that’s up to 12 pcs of WLA-312X) with a safety factor of 12.
3-WAY CONFIGURATION
With dedicated components for each of the main bandwidths, 3-way systems bring enhanced frequency definition to the listening experience.
3-way systems bring a clarity and space that can only be experienced.
- Three-way line array element
- 2 x 12” LF drivers
- 1 x 10” Neo Midrange driver
- 2 x 2.55” Neo HF compression drivers
- Birch plywood construction
- 1410 watts AES (RMS)
- 2820 watts Programme
- 5640 watts Peak
- 16 ohms impedance
- Fly frame to support up to 12 elements (900 kg)
| Model Name | WLA-312X |
| System Type | Passive |
| Configuration | Three-way |
| Frequency Response (+/-3 dB) | 50-18 KHz |
| Frequency Range (-10 dB) | 40-20 KHz |
| Sensitivity 2.83 v / 1 Meter | HF:114 dB/MF:105 dB/LF:102 dB |
| Calculated Maximum SPL @ 1 Meter | HF:142 dB/MF:136 dB/LF:138 dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 313 mm / 12” |
| Voice Coil Size (mm / inches) | 75.5 mm / 3” |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| Rated Impedance | 2 x 8 Ω |
| LF Power re:AES2-2012 | 2 x 450 W |
| Mid Frequency Transducer | |
| Size (mm / inches) | 260 mm / 10” |
| Voice Coil Size (mm / inches) | 65 mm / 2.55” |
| MF Magnet Material | NdFeB |
| MF Frame Material | Aluminium |
| Rated Impedance | 16 Ω |
| MF Power re:AES2-2012 | 350 W |
| High Frequency Transducer | |
| HF Driver Type: | Compression Driver |
| Coil Size (mm / inches) | 65 mm / 2.55” |
| Exit Size (mm / inches) | 1.4″ |
| HF Magnet Material | NdFeB |
| Diaphragm Material | Titanium |
| Rated Impedance | 16 Ω (2 x 8 Ω) |
| HF Power re:AES2-2012 | 160 W (2 x 80 W) |
| Waveguide Type | square |
| Nominal Coverage (H x V) | 90H x 7.5V |
| Nominal Impedance | 16 Ω |
| Power | |
| System Power AES (RMS) (w) | HF:160 W/MF:350 W/LF:900 W |
| System Programme Power (w) | HF:320 W/MF:700 W/LF:1800 W |
| System Peak Power (w) | HF:640 W/MF:1400 W/LF:3600 W |
| Crossover frequency | 160 Hz / 1.2 KHz |

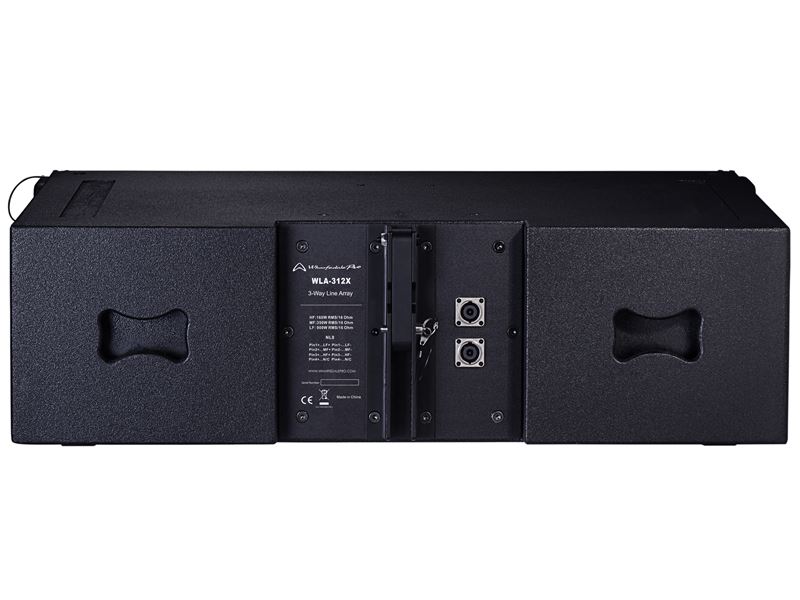

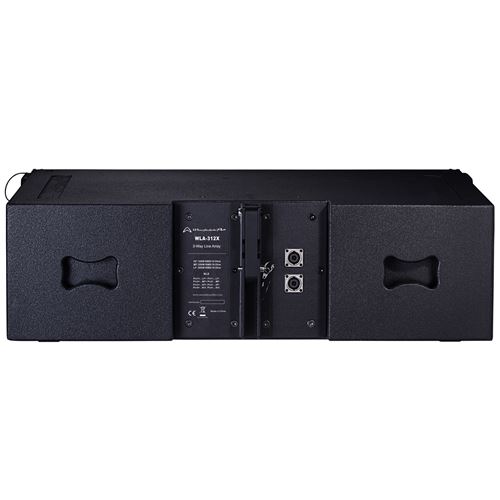

| Input Connector | 2 x Neutrik NL8MPR |
| Rigging | 3 points for rigging |
| Pole mount | No |
| Handles | Yes |
| Enclosure | |
| Cabinet type | Trapezoid |
| Enclosure Material and finish | 15 mm,18 mm plywood |
| Colour Options | black paint |
| Grille Material & Finish | steel |
| Dimensions – Unpacked | |
| Height | 370 mm |
| Width Front | 1030 mm |
| Width Rear | 279 mm |
| Depth | 550 mm |
| Dimensions – Packed | |
| Height | 1095 mm |
| Width Front | 480 mm |
| Width Rear | 480 mm |
| Depth | 650 mm |
| Weight | |
| Net Weight | 58 kg |
| Gross Weight | 62 kg |
