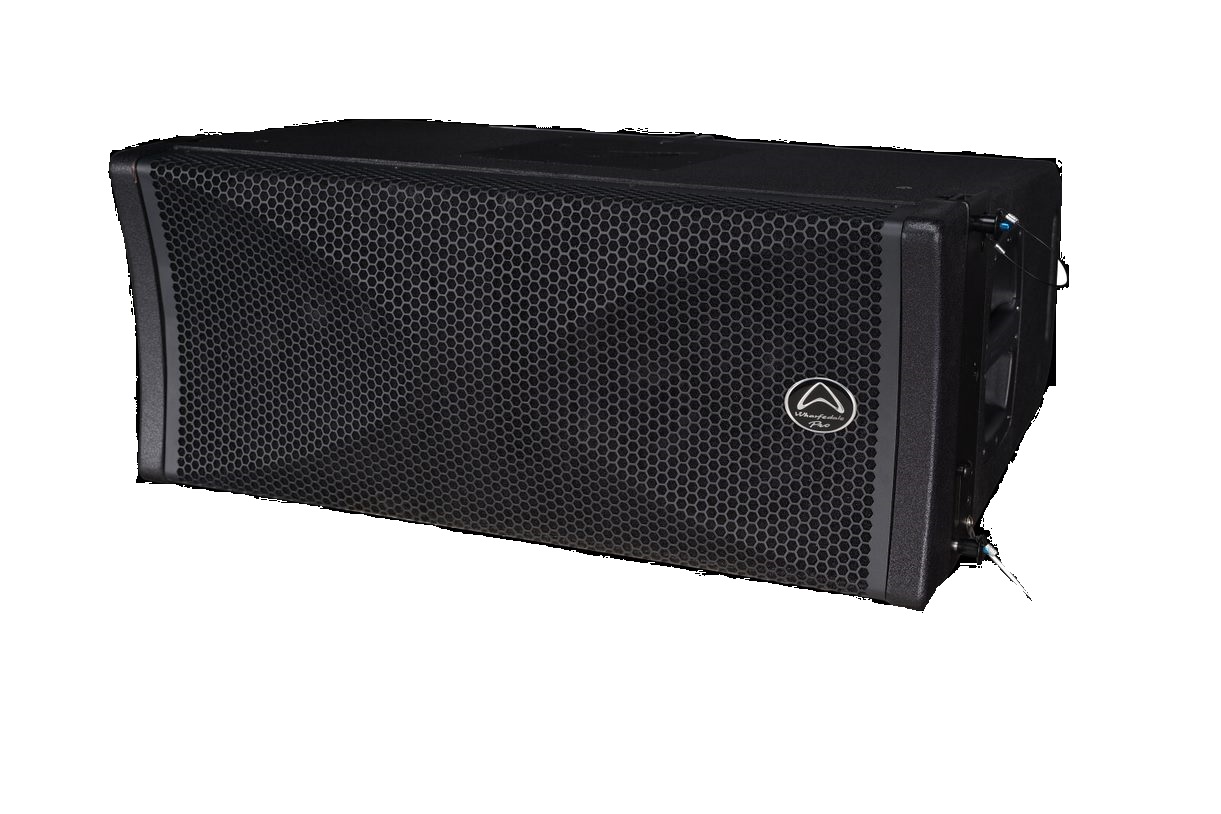

WLA-210X
- 2 x 10″ LF drivers
- 3″ Neodymium HF compression driver
- 138 dB Max SPL
- 15mm / 18mm Birch plywood construction
- Integral, side plate adjustable rigging system
- 100° x 10° dispersion
- 180 watts programme HF
- 1600 watts programme LF
- 16 Ω impedance
The WLA-210X line array system keeps the same design philosophies as the acclaimed WLA-25 and WLA-28 systems from Wharfedale Pro. Portable, powerful and versatile line array solutions which are ideal for both touring and fixed installation applications.
Each WLA-210X element uses a pair of custom 10” Wharfedale Pro high-power low-frequency drivers, while the high frequencies are handled by a premium 3.0” titanium diaphragm, neodymium magnet compression driver coupled to a 100° x 10° waveguide.
The waveguide exit extends nearly to the top and bottom of the enclosure to create a continuous acoustical source – resulting in greatly reduced destructive interaction within the array.

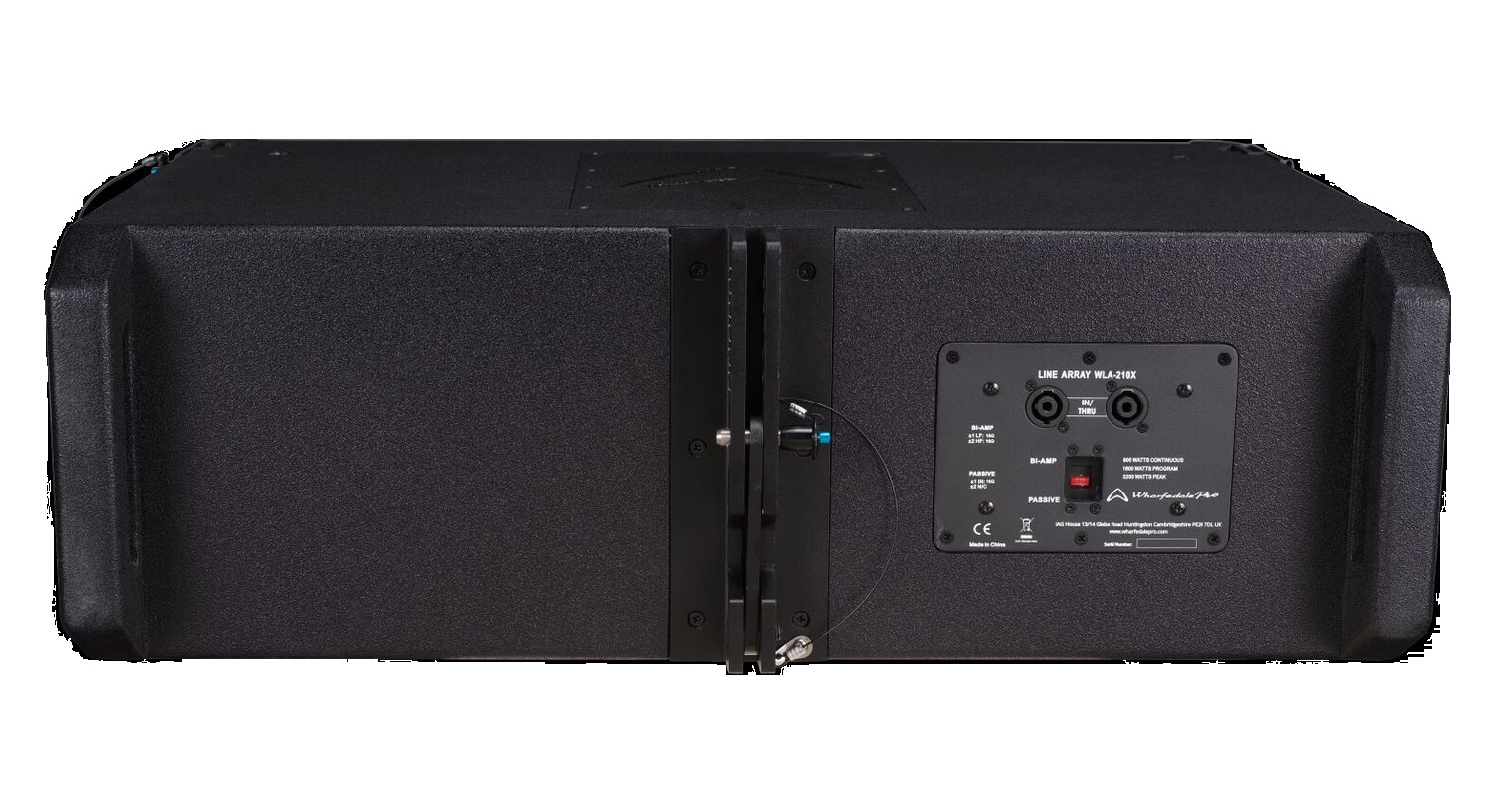

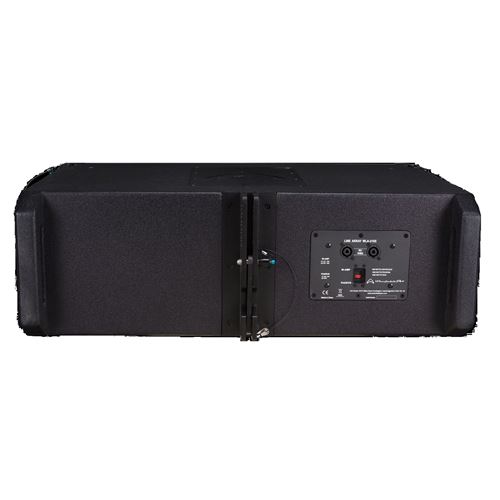

The WLA-210X element also features Passive and Bi-amp modes which allows for complete system control. The bi-amp feature enables the system designer to select the best amplification for each driver component within the array. Such control, when used with external signal processing such as the Wharfedale Pro Versadrive series, gives the engineer the ultimate in system fine tuning. This, in turn, leads to the best audio output.
The WLA-210XSUB features dual 15” LF drivers with massive 4.0” voice coils. Specifically created for use with WLA-210X, this subwoofer can be flown or ground stacked easily as a result of its comprehensive rigging hardware.
Premium materials are used throughout the system. The enclosure is constructed of Baltic birch plywood and is coated in a premium and durable Rhino Rock paint. To keep the weight to a minimum and prevent rust, suspension fittings are made of aluminium.
An elegantly simple 3-point suspension system combined with light weight, compact size and excellent handling ergonomics mean that an array can easily be deployed. With the WLA-210X Common Fly frame, systems can be configured as flying or ground stacked in multiple combinations.
DUAL 10"
At the heart of the WLA-210X are 2 x 10″ custom Wharfedale Pro LF drivers.
These feature 4.0″ voice coils to ensure high efficiency and high power handling.
The HF Compression driver is also custom made by Wharfedale Pro. Using a neodymium magnet and a 3.0″ voice coil, this compression driver is coupled to a 100° x 10° waveguide.
These custom designed transducers are what give a WLA-210X system its incredible sound and power handling capacity.
OPTIONAL COMMON FLY FRAME
Arrays can be assembled using only WLA-210X line array elements or with WLA-210XSUB Subwoofers at the top of the array.
The WLA-210X Common Fly frame supports up to 10 x WLA-210X elements and 1 x WLA-210XSUB OR 12 x WLA-210X with a safety factor of 12.
- Dual 10″ LF drivers
- 3″ Neodymium HF compression driver
- 138 dB Max SPL @ 1 meter
- Birch plywood construction
- Integral, side plate adjustable rigging system
- Passive and Bi-amp mode switching
| Model Name | WLA-210X |
| System Type | Passive |
| Configuration | Two-way 2 x 10” |
| Frequency Response (+/-3 dB) | 65 Hz – 20 KHz |
| Frequency Range (-10 dB) | 60 Hz – 20 KHz |
| Sensitivity (2.83 v / 1 m) | 102 dB |
| Calculated Maximum SPL @1 m | LF:135 dB HF:138 dB |
| System Rated Impedance | 16 Ω |
| Low Frequency Transducer | |
| Size | 2 x 260 mm / 2 x 10” |
| Voice Coil Size | 65 mm / 2.5” |
| Rated Impedance | 8 Ω x 2 |
| LF Power (re:AES2-2012) | 2 x 400 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver – Neo |
| Voice Coil Size | 75 mm / 3.0” |
| Exit Size | 35.56 mm / 1.4” |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 80 W |
| Nominal Coverage (H x V) | 100° x 10° |
| Power | |
| System Continuous Power | LF:800 W HF:90 W |
| System Programme Power | LF:1800 W HF:180 W |
| System Peak Power | LF:3600 W HF:360 W |
| Crossover frequency | 1.5 KHz |
| Input Connector | 2 x speakON compatible |
| Hardware | Integral side plate adjustable |
| rigging 0°-10° | |
| Enclosure | |
| Enclosure Material | 15 mm / 18 mm Plywood |
| Finish | Rhino Black Paint |
| Grille Material & Finish | 1.2 mm Black Steel |
| Dimensions – (Unpacked) | |
| Height Front | 314 mm / 12.4” |
| Height Rear | 240.2 mm / 9.46” |
| Width | 760 mm / 29.9” |
| Depth | 504 mm / 19.84” |
| Dimensions – (Packed) | |
| Height | 404 mm / 15.9” |
| Width Front | 855 mm / 33.7” |
| Width Rear | 855 mm / 33.7” |
| Depth | 594 mm / 23.4” |
| Weight | |
| Net Weight (kg / lbs) | 34.8 kg / 76.6 lbs |
| Gross Weight (kg / lbs) | 38.5 kg / 84.7 lbs |
