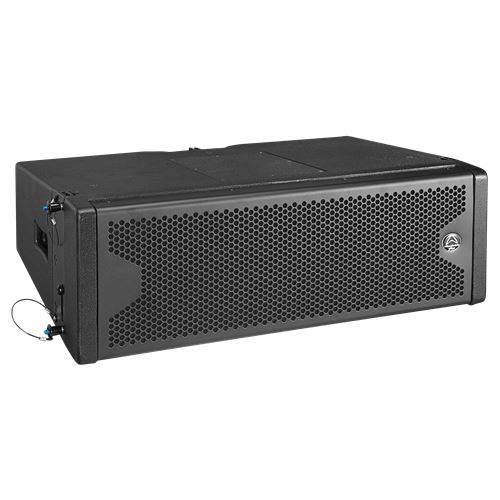

WLA-28X
Re-designed dual 8” Passive line array
Re-defined HF compression driver
Improved HF protection circuit
Bi-amp and Passive mode switching
System AES LF: 400 W HF: 90 W
System Programme LF: 800 W HF: 180 W
System Peak Power LF: 1600 W HF: 360 W
15 mm / 18 mm Birch Plywood construction
– ALL IS CLEAR!
The original WLA-28 has become a favourite around the world. Dual 8” drivers, extreme SPL capabilities and an impressive price to performance ratio has meant that WLA-28 can be found on stage, on tour and in fixed installations.

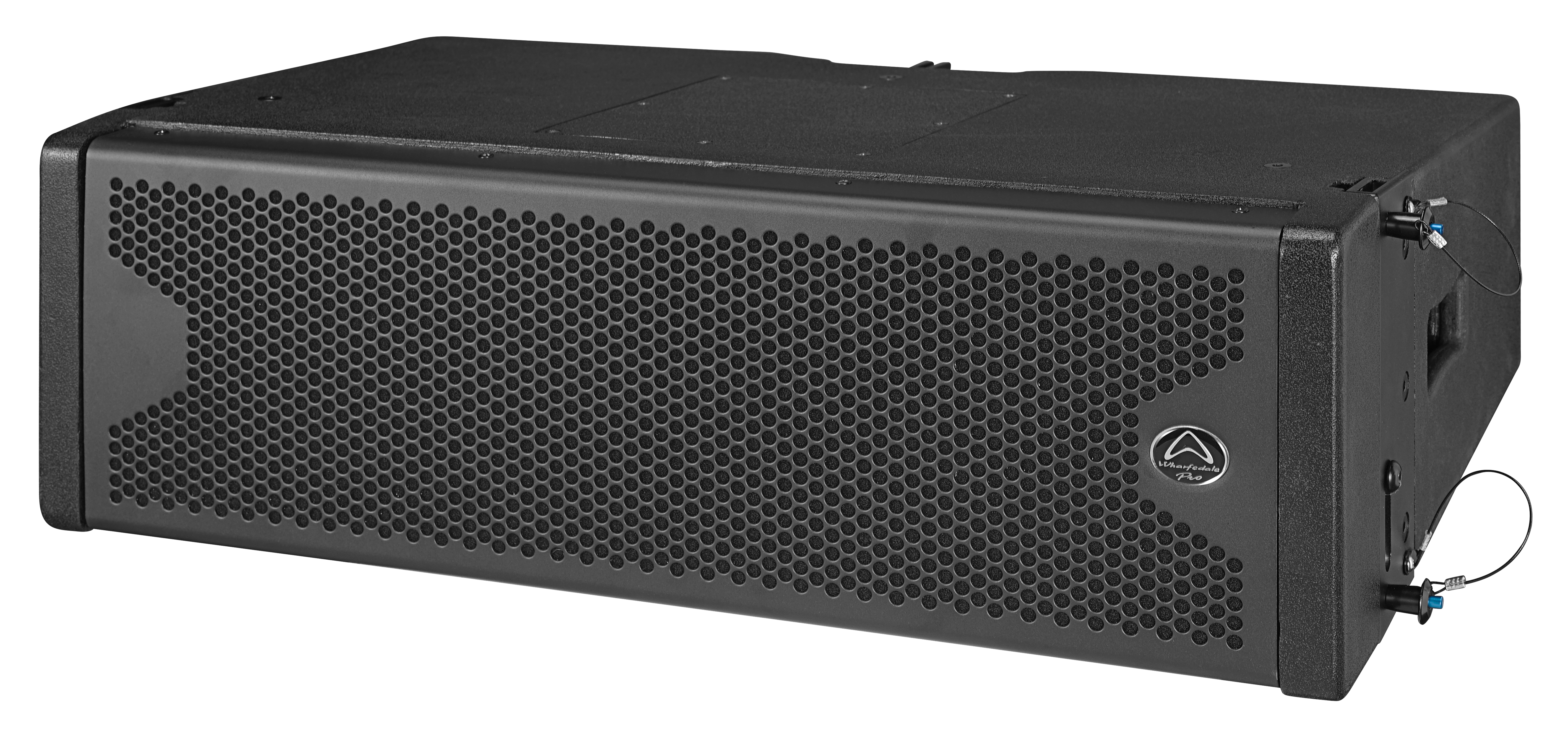

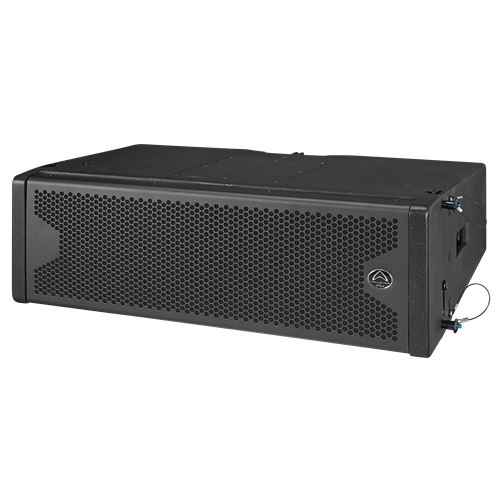

The newly updated WLA-28X now takes that power and performance to a new level. With an improved HF compression driver, new flat grille design and improved HF protection circuitry, the WLA-28X is ready to impress.
The new custom designed HF compression driver now delivers more control and more definition to the HF content.

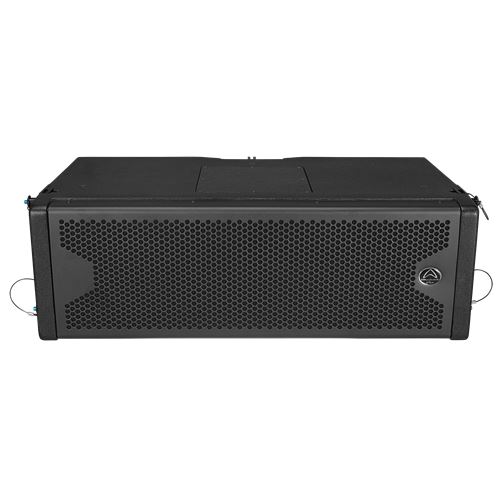

The flat grille face also makes life easier for rental companies and improves long-term durability.
ABOUT THE CLARITY

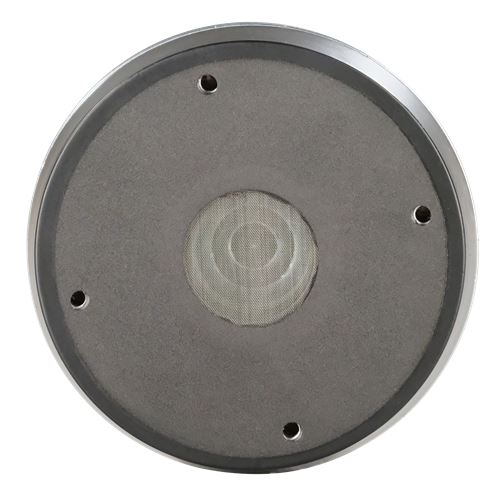

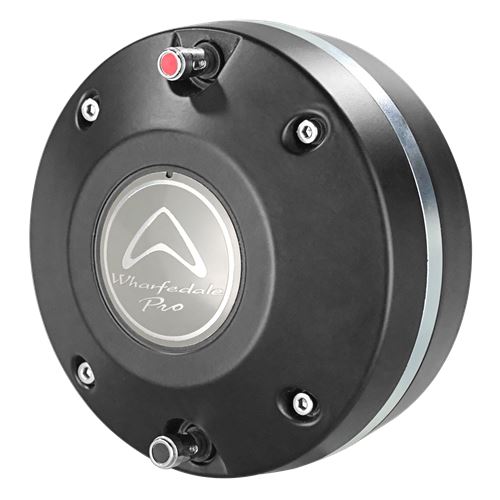

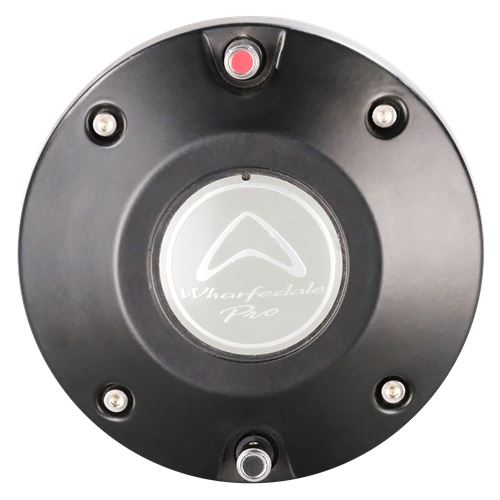

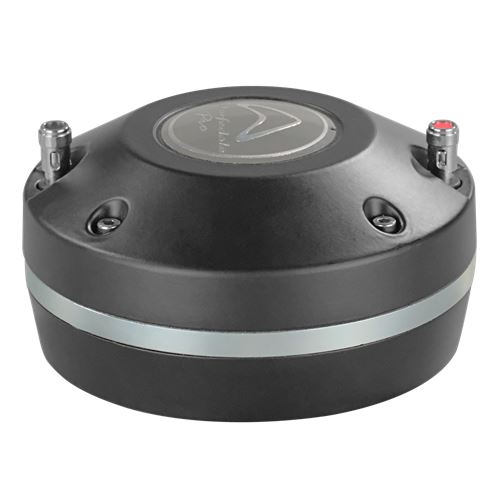

The new neo HF compression driver delivers additional clarity and performance with enhanced definition.
It is custom made by Wharfedale Pro and is coupled to a 100° x 10° waveguide.
DUAL 8"

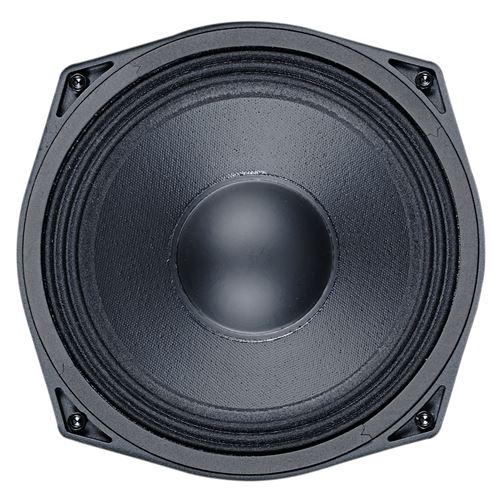

At the heart of the WLA-28X are 2 x 8″ custom Wharfedale Pro LF drivers.
These feature 2.0″ voice coils to ensure high efficiency and high power handling.
These custom designed transducers are what give a WLA-28X system its incredible sound and power handling capacity.
- Re-designed dual 8” Passive line array
- Re-defined HF compression driver
- Improved HF protection circuit

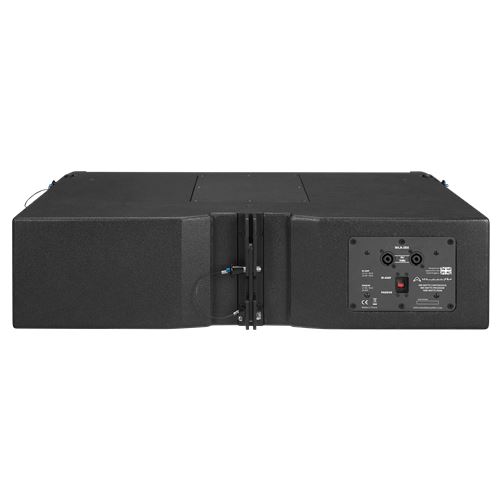

- Bi-amp and Passive mode switching
| Model Name | WLA-28X |
| System Type | 2 x 8” Two-way |
| Frequency Response (+/-3 dB) | 65 Hz-20 KHz |
| Sensitivity (2.83 v / 1 m) | 101 dB |
| Calculated Maximum SPL @1 m | 133 dB |
| Nominal Coverage (H x V) | 100°x10° |
| Power: | Passive: 400 W / 800 W / 1600 W |
| Continuous / Programme / Peak | Bi-amp LF: 400 W / 800 W / 1600 W |
| Bi-amp HF: 90 W / 180 W / 360 W | |
| Rated Impedance ( Ω ) | Passive: 16 Ω |
| Bi-amp LF: 16 Ω ; Bi-amp HF: 16 Ω | |
| HF Diaphragm Material | Titanium |
| HF Magnet Material | NdFeB |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| HF Coil Size (inches/mm) | 3.0” (75 mm) |
| LF Coil Size (inches/mm) | 2.0” (51.6 mm) |
| Crossover Frequency | 1.7 KHz |
| Cabinet Type | Trapezoid |
| Enclosure Material and finish | 18 mm / 15 mm Plywood |
| Enclosure Colour | Black paint |
| Grille Material & Finish | 1.5 mm Steel |
| Connectors | Neutrik NL4MP |
| Hardware | Integral side plate adjustable |
| rigging 0°-10° | |
| Cabinet Dimensions HxWxD(mm) | 250 x 760 x 463.2 mm |
| Packed Dimensions HxWxD(mm) | 320 x 830 x 534 mm |
| Net Weight (Kg) | 29.5 Kg |
| Gross Weight (Kg) | 32.0 Kg |
