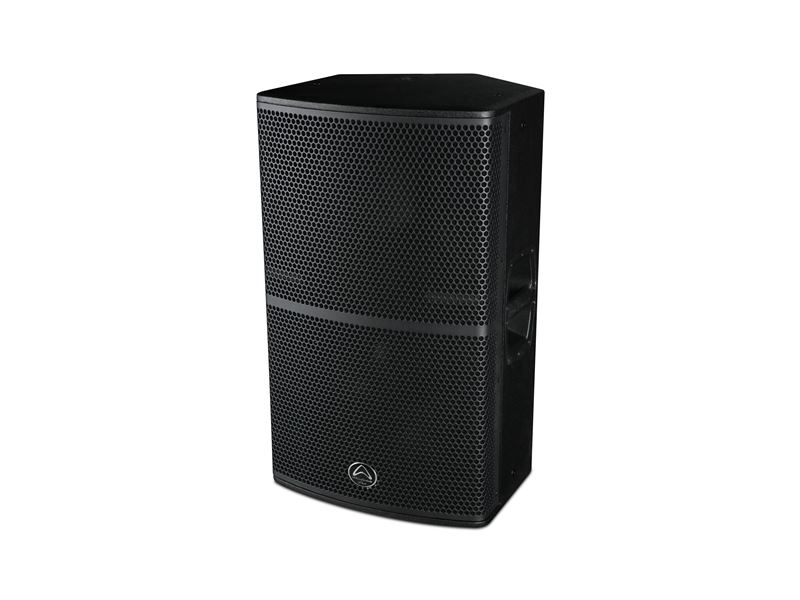

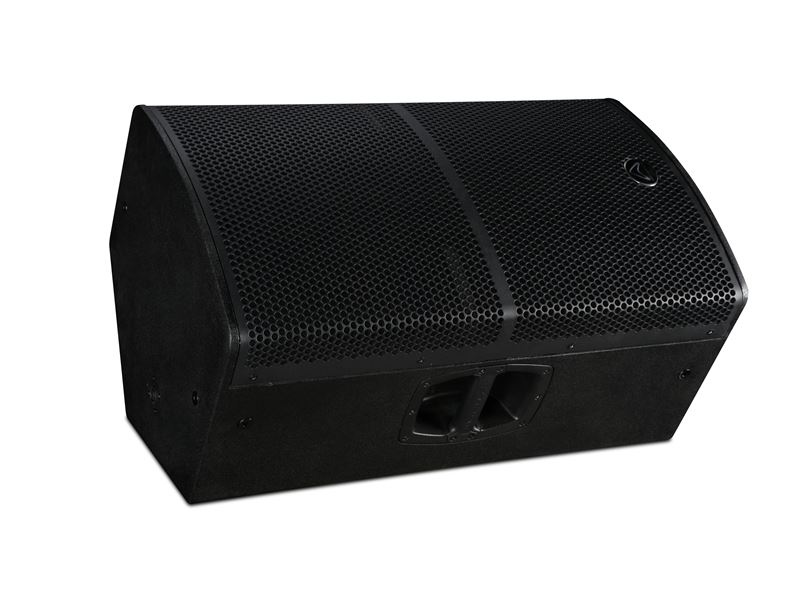

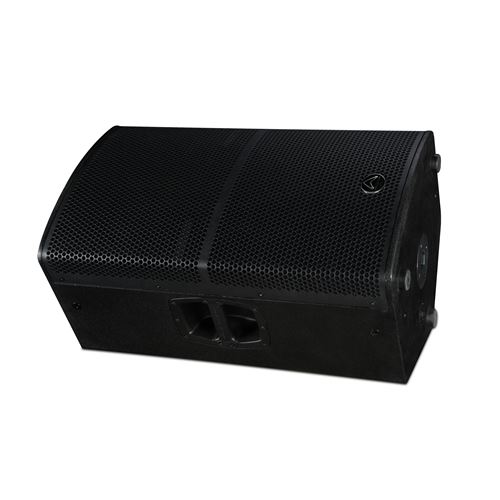

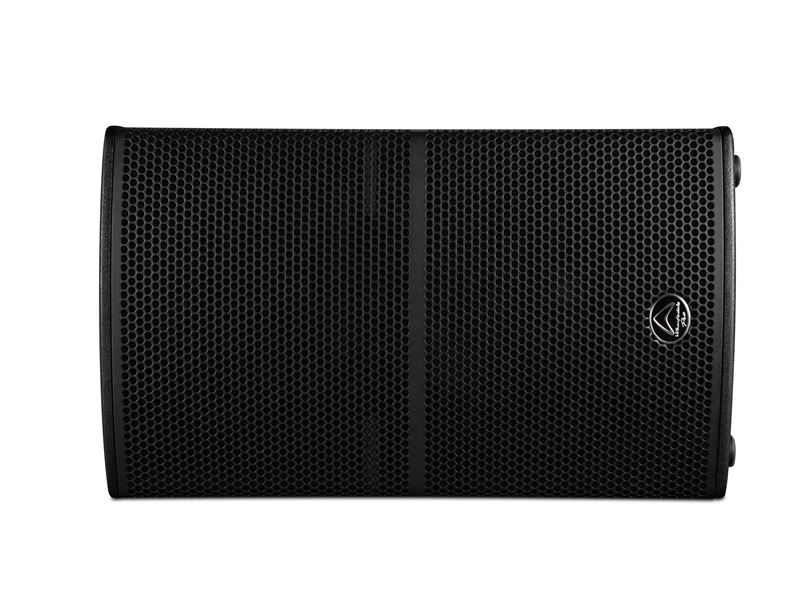

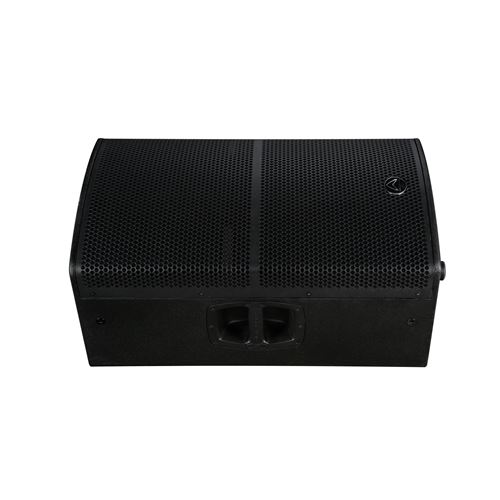

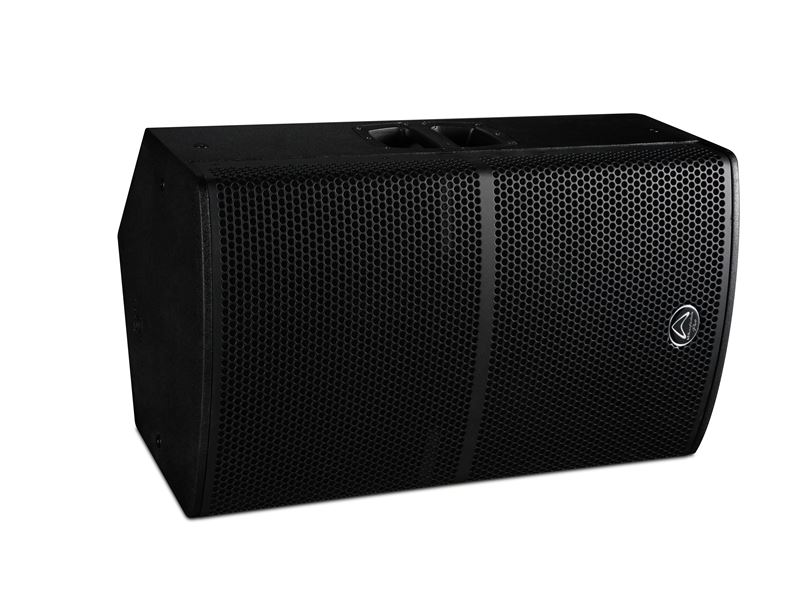

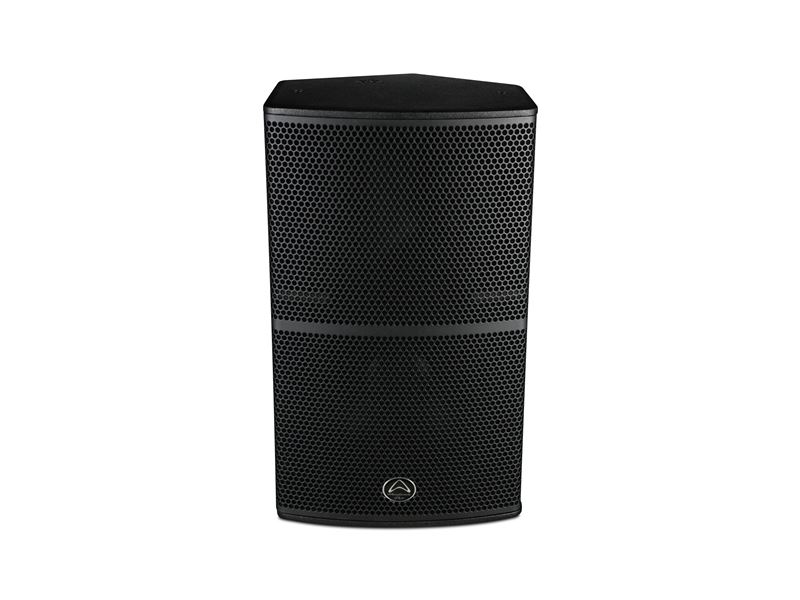

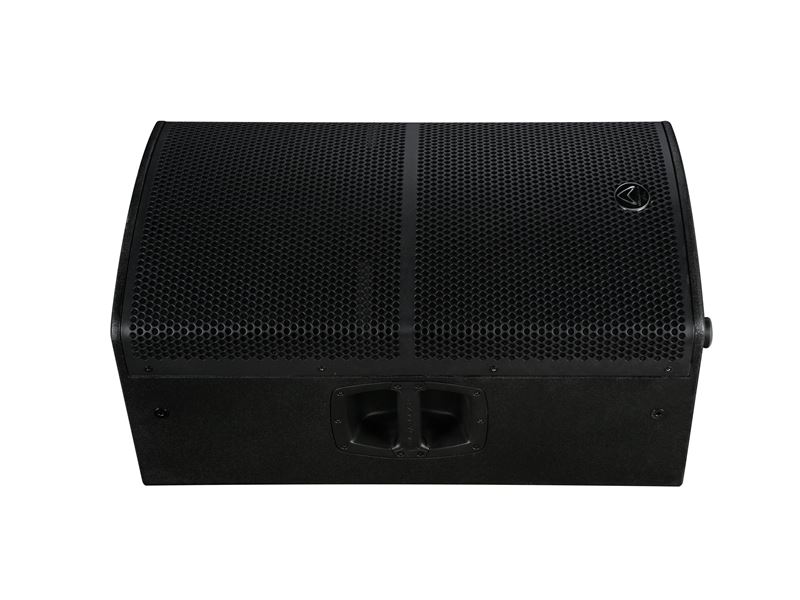

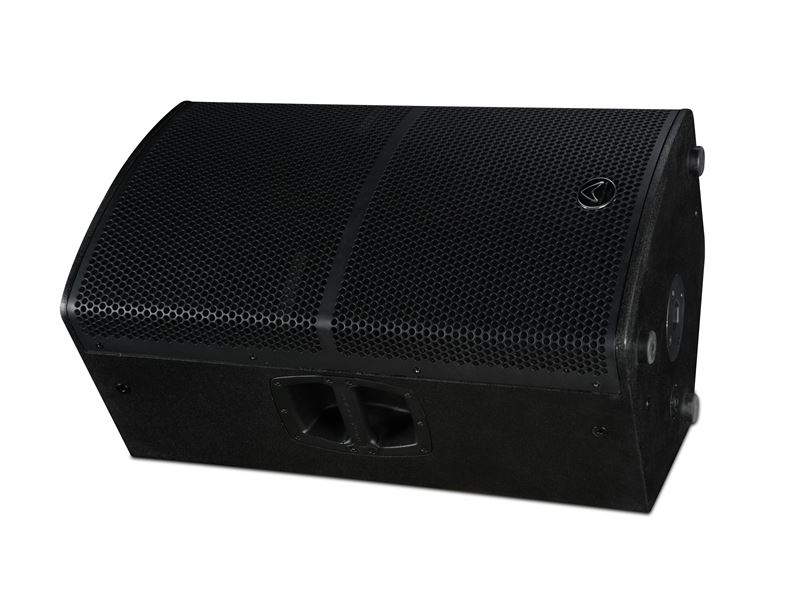

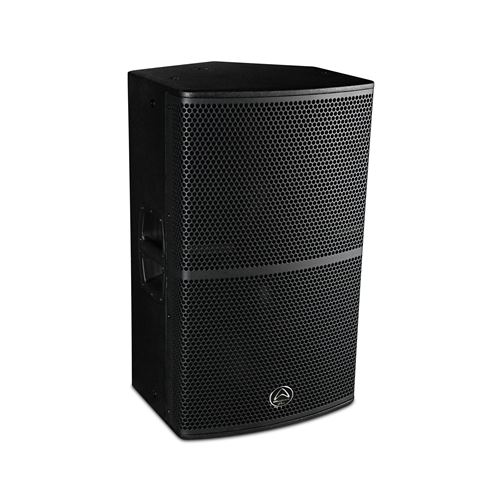

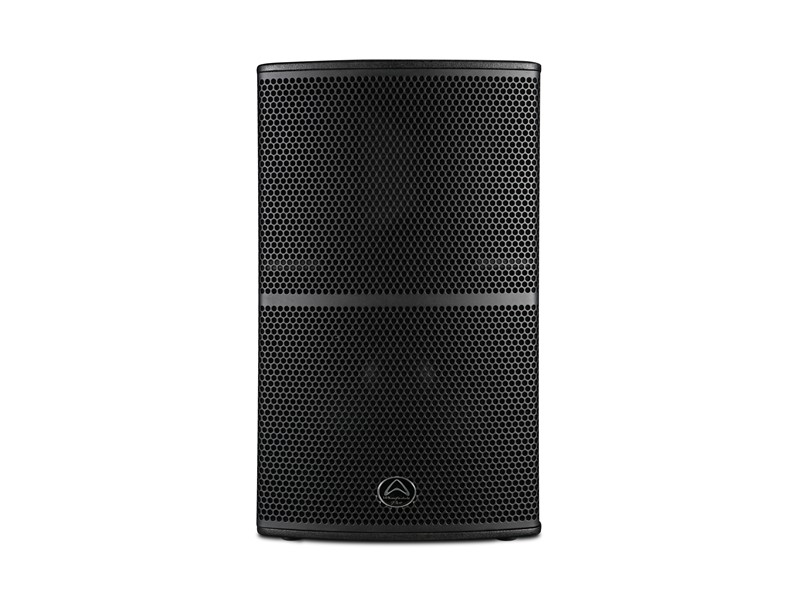

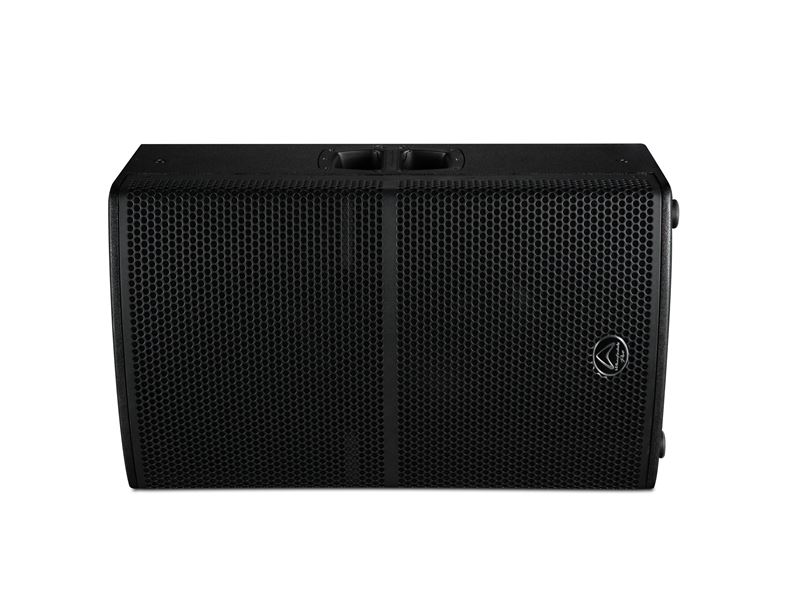

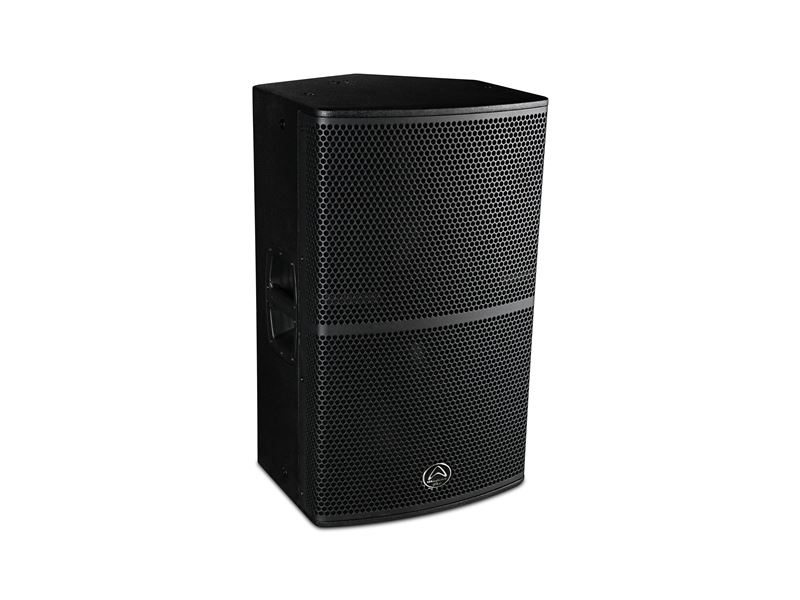

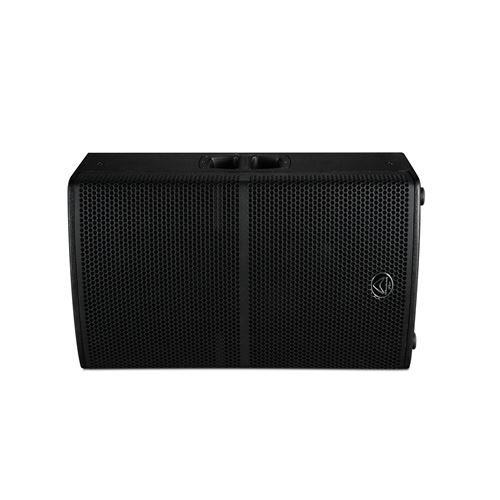

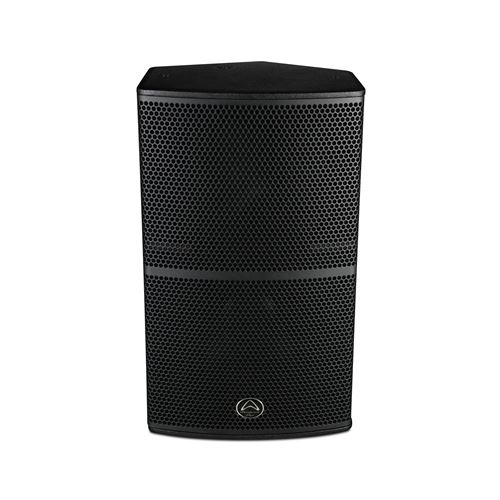

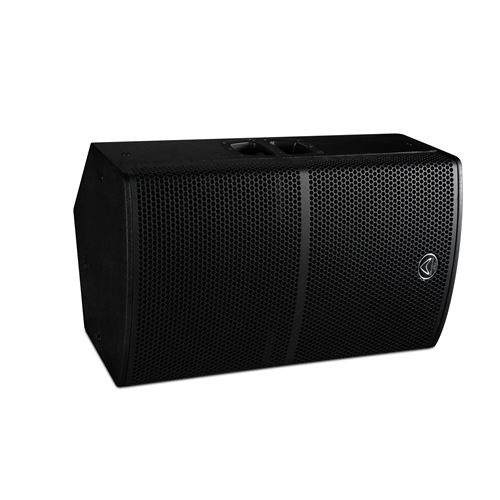

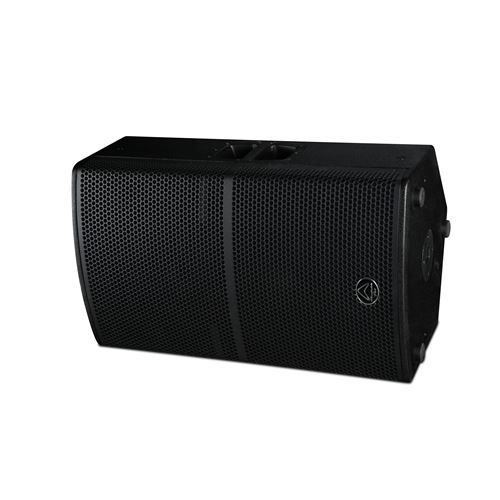

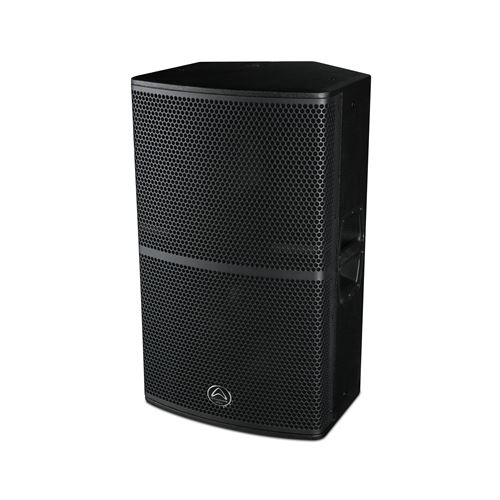

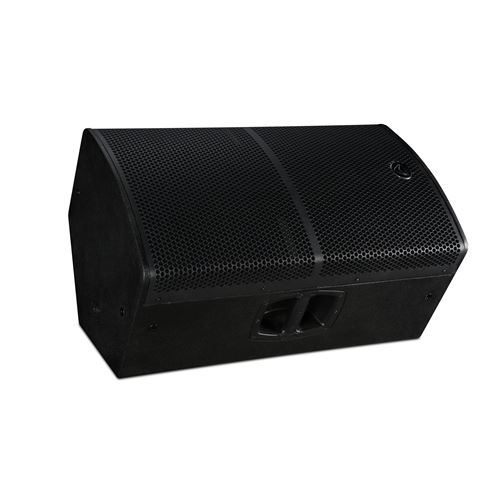

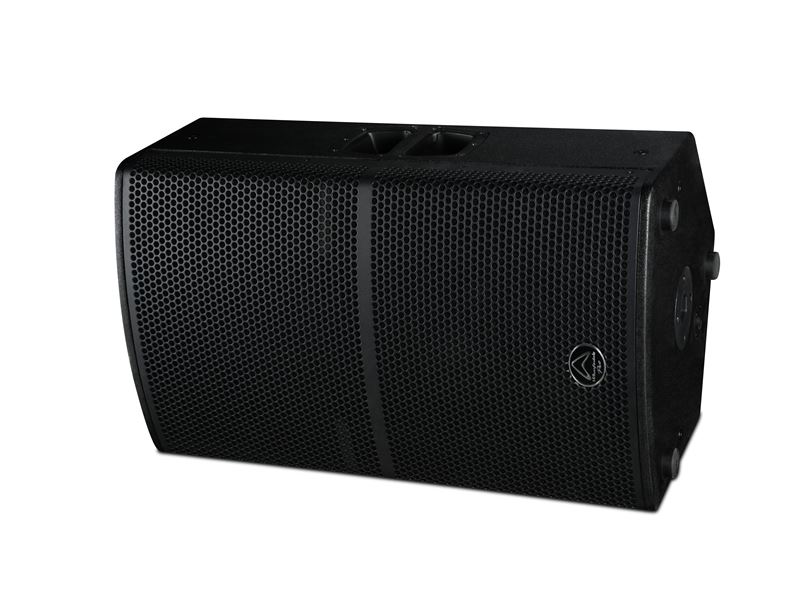

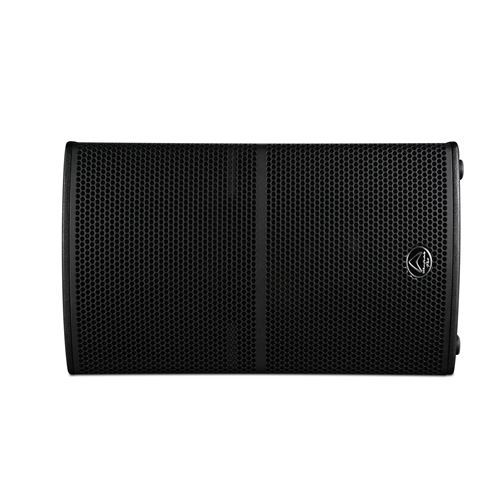

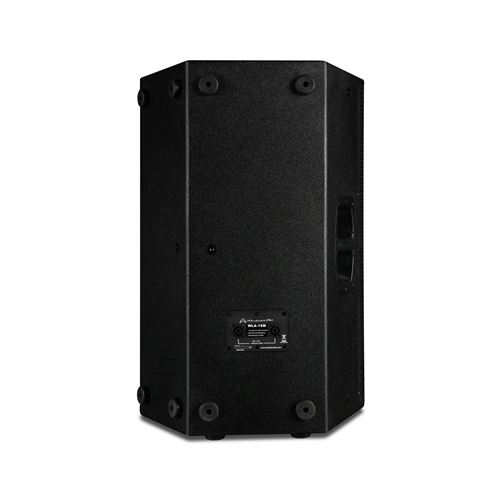

WHARFEDALE PRO WLA Series 700 Watts RMS 15" 2-Way Passive Floor Monitor Speaker

WLA-15MX

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






WLA-15MX

700 watts
AES (RMS)
  • 15″ 2-way passive floor monitor
  • 4.0″ LF voice coil
  • 3.0″ Newly designed Neo HF compression driver
  • Baltic Birch plywood construction
  • Rotatable waveguide
  • 35 mm pole socket
  • 700 watts AES (RMS)
  • 1400 watts Programme
  • 2800 watts Peak
  • Max SPL @ 1 meter 134 dB

Around the world WLA series line arrays are used in demanding environments. Systems expand and customers demand larger rigs with more configuration flexibility.

To answer this need Wharfedale Pro introduce WLA series floor monitors. Constructed of the finest 15mm Baltic birch plywood and using custom Wharfedale Pro drivers with high flux densities, they have the performance and construction quality for relentless touring and demanding on-stage abuse.

UPDATED FLOOR MONITORS - Let’s be clear about this!

Around the world WLA series line arrays are used in demanding environments. Systems expand and customers demand larger rigs with more configuration flexibility. WLA series floor monitors are the perfect addition to any WLA series rig (….or any other system that needs power, versatility and definition)

With new 3.0” Neo HF compression drivers, the new and improved ‘MX’ floor monitor models have more clarity and HF space than ever before.

Constructed of the finest 15 mm Russian birch plywood and using custom Wharfedale Pro drivers with high flux densities, the updated WLA-12MX and 15MX models have the performance and construction quality for relentless touring and demanding on-stage abuse. It’s clear!

  • 3.0” Neo HF compression drivers with high flux density
  • Rotatable horns for horizontal or vertical applications
  • Multiple NL4MP speakON compatible connectors on top, side and rear
  • 35 mm pole socket for vertical performance
  • 15 mm Baltic birch plywood construction.


Model Name WLA-15MX
System Type Passive
Configuration Two-way Monitor
Frequency Response (+/-3 dB) 45-20 KHz
Frequency Range (- 10 dB) 40-20 KHz
Sensitivity 2.83 V / 1 M 99.5 dB
Calculated Maximum SPL @1 M 134 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
LF Size (mm / inches) 390 mm / 15″
LF Voice Coil Size (mm / inches) 102 mm / 4″
LF Magnet Material ferrite
LF Frame Material aluminium
Rated Impedance 8 Ω
LF Power re:AES2-2012 700 W
High Frequency Transducer
HF Driver Type Compression Driver
Coil Size (mm / inches) 75 mm / 3.0″
Exit Size (mm / inches) 35.5 mm / 1.4″
HF Magnet Material NdFeB
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power re:AES2-2012 90 W
Waveguide Type square
Nominal Coverage (H x V) 90° x 60° (Rotatable)
Power
System Continuous Power (w) 700 W
System Programme Power (w) 1400 W
System Peak Power (w) 2800 W

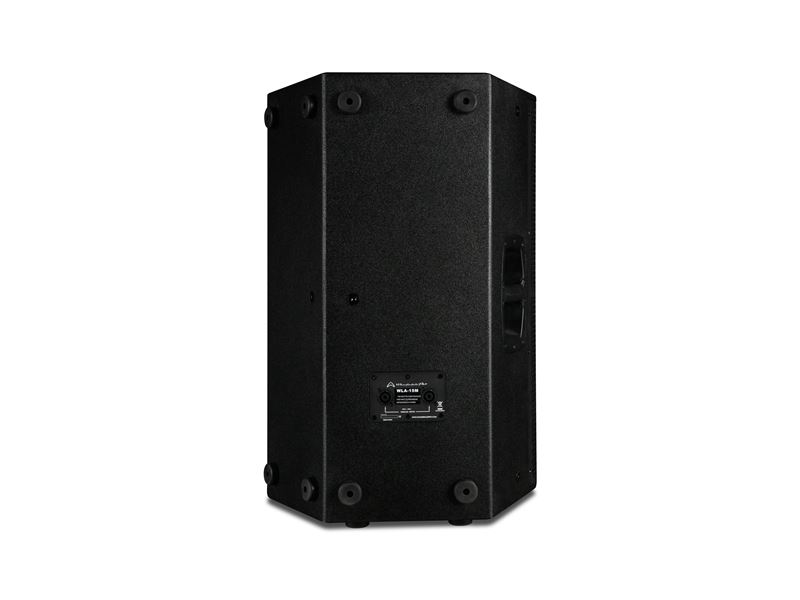

Input Connector 4 x NL4MP
(speakON Compatible)
Rigging M10 x 10
pole mount 35 mm
handles 2 on Sides
Enclosure
cabinet type polygon
Enclosure Material and finish 15 mm plywood
Colour Options black paint
Grille Material & Finish steel
Dimensions – Unpacked (mm / inches):
Height 723 mm / 28.5″
Width 432 mm / 17.0″
Depth 434 mm / 17.1″
Dimensions – Packed (mm / inches):
Height 811 mm / 31.9″
Width 480 mm / 18.9″
Depth 512 mm / 20.2″
Weight
Net Weight (kg / lbs) 31.9 kg / 69.9 lbs
Gross Weight (kg / lbs) 34.7 kg / 76.3 lbs
