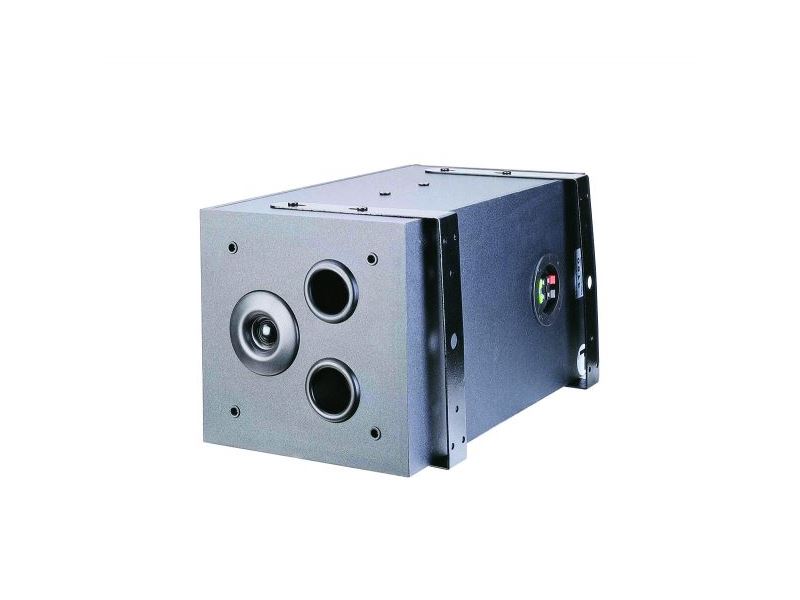

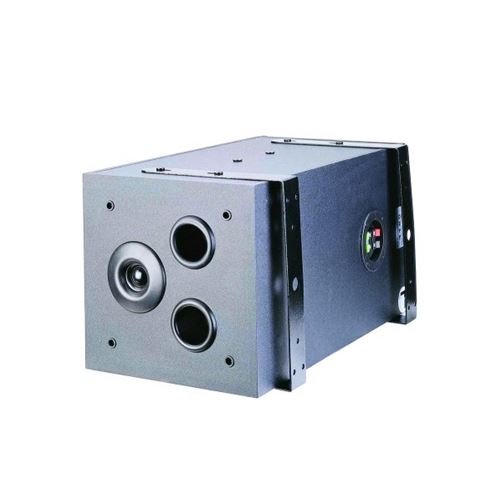

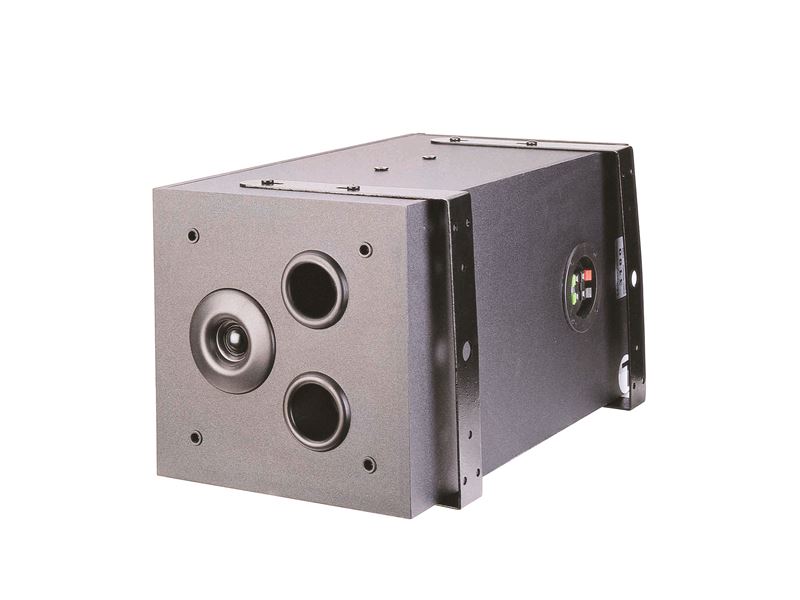

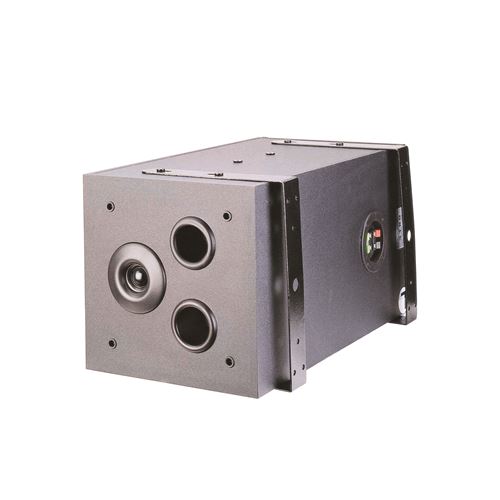

The 3180 is the largest model in this range and develops the 2180 concept through the addition of a second 200mm diameter bass drive unit. By positioning this unit on the side of the cabinet a remarkably compact loud- speaker system is achieved; one that offers high power han- dling and high SPL outputs. The compact size and discrete appearance of the 3180 makes it ideal for the small club where the use of several of these loudspeakers can produce the sound levels the cus- tomers desire yet with the minimum loss of valuable space.
The 3180 offers a perfect combination of performance; value; appearance; reliability and, above all, the legendary Wharfedale sound quality.

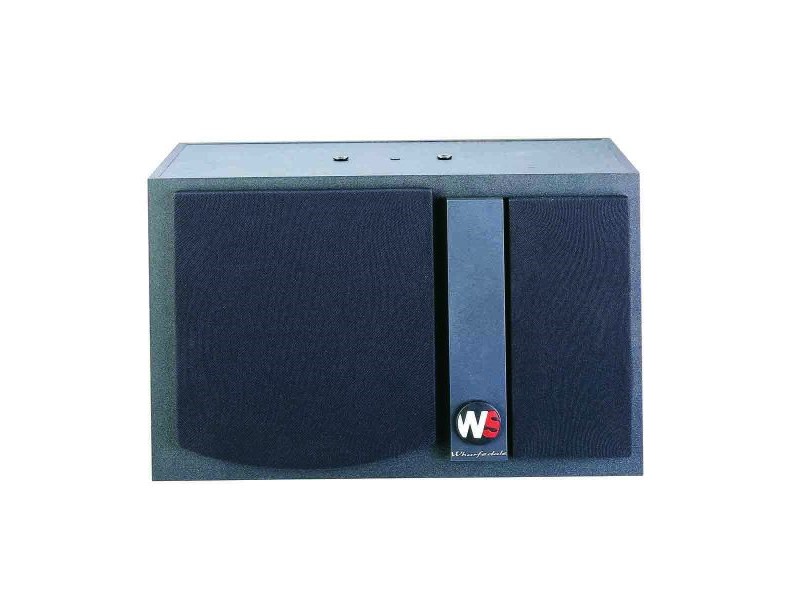

An attractive 2 way system designed for wall or shelf mounting, equally at home in a portrait or landscape orientation. The philosophy behind these loudspeakers is simple. To further extend Wharfedale’s reputation for excellent sound quality whilst employing innovative design to give a distinctive yet discrete appearance to these loudspeaker systems.
Traditionally the loudspeaker placement in rooms has been dominated by the needs of stereo reproduction and consequently most positions are a compromise enforced by the directionality of conventional loudspeakers. However, Wharfedale’s innovative solution is to use the ‘Baker Effect’, a phenomenon first noted in the 1930’s. By mounting two HF drive units perpendicular to each other, and carefully contouring the crossover network, Wharfedale has been able to reproduce a dramatic stereo effect in almost any listening position.
Model Name | 3180 |
Frequency Response (+/-3 dB) | 40 Hz – 20 KHz |
Calculated Maximum SPL @1 meter | 92 dB |
Low Frequency Transducer | |
Size (mm / inches) | 2 x 200 mm / 8″ |
Voice Coil Size (mm / inches) | 50 mm / 2″ |
Coil Size (mm / inches) | 2 x 25 mm |
Nominal Impedance | 4 Ω |
Power | |
System AES (RMS) Power (w) | 90 w |
System Programme Power (w) | 175 w |
System Peak Power (w) | 350 w |
Dimensions – Unpacked (mm) | |
Height | 270 mm |
Width Front | 570 mm |
Depth | 290 mm |
