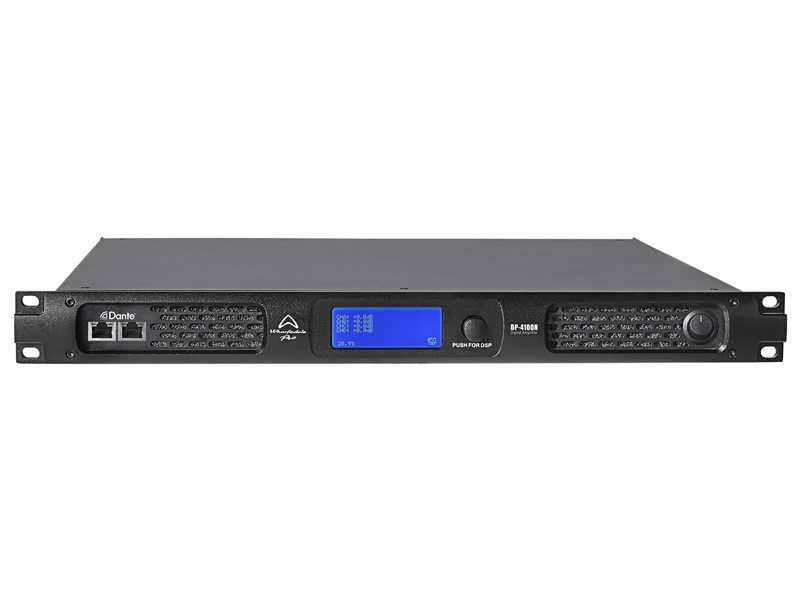

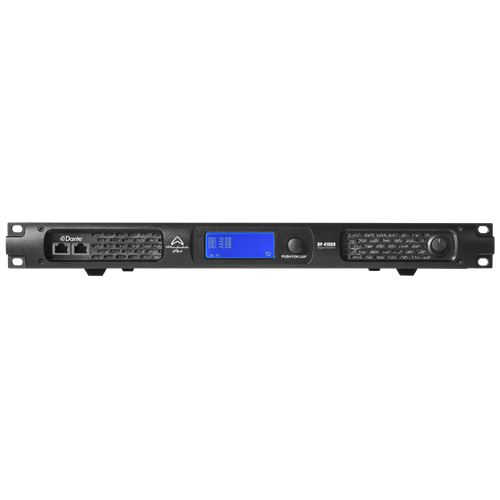

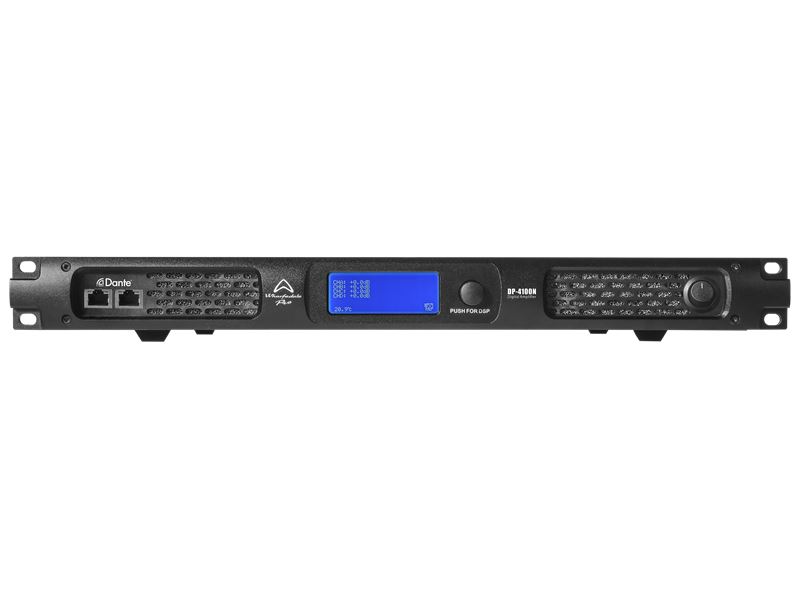

WHARFEDALE PRO DP-N Series Quad Channel 1000 Watts @ 8 Ohms Amplifier with Dante™ Connectivity

DP-4100N

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






DP-4100N

2 x 5780 watts
4 Ohm Bridged
  • 4 channels
  • 8 Ohm 4 x 1000 W
  • 4 Ohm 4 x 1700 W
  • 2 Ohm 4 x 2890 W
  • 16 Ohm Bridged 2 x 2000 W
  • 8 Ohm Bridged 2 x 3400 W
  • 4 Ohm Bridged 2 x 5780 W
  • 100 V Hi-Z : No
  • 70 V Hi-Z 4 x 1700 W

Two new models join the DP series of Class D, multi-channel amps.

DP-4100N and DP-4065N have been engineered for mid sized venues, rental and touring applications. Enormous output power and stability at 2 ohms are features that already make DP amps special - but the new DP-N models also feature Dante ™ connectivity and hugely upgraded DSP functionality.

The DSP now has FIR filtering with 512 taps. This refined and powerful FIR filtering brings linear phase response to the system, resulting in a more controllable and faithful output.

Input connectivity is now handled by the front panel Dante ™ connectors - allowing the DP-N to be used in a huge Dante ™ ecosystem. Networked audio, with remote DSP control.

DP-N series also feature a wide range AC power input and are happy with huge voltage fluctuations between 90 v and 260 v. In addition, DP-N series can drive 70 V line systems!

REDUNDANCY

DP series amps get used in ‘mission critical’ environments.  Therefore the ‘auto’ mode has been built in to deliver redundancy capability.

Set the input to ‘Auto’ and the input will change, should a problem happen with external connections.
(Use of an internal delay is advised to compensate for any switch timing and latency issues)

FIR FILTERS

FIR Filtering gives

  • Independent control of magnitude and phase.
  • More detailed equalisation.
  • Optimization of frequency and power response.

STABLE DOWN TO 2 OHM

Huge output power and stable down to 2 Ohms

The power output figures of DP-N series are staggering.The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.

DP-N amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.

DANTE ™

Using the Ultimo 4×4 chipset, DP-N amps easily join any Dante ™  ecosystem.

  • Digital audio connectivity of up to 96 KHz
  • Remote, network control.
Audinate® is a registered trademark of Audinate Pty Ltd.

Dante® is a registered trademark of Audinate Pty Ltd.

  • Huge Class D power in a 1U rack
  • 4 discrete amplification channels
  • Internal DSP and computer control
  • Stable down to 2 Ω. Drive multiple speakers or line array elements
  • FIR filtering with 512 taps
  • 90 V to 260 V AC working voltage
  • Dante ™ connectivity
  • 70 V / 100V compatible models


Model   DP-4100N
Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz) 8 Ω / Stereo 4 x 1000 W
  4 Ω / Stereo 4 x 1700 W
  2 Ω / Stereo 4 x 2890 W
  16 Ω / Bridge 2 x 2000 W
  8 Ω / Bridge 2 x 3400 W
  4 Ω / Bridge 2 x 5780 W
  100 V Hi-Z
  70 V Hi-Z 4 x 1700 W
Output RMS voltage   89.4 V
Maximum Input Level   8.7 Vrms(+21 dBu)(Default Gain)
Default Gain (Rated Power,1 KHz)   21 dB
Gain(Rated Power,1 KHz)   21 dB~39 dB
THD+N   Typical value:0.05%(10% Rated Power,8 Ω)
Cross-Talk   ≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω)
Frequency Response   Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance   20 kΩ(Balanced),10 kΩ(Unbalanced)
Damping Factor   ≥1000(20 Hz-200 Hz,8 Ω)
SNR   ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power   90~260 VAC,50/60 Hz
Protection   Power under-voltage protection、Amplifier output DC protection、Thermal Protection、 Temperature Power Control、Overload Power Control
Size(W×H×D)   483 x 45 x 376 mm
Net Weight   9.1 kg
