  5. WHARFEDALE PRO Versadrive DSP Series 3 In 6 Out, 8-Band Parametric EQ with Low/High Shelf Digital Processor

• AVAILABLE NOW

Wharfedale Pro | VERSADRIVE SC-36





WHARFEDALE PRO Versadrive DSP Series 3 In 6 Out, 8-Band Parametric EQ with Low/High Shelf Digital Processor

VERSADRIVE SC-36

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






SC-36-01Key Features

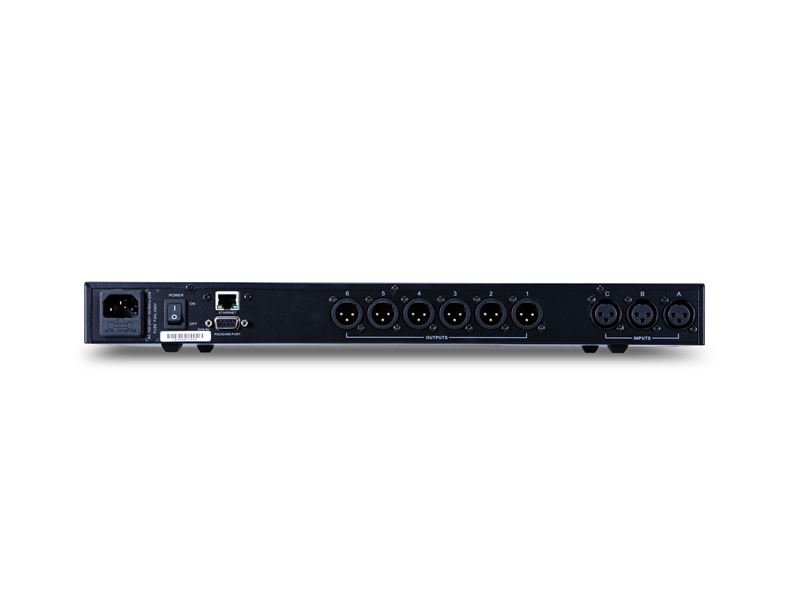

  • 3 x XLR inputs and 6 x XLR outputs
  • Complete digital sound processing solution
  • 8-band parametric EQ with low/high shelf
  • Limiter / Crossover / Filter
  • Independent processing for each output channel
  • 24-bit 96kHz AD/DA convertors
  • 40-bit internal processing
  • USB / RS232 and RS485 connectivity
  • User friendly software included
  • Password protection for venue install

VERSADRIVE SC-36

The Versadrive speaker management system offers all the digital signal processing and detailed control that a live sound engineer needs.

Whether we like it or not, it’s a reality that PA systems are complex.  A lot of time is spent selecting the best loudspeaker and amplifier combinations, and systems can easily grow.  Its therefore essential to maintain control to ensure the best quality sound throughout the rig.

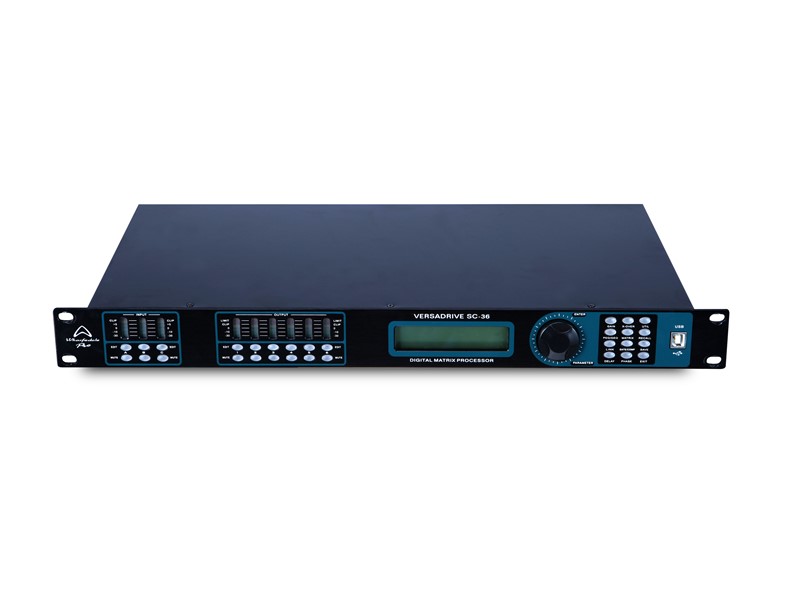

Packaged into a neat 1U rack design, an intuitive and concise front panel with LCD screen enables engineers to make essential adjustments to the speaker configuration with accuracy.

TAKE CONTROL

The Versadrive speaker management system offers all the digital signal processing and detailed control that a live sound engineer needs.

Whether we like it or not, it’s a reality that PA systems are complex.  A lot of time is spent selecting the best loudspeaker and amplifier combinations, and systems can easily grow.  Its therefore essential to maintain control to ensure the best quality sound throughout the rig.

Packaged into a neat 1U rack design, an intuitive and concise front panel with LCD screen enables engineers to make essential adjustments to the speaker configuration with accuracy.

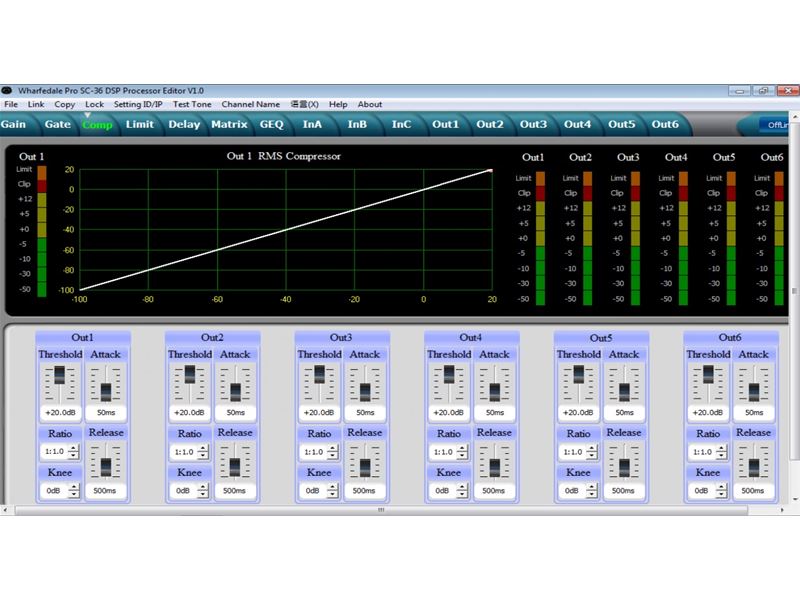

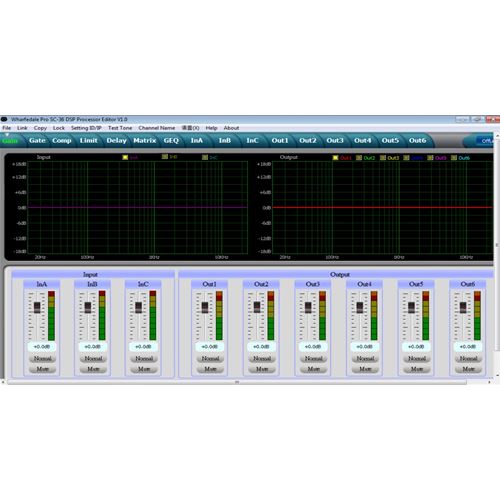

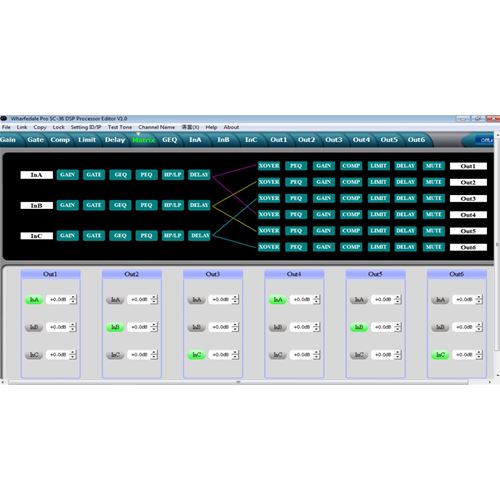

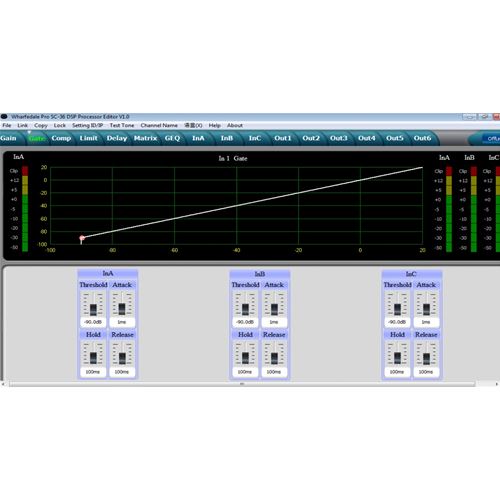

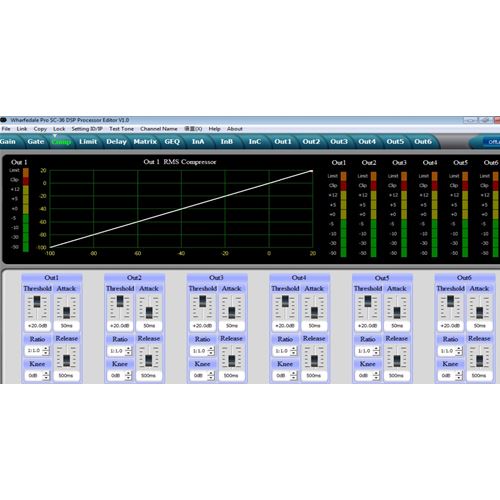

SOFTWARE CONTROL

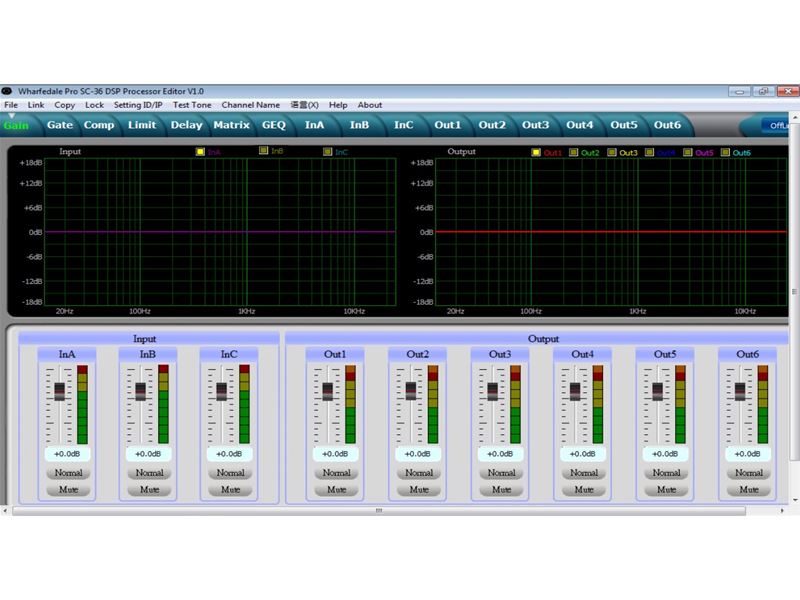

All parameters of the Versadrive can be controlled via PC.

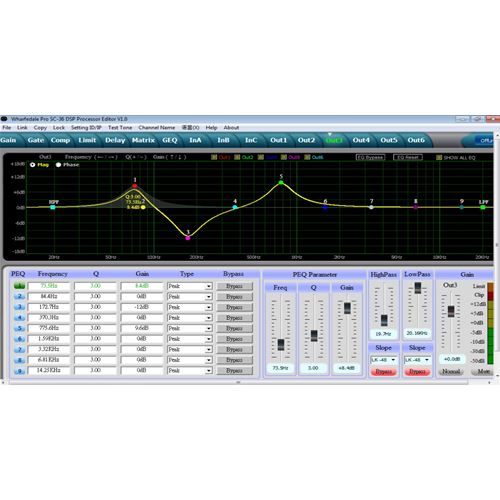

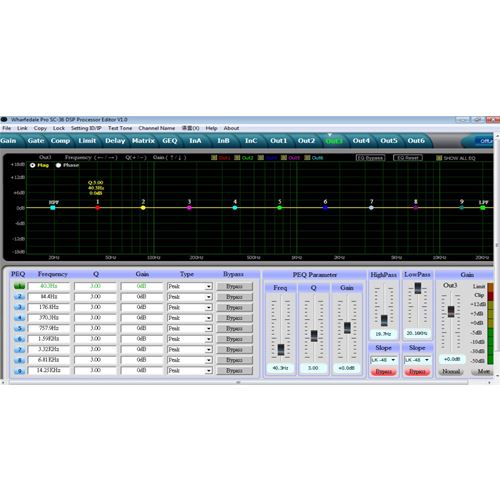

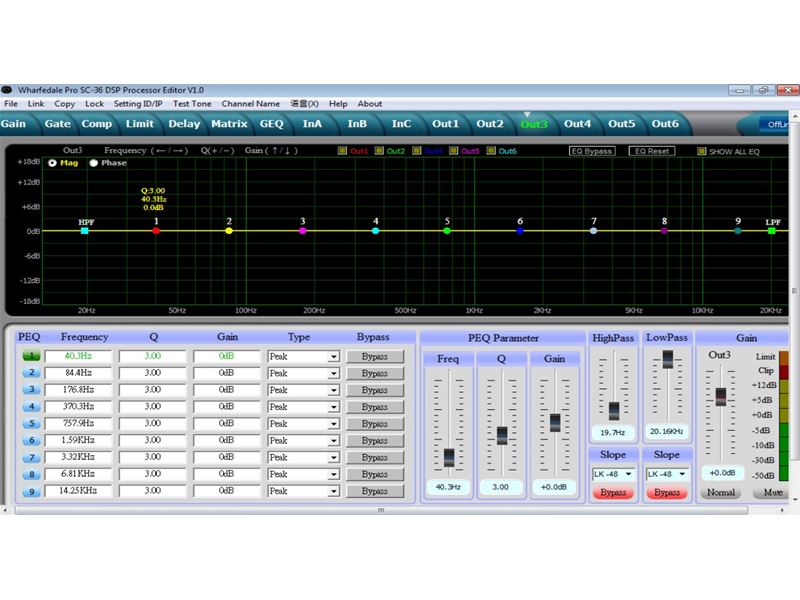

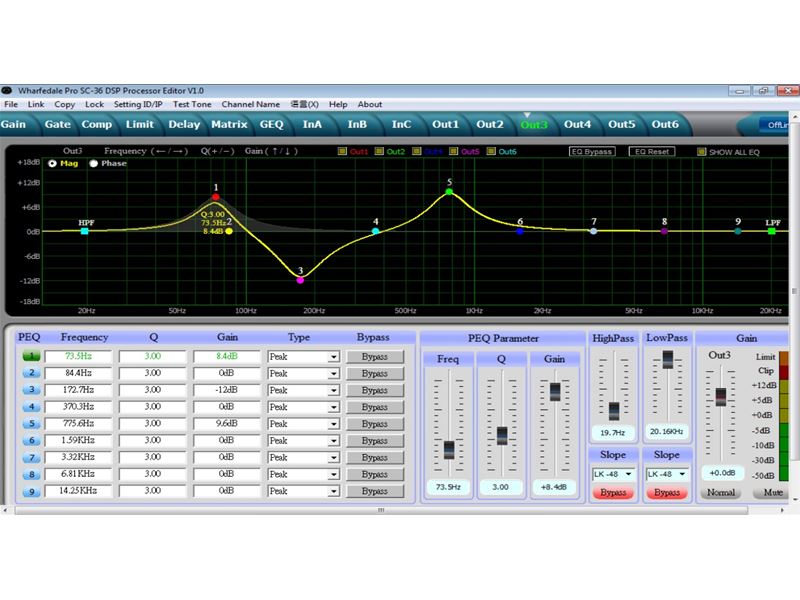

Not only is this extremely convenient, but a clear central graphical representation of your EQ and crossover points are displayed. This also makes light work of copying channel settings and organising your presets.

Using the PC software also allows for system backups to be made.

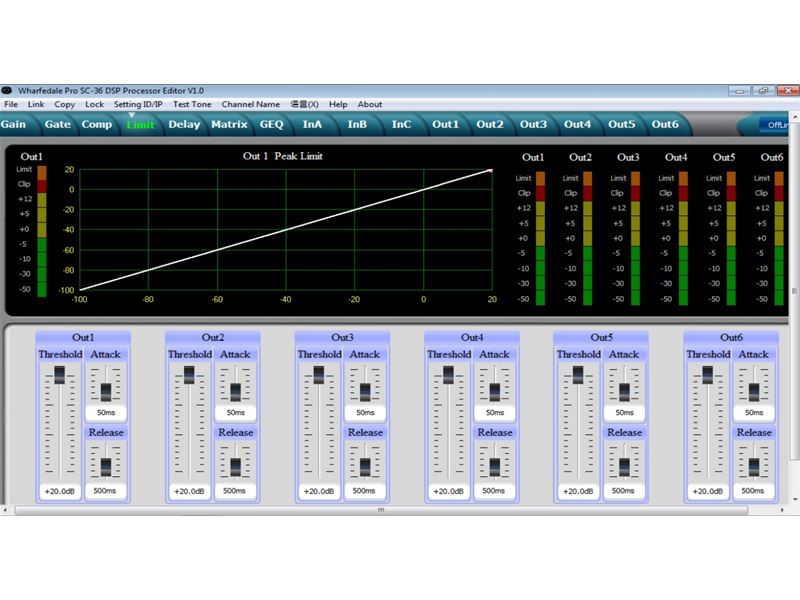

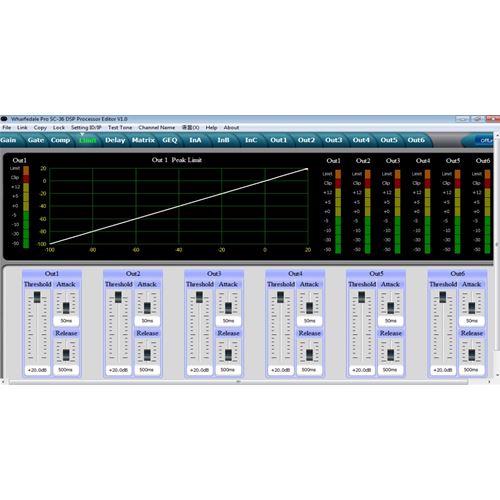

Screen Shot 2017-05-03 at 09.44.20

EFFECTS TO CONTROL YOUR RIG

A huge selection of effects are at your fingertips.

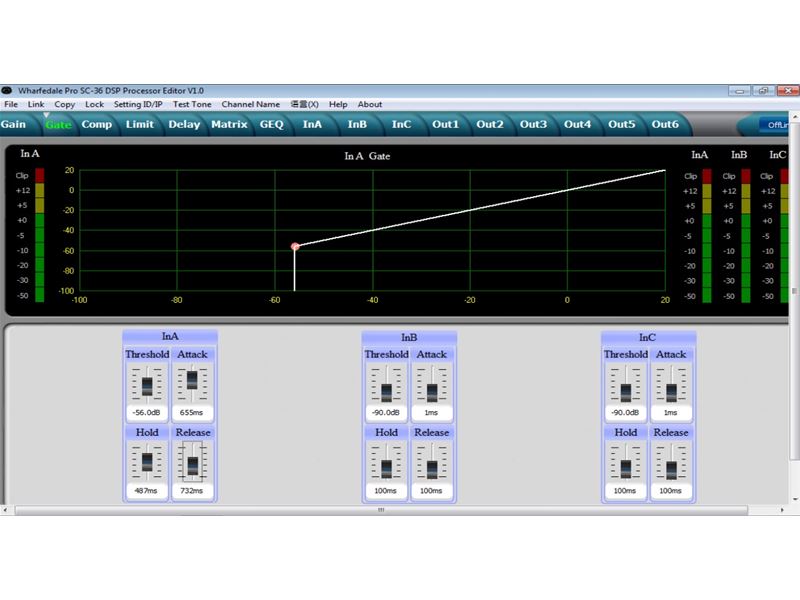

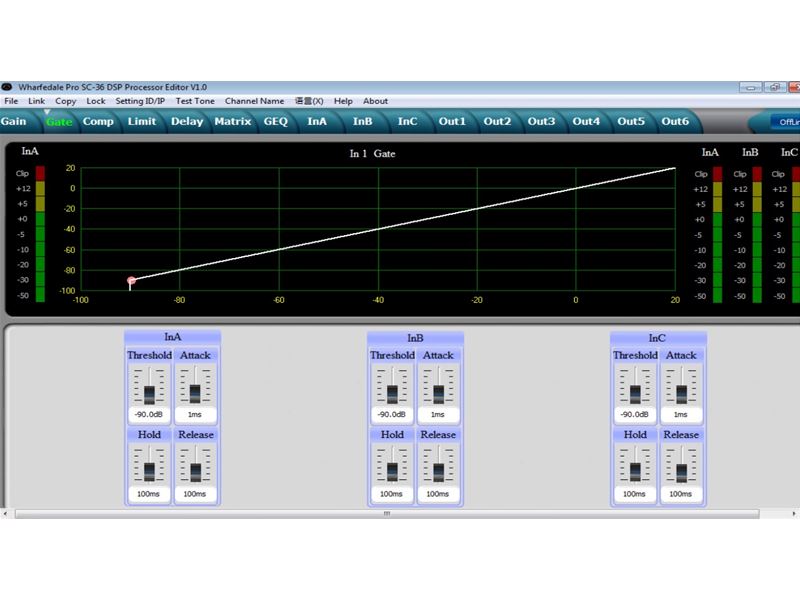

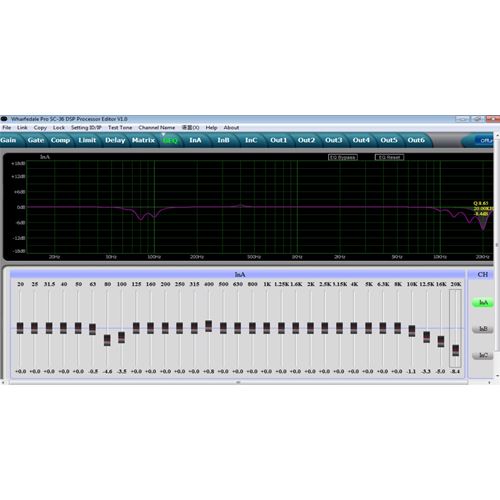

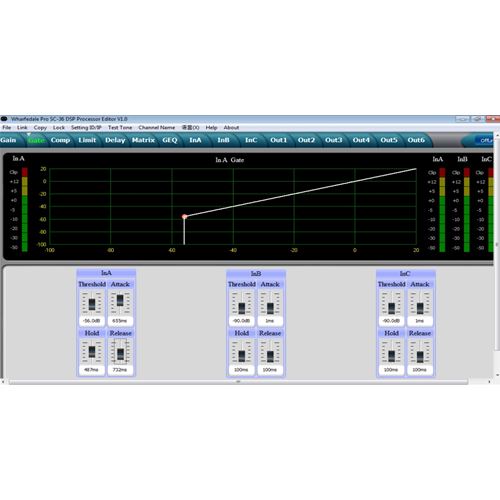

The input side includes Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase and Delay.

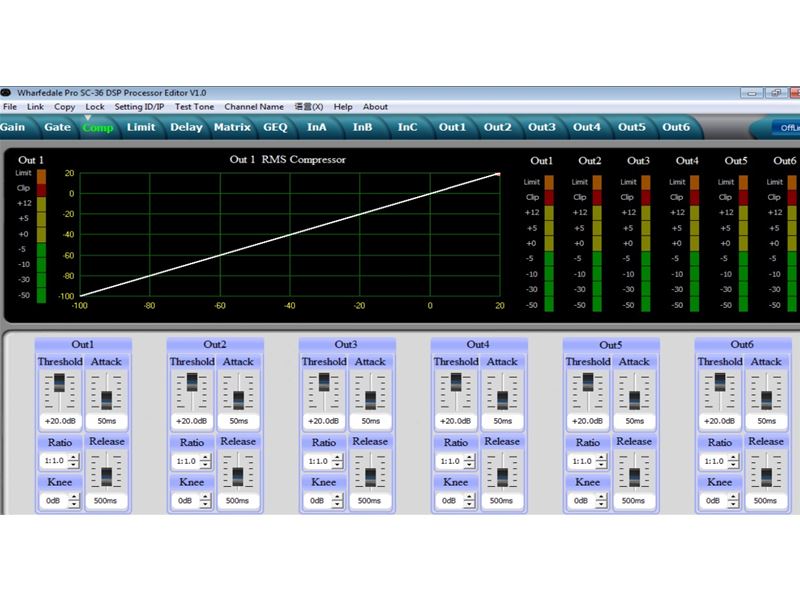

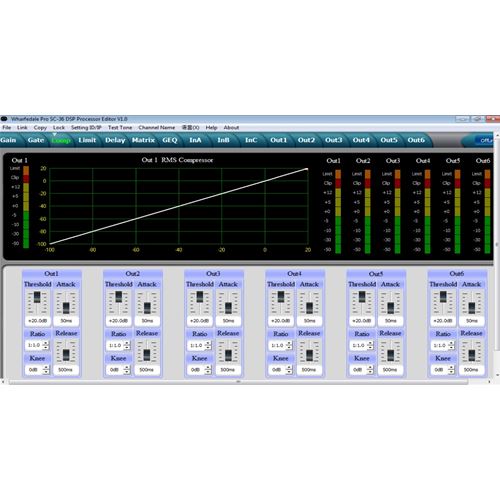

For the output section, make your setup using any combination of Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay and Linking.

EXPAND YOUR RIG

While one Versadrive is powerful in its own right, the RS485 connection opens up capabilities to link up to 255 units, with remote control from up-to 1500 metres.

Complete stadiums, superclubs or any multi-room install is now easily managed by one person on their laptop. The USB connection and supplied software work as another visual aid with access to update your own presets for different events.

  • Complete digital sound processing solution
  • 8-band parametric EQ with low/high shelf
  • Limiter / Crossover / Filter
  • Independent processing for each output channel
  • Password protection for venue install
  • 24-bit 96 KHz AD/DA convertors
  • 40-bit internal processing
  • USB / RS232 and RS485 connectivity
  • User friendly software included


Model Name SC-36
Input Effects Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8PEQ, 31 band graphic EQ, Phase, Delay
Output Effects Crossover, 5PEQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Link

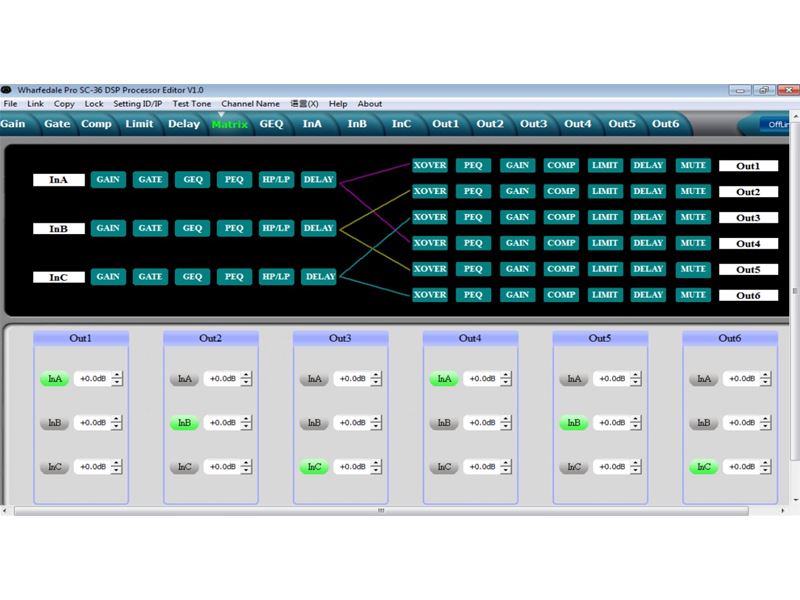

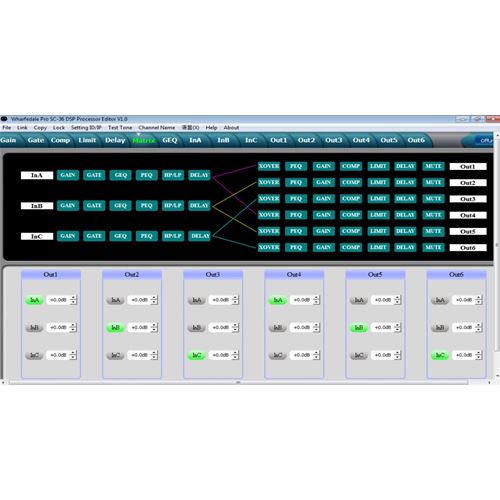

Software Included via CD or download. Full matrix input output control. Intuitive UI.
User Presets 20
Total units linkable 255 via RS485 and optional wireless router
Audio Inputs
SC-24 2 x Balanced XLR
SC-36 3 x Balanced XLR
SC-48 4 x Balanced XLR
Audio Outputs
SC-24 4 x Balanced XLR
SC-36 6 x Balanced XLR
SC-48 8 x Balanced XLR
USB 1 (PC Control)
Ethernet 1
RS232 Port 1
Frequency Response 20 Hz – 20 KHz
S/N Ratio >115 dB
Distortion (THD) <0.005 at 1 KHz (0 dBu)
Max output level +20 dBu
Impedance <500 Ω
D/A Convertors 24-bit Sigma Delta
Sampling Rate 96 KHz
Display 20 x 2 LCD Parameter / Function Display,
5-Segment Led Level Display
Dimensions 480 x 50 x 45 mm
Weight 2.62 kg
