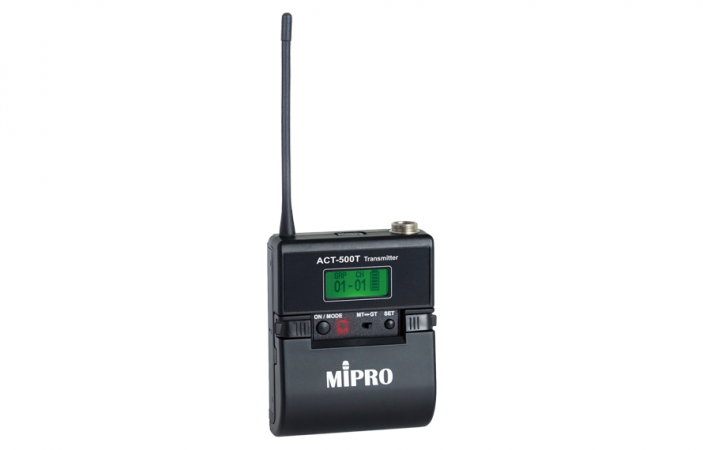

ACT-500T Bodypack
- Newly designed compact and lightweight housing for easy wearing.
- The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information.
- On top of the housing is equipped with an antenna, mute button and mini XLR connector. The Mini XLR audio input connector accepts either a screw-lock or a TA4F quick-lock plug. A remote-control mute jack is for easy activation of the mute function.
- The audio input can be switched to low impedance Mic-in “MT” or high impedance Line-in “GT” to match up the input impedance. The high dynamic range audio input prevents saturation distortion.
- The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
- The patented battery compartment can be inserted with two AA-type batteries or one rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
- A belt clip for easy wearing.
| Model | ACT-500T |
| Name | UHF Narrowband Bodypack Transmitter |
| Mic Capsule Modules | Paired lavalier mic MU-55L or optional other MIPRO’s lavalier and headworn mic capsule modules. |
| Max. Audio Input | 0 dBV |
| Display | Green backlit LCD |
| Frequency Range | UHF 480 ~ 934 MHz (country dependent) |
| Bandwidth | 24 MHz |
| Input Impedance Setting | Low impedance (Mic-in) and high impedance (Line-in) are switchable. |
| RF Power Output | 10 mW / 50 mW switchable (country dependent) |
| Spurious Emission | < 4 nW |
| Battery | One 18500 lithium-ion battery or two AA alkaline |
| Charging Type | USB Type-C with the foolproof and safe charging circuit. |
| Dimensions | 63 × 80 × 25 mm (W×H×D) |
| Weight | Approx. 96 g |
| Note | Refer to the actual product in the event of product discrepancy. |
