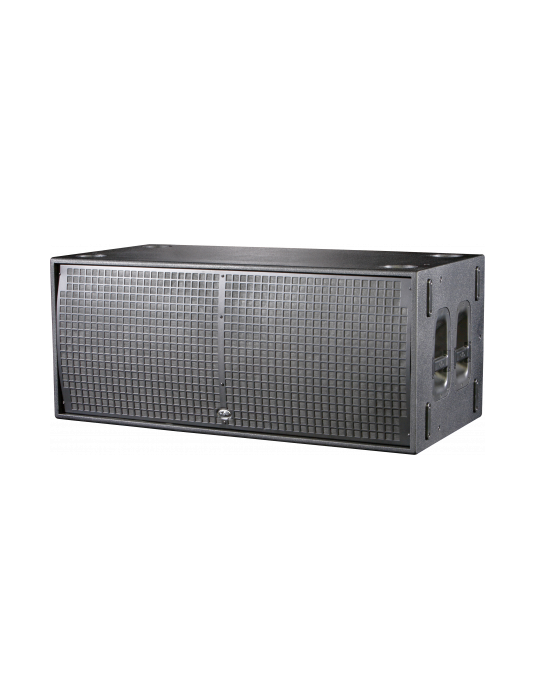

DAS 2400 Watts RMS Dual 18" Ground-Stackable Long Excursion Bass-Reflex Active Subwoofer

LX-218CA

DAS

Whatsapp for enquiry Email for enquiry






The LX-218CA is a powered subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion. The LX-218CA incorporates the 18LXN long excursion cone transducer. The newly developed 18LXN loudspeakers are a significant improvement over their predecessors offering increased power handling, reduced distortion and power compression.

The LX-218CA incorporates a new high power (2400 W) and high-volt­age amplifier design providing ample headroom and accuracy. The amplifier uses the latest Class D design. The automatic dual voltage selector ensures a “no hassle” mains setup anywhere in the world. The amplifier incorporates a selectable preset allowing users to arrange cardioid configurations of 2 or 3 units.

The subwoofer can be stacked vertically on the PL-218CS dolly facilitating transport in touring applications of up to 3 units. For the transport of individual units, an optional rear casters kit (KITW-100) is available. The LX-218CA can be upgraded to the “R” version by way of the optional rigging hardware kit (KITR-LX218C) which includes the captive rigging system, fasteners and 8 mm quick release safety pins needed for one cabinet.


Performance
Frequency Range (-10 dB) 28 Hz – 100 Hz
Maximum Peak SPL at 1 m 142 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 2400 W
Nominal Amplifier Power (peak) 4800 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Loop Thru Connector 1 x Male XLR
AC Output Connector powerCON NAC3FCB
Current Draw 230 V / 115 V 3.1 A/6.2 A
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 555 x 1.285 x 635 mm
21,9 x 50,6 x 25,0 in
Net Weight 82,0 kg ( 180,8 lb )
Components
LF Driver 18LXN
