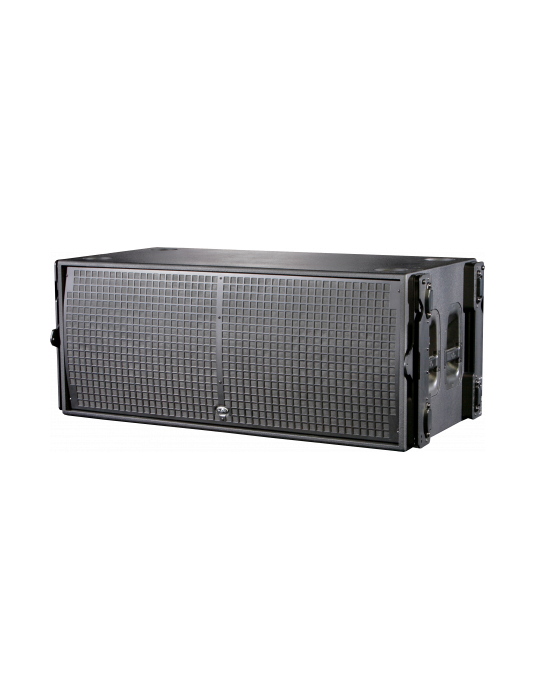

The LX-218CR is a high-power subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion.
The LX-218CR incorporates the 18LXN long excursion cone transducer. The LXN loudspeakers are a significant improvement over their predecessors offering increased power handling, reduced distortion and power compression.

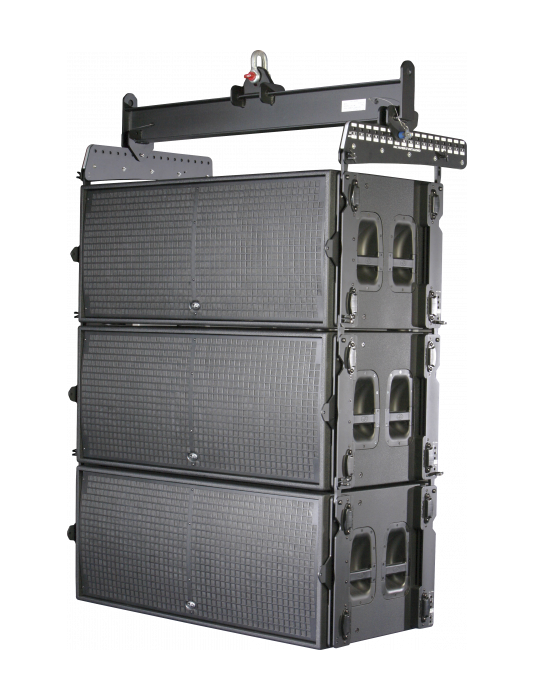

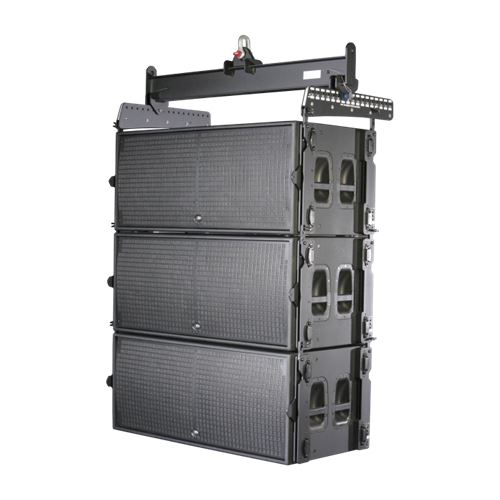

“R” versions are equipped with a captive rigging system that is compatible with DAS Aero-line array accessories. The subwoofers can be stacked vertically on the optional PL-218CS dolly panel facilitating the transport in touring applications of up to 3 units. A front dolly panel (PL-LX218CS) is included with “R” version cabinets and is available as an option for LX-218C cabinets upgraded with rigging hardware.
| Performance | |
| Frequency Range (-10 dB) | 28 Hz – 100 Hz |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 2000 W |
| Peak Power Handling | 8000 W |
| On-axis Sensitivity 1W/1 m | 103 dB SPL |
| Maximum Peak SPL at 1 m | 142 dB |
| Recommended Amplifier | DX-100-230 |
| DX-100-115 | |
| Recommended Processor | DSP-4080 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL8 |
| Audio Output Connector | 1 x speakON NL8 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 700 mm (27,6 in) |
| Dimensions ( H x W x D ) | 555 x 1.355 x 700 mm |
| 21,9 x 53,3 x 27,6 in | |
| Net Weight | 94,5 kg ( 208,3 lb ) |
| Components | |
| LF Driver | 18LXN |
