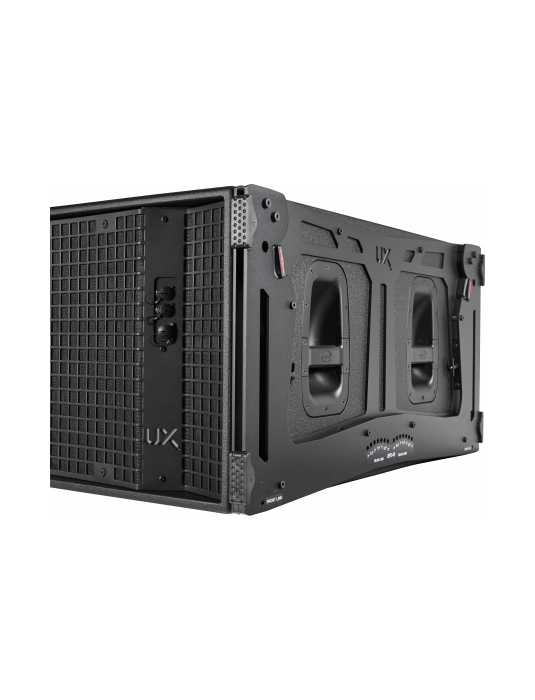

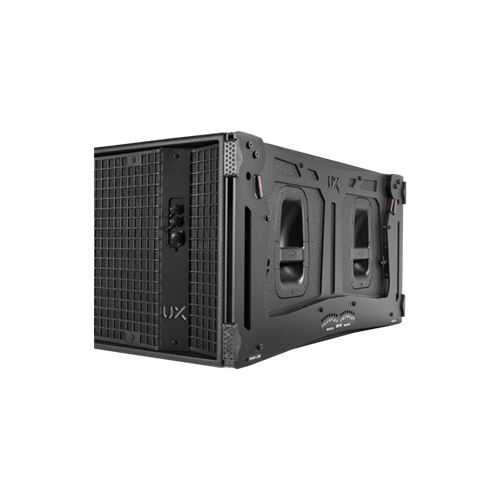

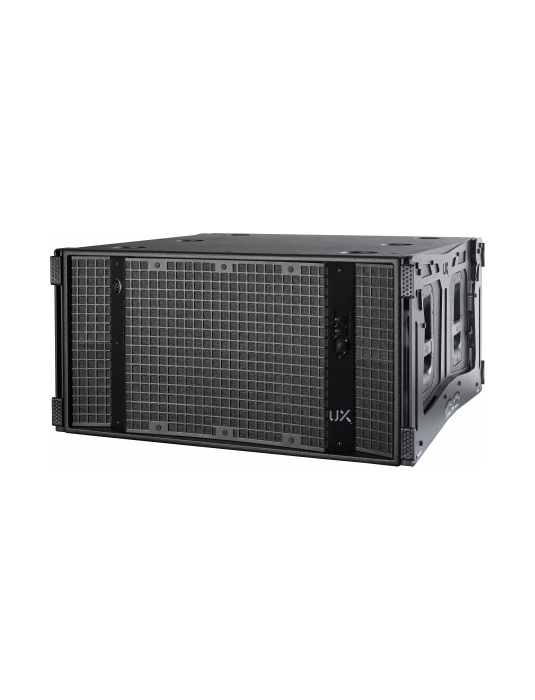

DAS UX Series 2200 Watts RMS Dual 18" Arrayable High Output Crossfire Passive Subwoofer

UX-218-R

DAS

Whatsapp for enquiry Email for enquiry






The UX-218-R joins the new range of UX Series subwoofer systems in both powered and passive versions. The UX-218-R makes use of two 18UXN transducers. The new loudspeaker designed and manufactured by DAS offers impressive features such as a 4″ sandwich split winding voice coil, a remarkable 52 mm peak-to-peak excursion, and a powerful FEA optimized neodymium magnet assembly. Thanks to the double silicon spider, the 18UXN controls the moving mass with high linearity. An aluminum demodulating ring benefits lower distortion and effective ventilation of the voice coil gap provides for a high thermal rating, and reduced power compression.

The enclosure is constructed using Birch plywood and makes use of extensive bracing to eliminate resonances. The woodwork is finished with the robust DAS ISO-flex protective coating for durability. A dolly platform with locking casters denominated the PL-UX218S is offered to stack and move the systems. Protection during transport is provided by the optional covers available from DAS.


Performance
Frequency Range (-10 dB) 28 Hz – 125 Hz
Nominal Impedance 4 ohms
RMS Power Handling 2200 W
Peak Power Handling 8800 W
On-axis Sensitivity 1W/1 m 103 dB SPL
Maximum Peak SPL at 1 m 143 dB
Recommended Amplifier DX-100-230
DX-100-115
Recommended Processor DSP-4080
Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Depth 1.010 mm (39,8 in)
Dimensions ( H x W x D ) 515 x 1.015 x 1.010 mm
20,3 x 40,0 x 39,8 in
Net Weight 95,5 kg ( 210,5 lb )
Components
LF Driver 18UXN
