DAS Rack c/w 1x DASNET-MATRIX99-ETH, 1x DASNET-PATCH-POWER-9 & 1x DISTRO-RACKNET-32-9

DASNET-RACK99-230-ETH

DAS

Whatsapp for enquiry Email for enquiry

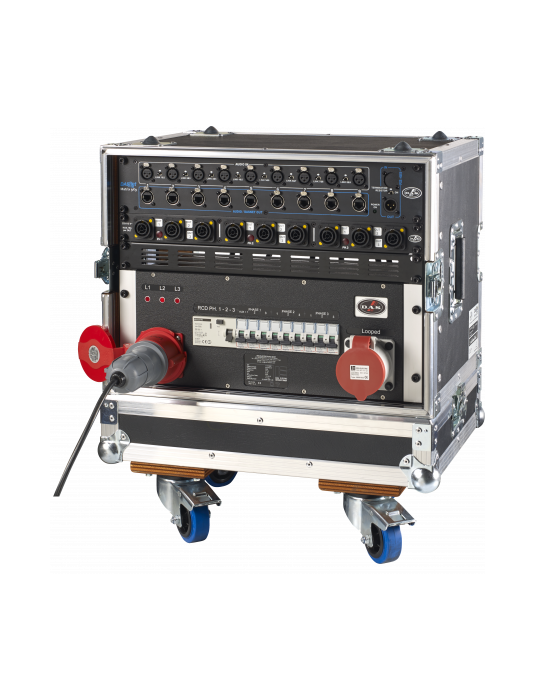

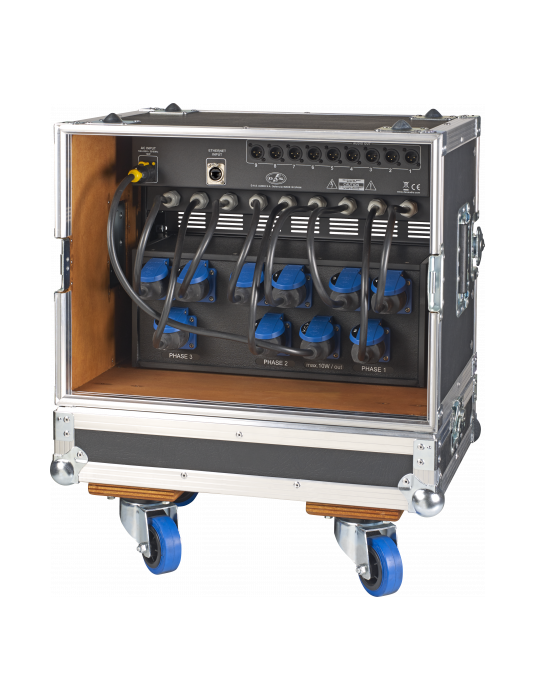

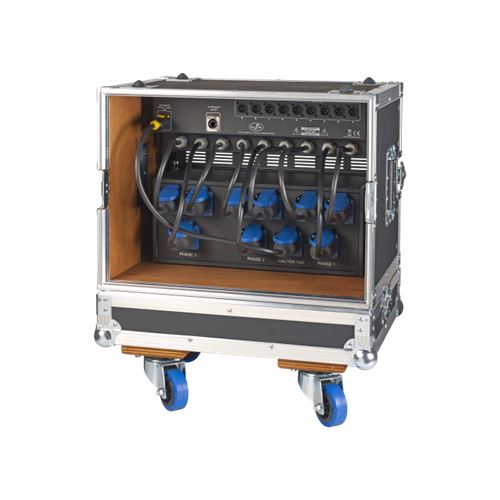

The DASnet™ Rack99 230V ETH is a power, signal and data distribution system assembled in a rugged 8-unit rack. Is composed of three elements: Distro Racknet 32_9 of 32A, DASnet™ Patch Power 9 and DASnet™ Matrix 99 Ethernet.

The Distro Racknet 32_9 is a three-phase power distributor consisting of three-phase input and output connectors, automatic circuit breakers per phase and single-phase output connectors.

The DASnet™ Patch Power 9 provides AC power up to 9 connected devices into the system, in a simple and safe way.

The DASnet™ Matrix 99 distribution module routes 9 balanced audio channels and DASnet™ monitoring data up to 9 zones or clusters with powered D.A.S. systems. Internally has an RS-485 repeater that allows longer distances of cabling in the network and higher number of devices without loosing transmission capabilities.


Electronics and Connectors
Power Distro Type Distro Racknet 32A/400 V
Protections 1 x RCD 40 A/30 mA/4P
9 x MCB 16 A/C/1P
Connectors AC In: 32 A/CEE/400 V/5P
AC Out: 9 x 16 A Shuko+Aux
AC Thru: 32A/CEE/400 V/5P
Audio In: 9 x Female XLR
Audio Link: 8
Audio Out: 2 x Male XLR/9 Rear
DASnet In: Female XLR
DASnet Out: Male XLR
etherCON Out: 9
Dimensions-Weight
Rack size 8 Units
Dimensions ( H x W x D ) 720 x 550 x 425 mm
28,3 x 21,6 x 16,7 in
Net Weight 33,2 kg ( 73,2 lb )
