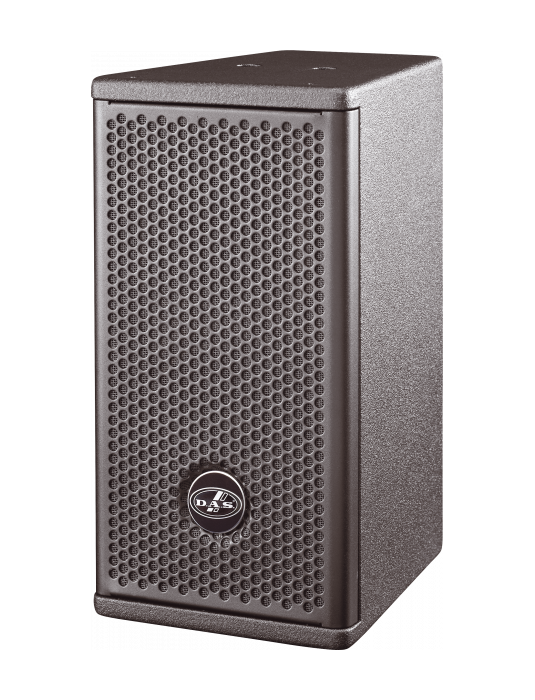

DAS ARTEC 300 Series 100 Watts RMS 6" 2-Way Fullrange Passive Loudspeaker (Black)

ARTEC-306

DAS

Whatsapp for enquiry Email for enquiry






The ARTEC-306 2-way passive full range loudspeaker utilizes a 6″ low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. Thanks to its small size, it is ideal for venues with low ceilings, or limited space.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount.


Performance
Frequency Range (-10 dB) 70 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Nominal Impedance 8 ohms
RMS Power Handling 100 W
Peak Power Handling 400 W
On-axis Sensitivity 1W/1 m 90 dB SPL
Maximum Peak SPL at 1 m 116 dB
Recommended Amplifier PA-900
Recommended Processor DSP-226

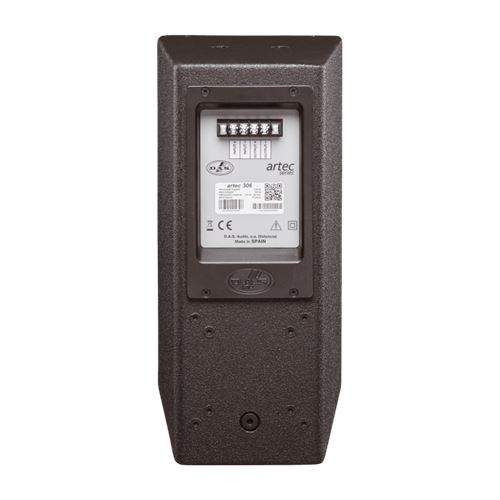

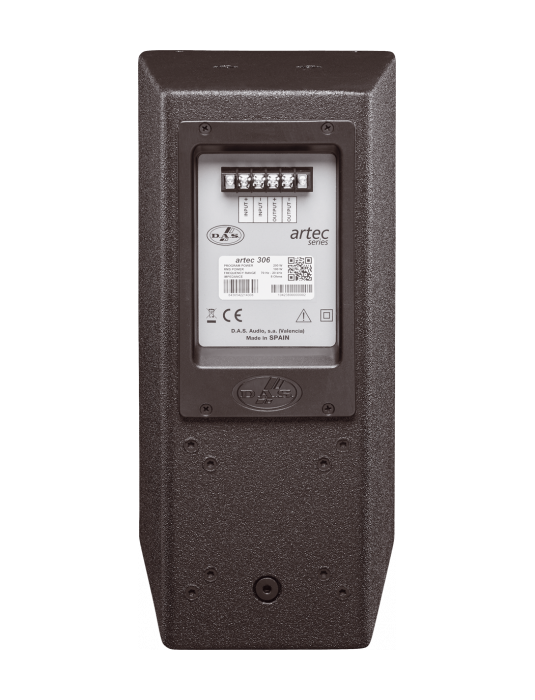

Connectors
Audio Input Connector Covered Barrier Strip Terminals
Audio Output Connector Covered Barrier Strip Terminals
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Depth 260 mm (10,2 in)
Dimensions ( H x W x D ) 385 x 195 x 260 mm
15,2 x 7,7 x 10,2 in
Net Weight 7,2 kg ( 15,8 lb )
Components
LF Driver 6B
HF Driver M-26
Horn/Waveguide BCT-96
