DAS ARTEC 300 Series 250 Watts RMS, Rotatable 60º x 40º Horns, 10" 2-Way Passive Fullrange Loudspeaker (Black)

ARTEC-310.64

DAS

Whatsapp for enquiry Email for enquiry

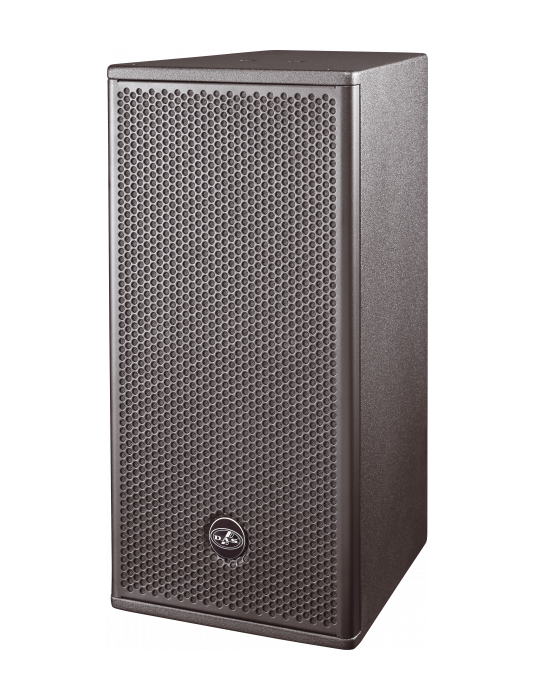

The ARTEC-310.64 is a compact 2-way full-range loudspeaker system comprised of one 10″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguideprovides 60° x 40° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

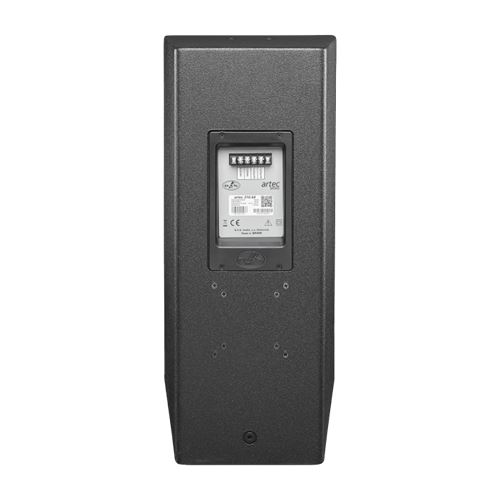

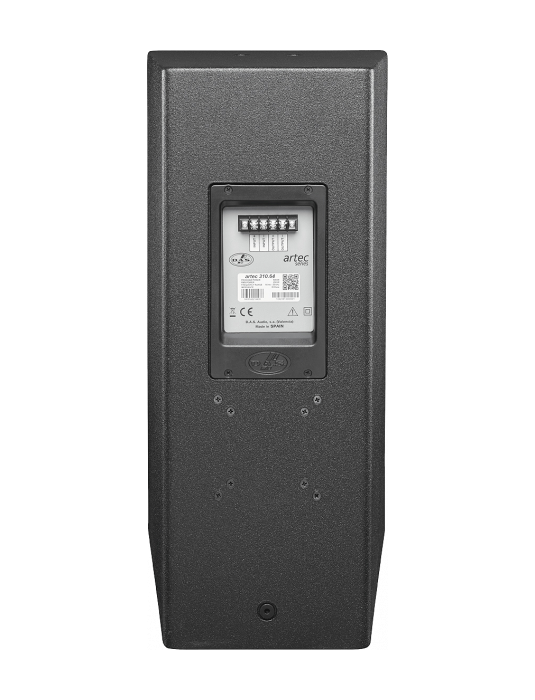

The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount.


Performance
Frequency Range (-10 dB) 50 Hz – 20 kHz
Horizontal Coverage (-6 dB) 60º
Vertical Coverage 40º
Nominal Impedance 8 ohms
RMS Power Handling 250 W
Peak Power Handling 1000 W
On-axis Sensitivity 1W/1 m 96 dB SPL
Maximum Peak SPL at 1 m 126 dB
Recommended Amplifier PA-900
Recommended Processor DSP-226
Connectors
Audio Input Connector Covered Barrier Strip Terminals
Audio Output Connector Covered Barrier Strip Terminals
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Depth 345 mm (13,6 in)
Dimensions ( H x W x D ) 610 x 295 x 345 mm
24,0 x 11,6 x 13,6 in
Net Weight 15,5 kg ( 34,2 lb )
Components
LF Driver 10MI
HF Driver M-34
Horn/Waveguide BC-614
