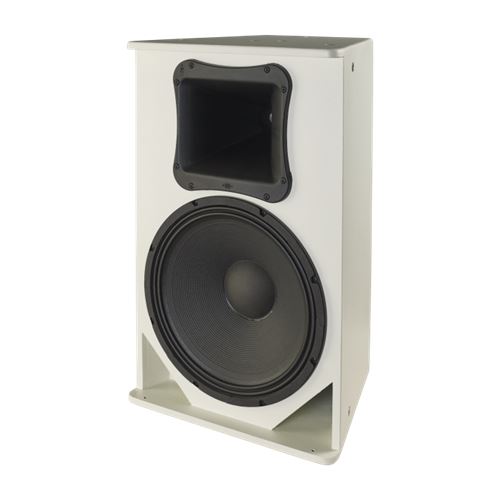

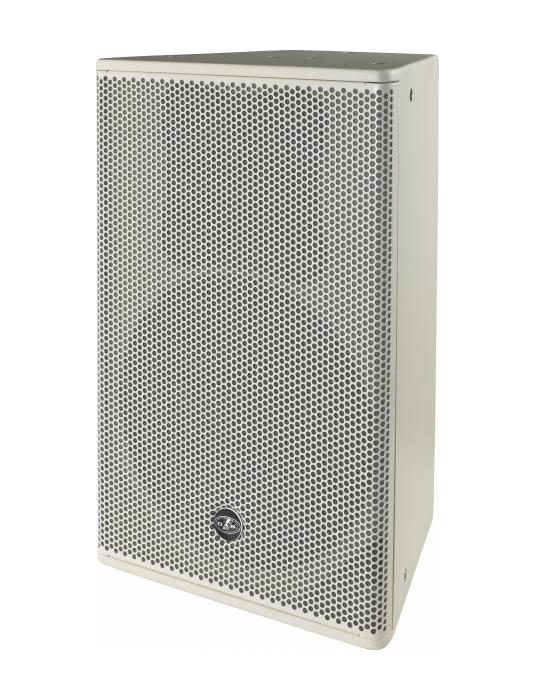

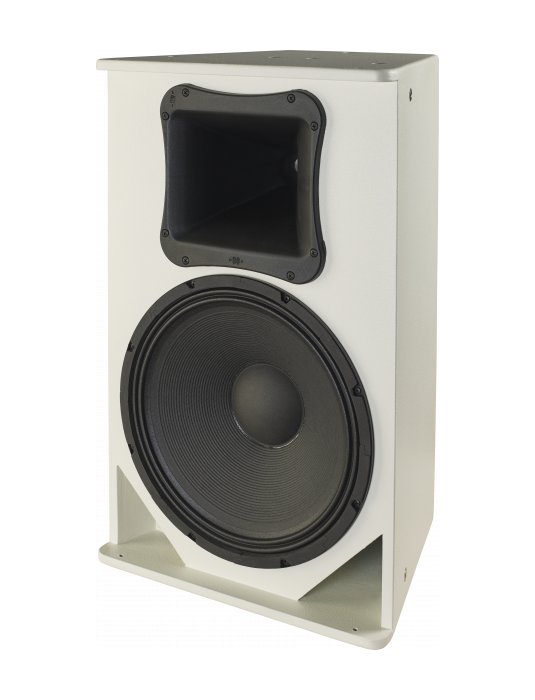

The ARTEC-315.64-W is a compact 2-way full-range loudspeaker system comprised of one 15″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 60° x 40° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration.
The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 18 kHz |
| Horizontal Coverage (-6 dB) | 60º |
| Vertical Coverage | 40º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 350 W |
| Peak Power Handling | 1400 W |
| On-axis Sensitivity 1W/1 m | 90 dB SPL |
| Maximum Peak SPL at 1 m | 127 dB |
| Recommended Amplifier | PA-1500 |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | White |
| Depth | 380 mm (15,0 in) |
| Dimensions ( H x W x D ) | 715 x 445 x 380 mm |
| 28,1 x 17,5 x 15,0 in | |
| Net Weight | 21,5 kg ( 47,3 lb ) |
| Components | |
| LF Driver | 15MI |
| HF Driver | M-34 |
| Horn/Waveguide | BC-614 |
