DAS ELEVEN SOUND Series 800 Watts 12" Bass-Reflex Passive Subwoofer

ES-212

DAS

Whatsapp for enquiry Email for enquiry






ES-212

Passive Subwoofer
3200W | 132 dB |37 Hz- 300 Hz

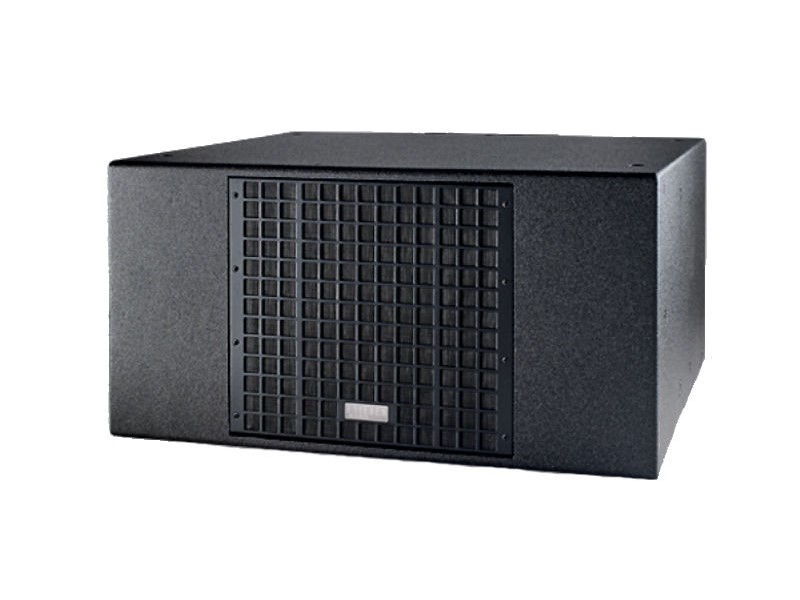

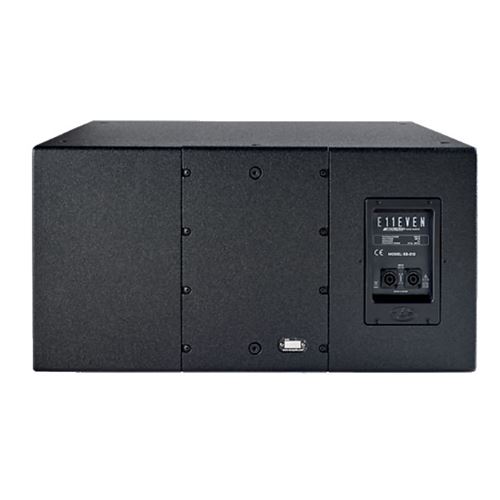

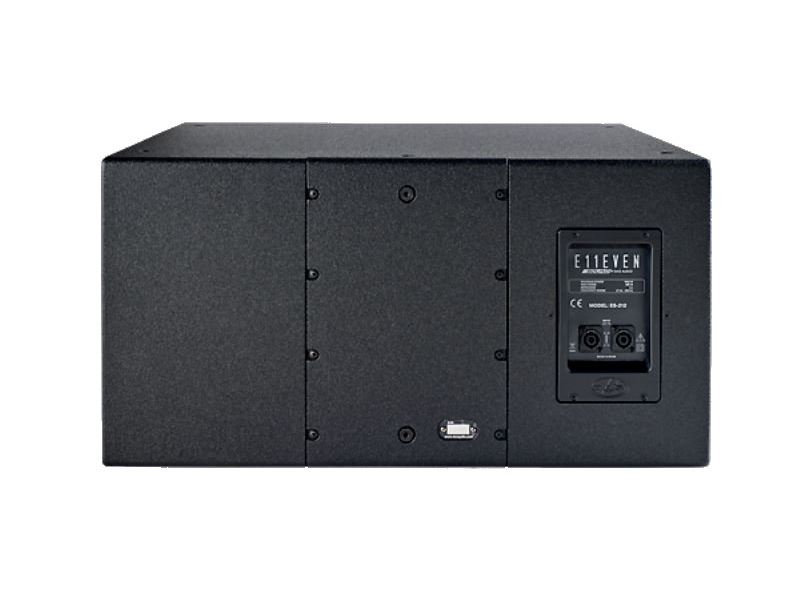

The ES-212 is a compact bass-reflex subwoofer system incorporating two 12P low frequency with 3′′ voice coils. Designed to be used in bi-amplified systems, the ES-212 has a power handling capacity of 1600 Wprogram and is capable of maximum peak SPL of a 132 dB. The compact ES-212 enclosure design is ideal for smaller clubs or auxiliary club floors when used in combination with E11EVEN Sound satellite systems such as the ES-10.

The cabinet are designed using top grade birch plywood and protected with an impact resistant ISO-flex paint. The f ront elements of the cabinet are protected using a solid metal grill assisted by an acoustically transparent fabric.



Frequency Range (-10 dB) 37 Hz – 300 kHz
Nominal Impedance 4 ohms
RMS Power HandlingPeak 800W
Power HandlingOn-axis 3200 W
Sensitivity 1W/1 mMaximum 98 dB SPL
Maximum Peak SPL at 1m 132 dB
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Net Weight 42,5 kg (93,5 lb)
Dimensions

370 x 710 x 690 mm
14,6 x 28 x 27,2 in
