DAS EVENT Series 1800 Watts RMS Dual 18" Ground-Stackable Long Excursion Bass-Reflex Active Subwoofer

EVENT-218A

DAS

Whatsapp for enquiry Email for enquiry

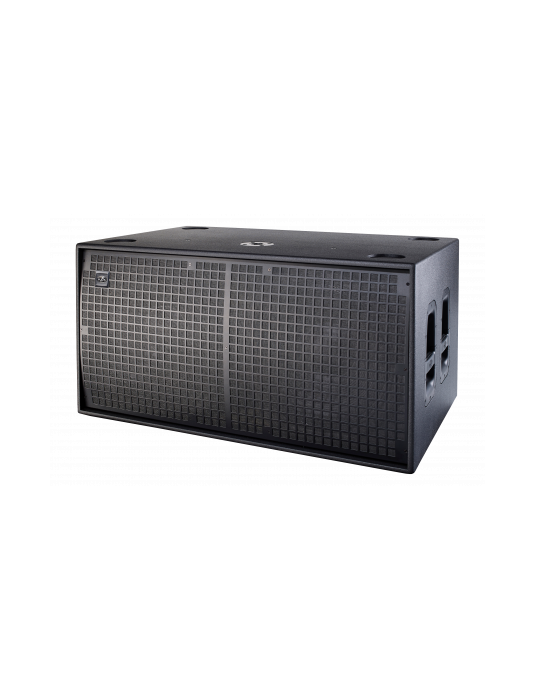

The EVENT-218A dual 18” powered subwoofer makes use of one of DAS´s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.

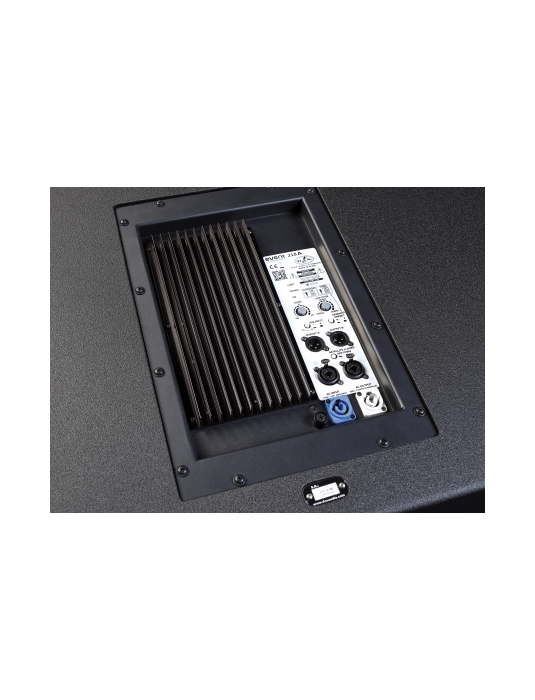

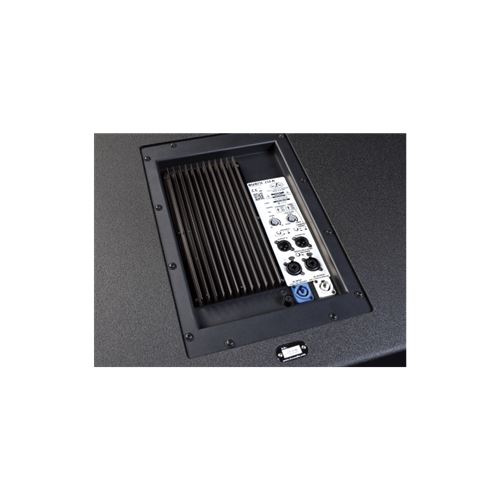

The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.


Performance
Frequency Range (-10 dB) 32 Hz – 125 Hz
Maximum Peak SPL at 1 m 140 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 1800 W
Nominal Amplifier Power (peak) 3600 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 6.2 V (+18 dBu)
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 2 x Male XLR
AC Output Connector powerCON NAC3FCB
Current Draw 230 V / 115 V 3.0 A/6.0 A
Certification Number NRTL US&CA SGSNA/19/SUW/00110
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 550 x 1.065 x 675 mm
21,7 x 41,9 x 26,6 in
Net Weight 68,5 kg ( 151,0 lb )
Components
LF Driver 18LX
