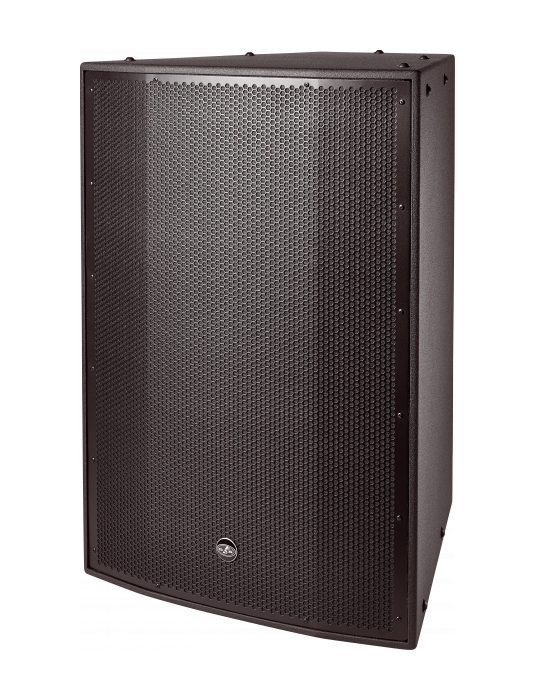

DAS HQ Series (HF) 150W (MF) 400W, 40º x 30º Coverage Angles, 12" 2-Way Long Throw Passive Loudspeaker with Covered Exposure

HQ-112.43-CX

DAS

Whatsapp for enquiry Email for enquiry






The HQ-112.43 is offered in two exposure ratings-“covered exposure” (CX) for applications where cabinets are covered or protected, and “direct exposure” (DX) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex coating on both the exterior and interior surfaces. The DX versions augment the protection rating by employing a fiberglass exterior and a gel coat sealed interior. Both versions are rated IP54.


Performance
Frequency Range (-10 dB) 80 Hz – 18 kHz
Horizontal Coverage (-6 dB) 40º
Vertical Coverage 30º
Nominal Impedance Passive: 8 ohms
Nominal Impedance MF 8 ohms
Nominal Impedance HF 8 ohms
RMS Power Handling Passive: 400 W
RMS Power Handling HF 150 W
RMS Power Handling MF 400 W
Peak Power Handling Passive: 1600 W
Peak Power Handling MF 1600 W
Peak Power Handling HF 400 W
On-axis Sensitivity 1W/1 m Passive: 111 dB SPL
On-axis Sensitivity 1W/1 m MF 111 dB SPL
On-axis Sensitivity 1W/1 m HF 112 dB SPL
Maximum Peak SPL at 1 m Passive: 143 dB
Maximum Peak SPL at 1 m MF 143 dB
Maximum Peak SPL at 1 m HF 140 dB
Recommended Amplifier DX-100I-230
DX-100I-115
DX-80I-230
DX-80I-115

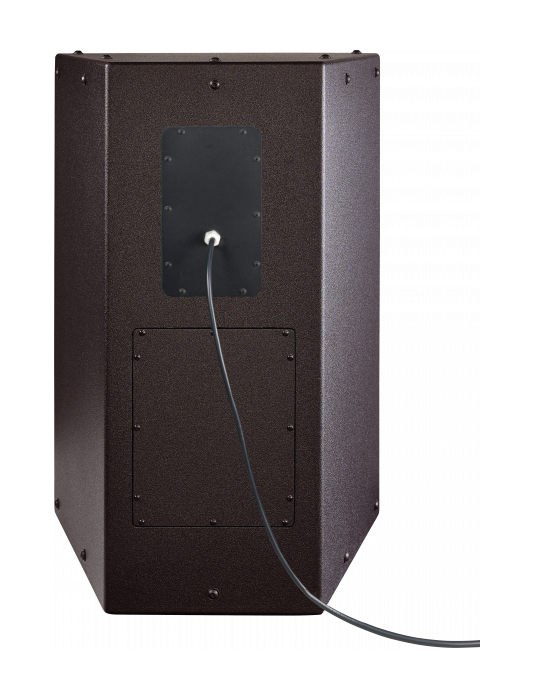

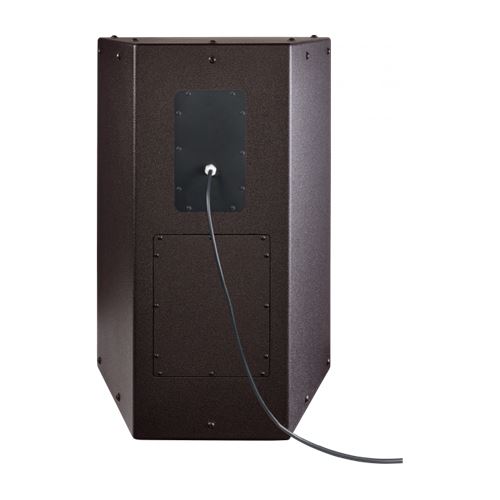

Connectors
Audio Input Connector 1 x speakON NL4
Covered Barrier Strip Terminals
Audio Output Connector 1 x speakON NL4
Covered Barrier Strip Terminals
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish Fiberglass
Color Black
Depth 720 mm (28,4 in)
Dimensions ( H x W x D ) 990 x 685 x 720 mm
39,0 x 27,0 x 28,4 in
Net Weight 62,5 kg ( 137,8 lb )
Components
LF Driver 12HQN
HF Driver M-78N
Horn/Waveguide BCH-4030-7037
BCM-4030-7037
