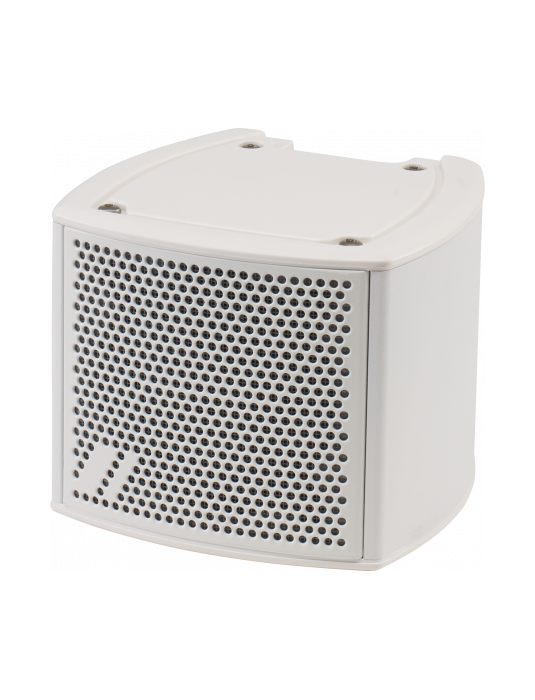

DAS QUANTUM Series 20 Watts RMS 3" Fullrange Passive Loudspeaker with Transformer (White)

Q-3-TW

DAS

Whatsapp for enquiry Email for enquiry






The Q-3 is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.

The aluminum enclosure and the IP-66 kit make this a highly reliable and durable choice, available in any RAL color.


Performance
Frequency Range (-10 dB) 150 Hz – 20 kHz
Horizontal Coverage (-6 dB) 120º
Vertical Coverage 120º
Nominal Impedance 8 ohms
Transformer Taps 70 V 3.5 W – 7.5 W – 10 W
Transformer Taps 100 V 7.5 W – 15 W – 20 W
RMS Power Handling 20 W
Peak Power Handling 80 W
On-axis Sensitivity 1W/1 m 87 dB SPL
Maximum Peak SPL at 1 m 106 dB SPL
Recommended Amplifier INTEGRAL-A402
INTEGRAL-A404
Recommended Processor DSP-226
Connectors
Audio Input Connector 4-way Phoenix 2.54 mm
Enclosure
Enclosure Construction Aluminum
Color White
IP Rating IP66
Depth 125 mm (4,9 in)
Dimensions ( H x W x D ) 105 x 125 x 125 mm
4,1 x 4,9 x 4,9 in
Net Weight 1,6 kg ( 3,5 lb )
