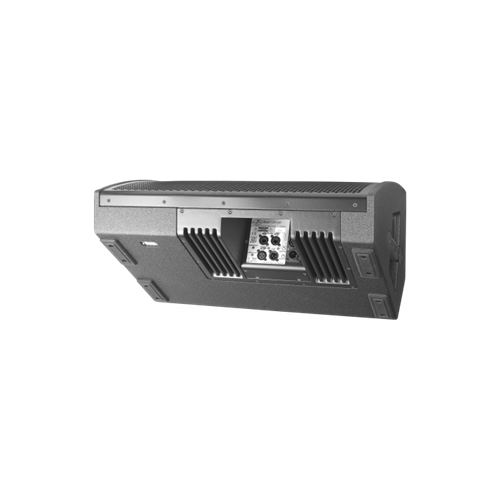

DAS ROAD Series (LF) 550W RMS (HF) 220W RMS 12" 2-Way Fullrange Active Stage Monitor Speaker with DASnet (Left & 115V)

ROAD-12ALT-NET115

DAS

Whatsapp for enquiry Email for enquiry






The ROAD-12ALT-NET is a powered stage monitor that incorporates a 12R4 cone loudspeaker for bass reproduction. High frequencies are handled by an M-75 compression driver with 1.5” exit, a 3” titanium diaphragm and EFW voice coil.

The biamplified system uses a 3G Class “D” amplifier with 550 W powering the low frequency section and a 220 W powers the highs. The montior´s compact dimensions, attractive design and standard pole mount socket make it ideal for use as a pole mountable multi-purpose system.

Remote monitoring and control is provided by way of DASnet™, the audio management application for DAS powered cabinets and processors which offers users instant and intuitive view of the system status as well as control over a range of parameters of a single cabinet or a network of them.


Performance
Frequency Range (-10 dB) 55 Hz – 23 kHz
Horizontal Coverage (-6 dB) 40º
Vertical Coverage 60º
Maximum Peak SPL at 1 m 134 dB
Electronics and Connectors
Nominal Amplifier Power LF (continuous) 550 W
Nominal Amplifier Power LF (peak) 1100 W
Nominal Amplifier Power HF (continuous) 220 W
Nominal Amplifier Power HF (peak) 440 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.55 V (+6 dBu)
Audio Signal Loop Thru Connector 1 x Male XLR
Audio/Data Input Connector etherCON
Control DASnet™
Audio + Data Loop Thru Connector etherCON
AC Output Connector powerCON TRUE1
Current Draw 230 V / 115 V -/3.4 A
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 325 x 645 x 470 mm
12,8 x 25,4 x 18,5 in
Net Weight 26,0 kg ( 57,3 lb )
Components
LF Driver 12R4
HF Driver M-75
Horn/Waveguide BC-64AL
