DAS ROAD Series (LF) 550W RMS (HF) 220W RMS 15" 2-Way Fullrange Active Stage Monitor Speaker (Left & 115V)

ROAD-15ALT-115

DAS

Whatsapp for enquiry Email for enquiry

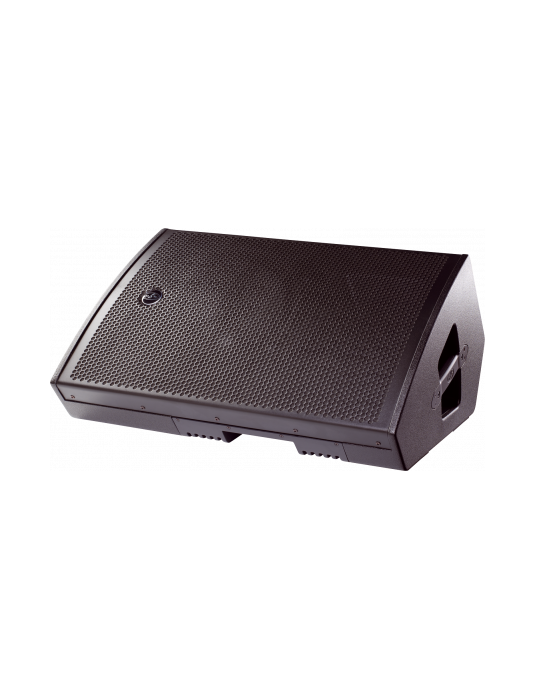

The ROAD-15ALT is a powered stage monitor that incorporates a 15R4 cone loudspeaker for bass reproduction. High frequencies are handled by an M-75 compression driver with 1.5” exit, a 3” titanium diaphragm and EFW voice coil.

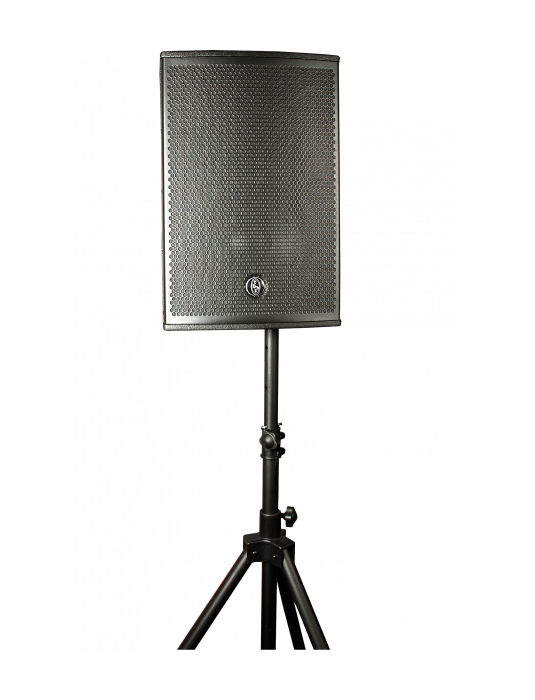

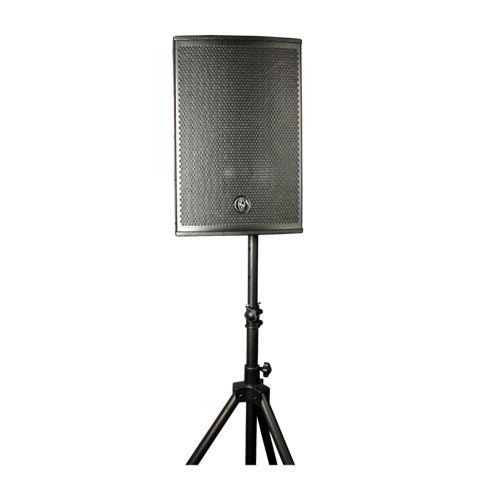

The biamplified system uses a 3G Class “D” amplifier with 550 W powering the low frequency section and a 220 W powers the highs. The montior´s compact dimensions, attractive design and standard pole mount socket make it ideal for use as a pole mountable multi-purpose system.


Performance
Frequency Range (-10 dB) 47 Hz – 23 kHz
Horizontal Coverage (-6 dB) 40º
Vertical Coverage 60º
Maximum Peak SPL at 1 m 134 dB
Electronics and Connectors
Nominal Amplifier Power LF (continuous) 550 W
Nominal Amplifier Power LF (peak) 1100 W
Nominal Amplifier Power HF (continuous) 220 W
Nominal Amplifier Power HF (peak) 440 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.55 V (+6 dBu)
Audio Signal Loop Thru Connector 1 x Male XLR
AC Output Connector powerCON NAC3FCB
Current Draw 230 V / 115 V -/3.4 A
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 375 x 745 x 535 mm
14,8 x 29,3 x 21,1 in
Net Weight 30,5 kg ( 67,3 lb )
Components
LF Driver 15R4
HF Driver M-75
Horn/Waveguide BC-64AL
