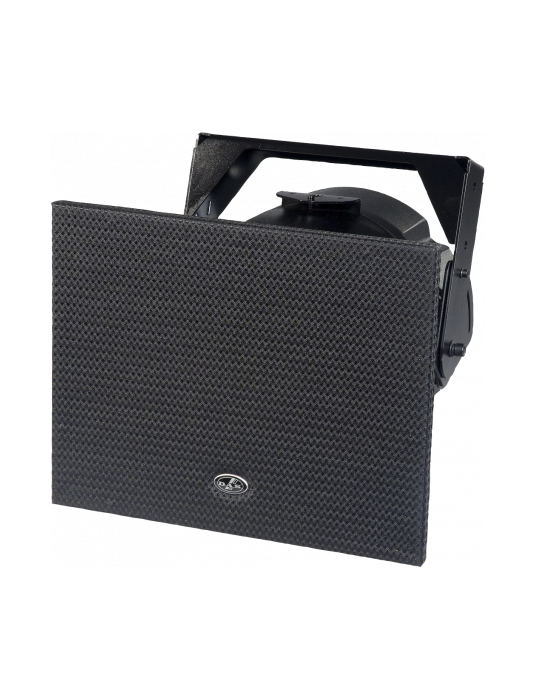

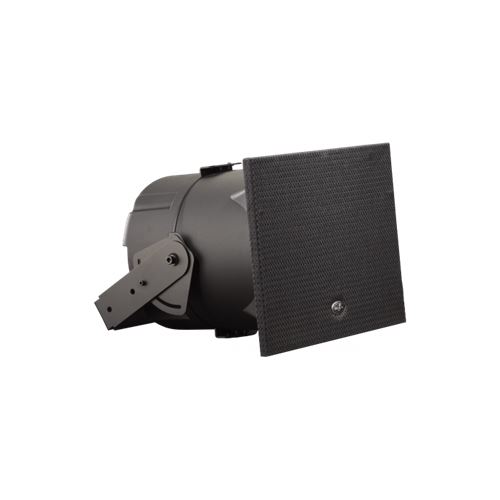

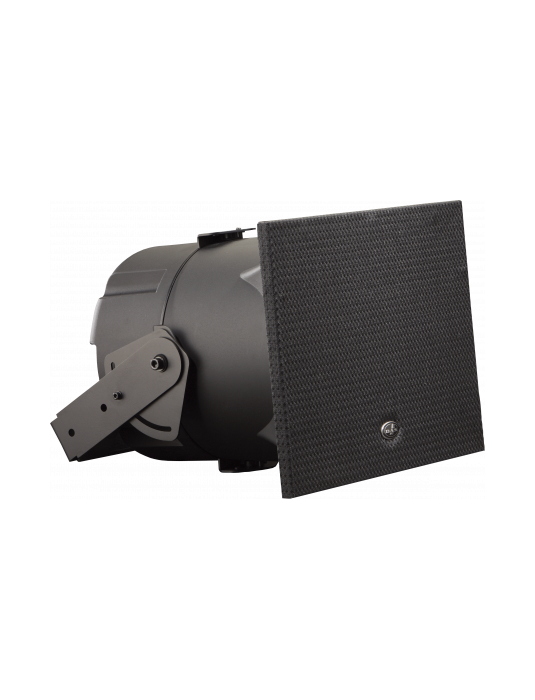

DAS 300 Watts RMS 10" Long-Throw Mid-High Passive Coaxial Speaker

BIDRIVER-PLUS

DAS

Whatsapp for enquiry Email for enquiry






The BIDRIVER-PLUS is comprised of a coaxial loudspeaker which incorporates a 10″ cone transducer with a 4″ voice coil. The massive magnet structure and top plates provide efficient heat evacuation for low power compression. The high frequency unit incorporates a 4″ titanium diaphragm and voice coil assembly. The aluminum phase corrector guarantees coherent and linear frequency response.

The BIDRIVER-PLUS can be used successfully in applications requiring high intelligibility of the human voice and music reproduction not requiring bass reinforcement. The unit is capable of developing high sound pressure levels covering large distances with a clear and defined reproduction of the message. It is especially adequate for large open areas requiring a «long throw». The BIDRIVER-PLUS IP54 can be equipped with a line transformer for distributed systems and is designed to comply with the IP54 standards for outdoor use.


Performance
Frequency Range (-10 dB) 160 Hz – 12 kHz
Horizontal Coverage (-6 dB) 60º
Vertical Coverage 55º
Nominal Impedance 8 ohms
RMS Power Handling 300 W
Peak Power Handling 1200 W
On-axis Sensitivity 1W/1 m 104 dB SPL
Recommended Amplifier INTEGRAL-A1002
INTEGRAL-A1004
Connectors
Audio Input Connector Covered Barrier Strip Terminals
Audio Output Connector Covered Barrier Strip Terminals
Enclosure
Enclosure Construction Polyurethane
Color Black
Depth 405 mm (15,9 in)
Dimensions ( H x W x D ) 400 x 450 x 405 mm
15,7 x 17,7 x 15,9 in
Net Weight 17,0 kg ( 37,5 lb )
Components
LF Driver CX-104
Horn/Waveguide D-BID-6055
