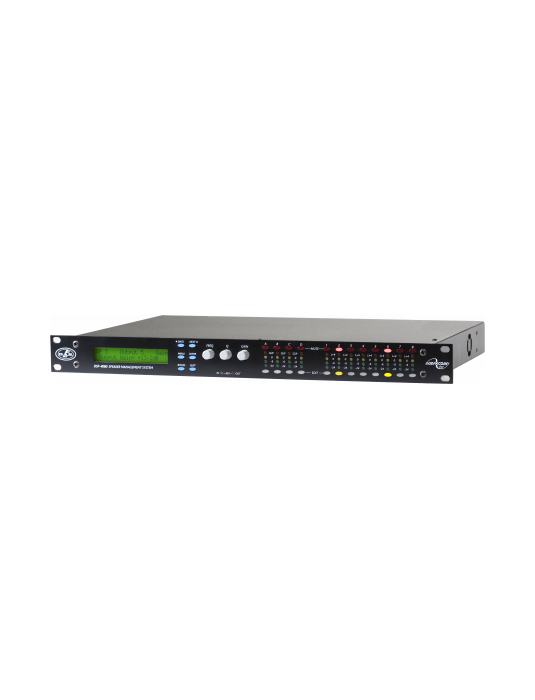

DAS DSP Series 4 In 8 Out Full Configurable Digital Signal Processor with 9 Full Bandwidth Parametric Band EQ & DASnet

DSP-4800

DAS

Whatsapp for enquiry Email for enquiry






The DSP-4080 is a powerful DSP based audio processor, ideally suited for install and live applications, where it combines the functions of a multitud of conventional products in a compact unit.


Electronics and Connectors
CMRR >65dB, 50 Hz to 10 kHz
Total Harmonic Distortion <0.02% @ 1KHz +18dBm
Sampling Rate 96 kHz
Crossover Filters 6, 12, 18, 24, 48 dB/oct Bessel, Butterworth, Linkwitz-Riley
Limiter Attack Time Variable
Limiter Release Time Variable
Limiter Threshold +22 dBu to -10 dBu
Maximum Delay 650 ms
Maximum Output Level +20 dBm into 600 ohms
Output Gain +15 dB to -40dB in 1 step
Current Draw 230 V a:0:{}

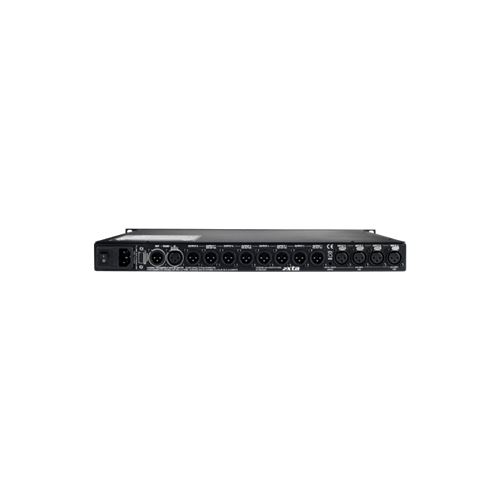

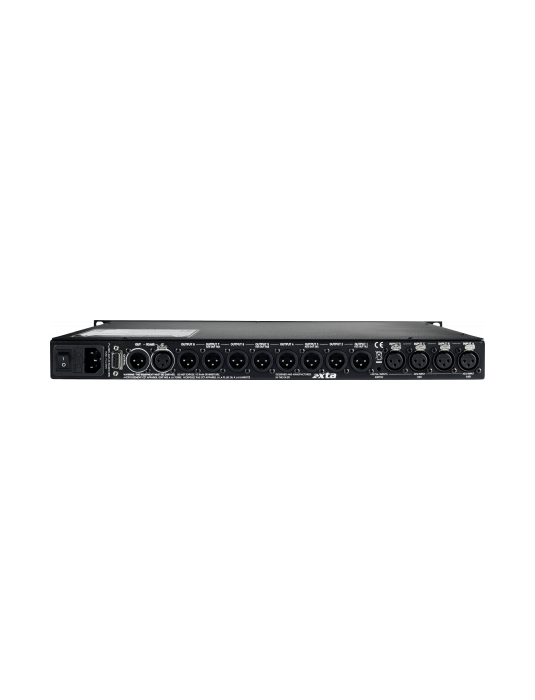

Audio Signal Input Connector 4 x Female XLR
RS485 In/Out XLRs
RS232 9 Pin (Female) D Connector
Certification Number CB GB-6949-Z/M1
Dimensions-Weight
Dimensions ( H x W x D ) 44 x 482 x 300 mm
1,7 x 19,0 x 11,8 in
Net Weight 3,3 kg ( 7,3 lb )
