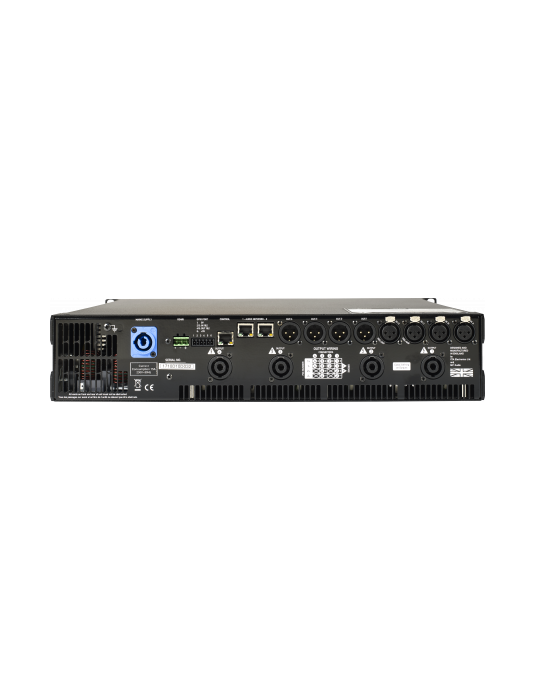

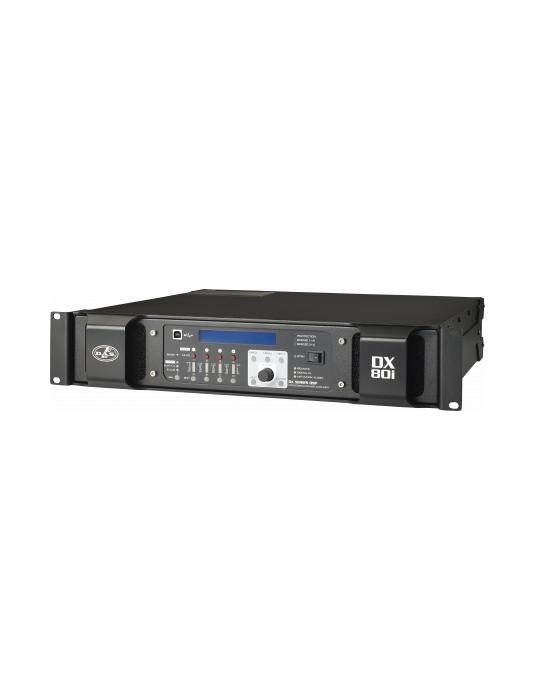

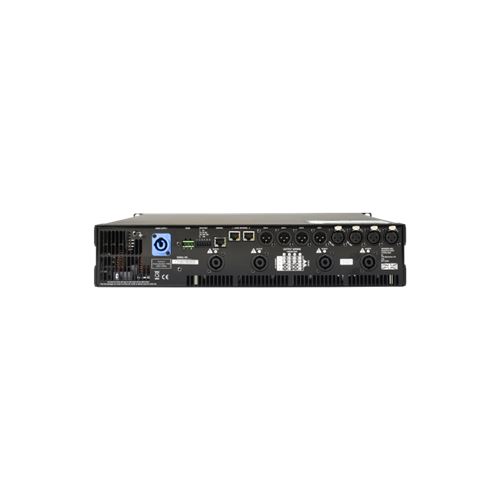

DAS DX Series Quad-Channel 1000 Watts @ 8 Ohms Amplifier with 4 In 8 Out DSP & Dante Inputs (230V)

DX-80I-230

DAS

Whatsapp for enquiry Email for enquiry






The DX-80i are DSP processing amplifiers that offer the same power outputs as the DX-80. The DX-80i accepts analogue, AES3 digital and optional Dante networked audio.

The DX-80i can connect to any source and make it available over the network, as well as processing four additional channels with local analogue outputs to connect to non-DSP DX Series amplifiers. These auxiliary processed outputs can also be fed onto the network, and used by non-DSP DX amplifiers that have Dante cards fitted, or by any other Dante enabled device.

Connectivity for remote control is covered by USB, Ethernet and RS485, with relay of either USB or Ethernet control via RS485 to work with legacy products.


Output Power Ratings
Power 8 Ohms, Both Channels Driven 4 x 1000 W
Power 8 Ohms Bridged 4000 W
Power 4 Ohms, Both Channels Driven 4 x 2000 W
Power 4 Ohms, Bridged 4000 W
Electronics and Connectors
Amplifier Channels 4
Output Circuitry Class D
Frequency Response 0.5 dB (20 Hz – 20 kHz)
Total Harmonic Distortion < 0,2 %
Input Impeadance 20 kohms
Voltage gain 32 dB
Damping Factor > 400
Controls Power On/Off, Channel Mute, Rotary Encoder, Edit Keys, Bank Keys, Navigation Keys
Cooling Front-to-Back
Amplifier Protections Protection Present , Short Circuit, DC Output, Temperature
LED Indicators LCD SCreen, Power On, Channel Output Level, Channel Linked, Protection, Bridged Pairs, Standby, Network Audio, Remote Control, Digital In
Networking Dante
Audio Signal Input Connector 4 x Female XLR
Speaker Output Connector 4 x speakON
Current Draw 230 V / 115 V 5 A / 10.0 A
Certification Number NRTL: NA201810857, CNEMKO: NA201810857
Dimensions-Weight
Dimensions ( H x W x D ) 88 x 485 x 425 mm
3,5 x 19,0 x 16,7 in
Net Weight 10,3 kg ( 22,7 lb )
