DAS INTEGRAL Series 8 Ch Matrix, Integrated DSP, 4 Independent Analog Inputs, 8 Analog Output Channels, 4 x 4 CH DANTE Digi

INTEGRAL-M88

DAS

Whatsapp for enquiry Email for enquiry

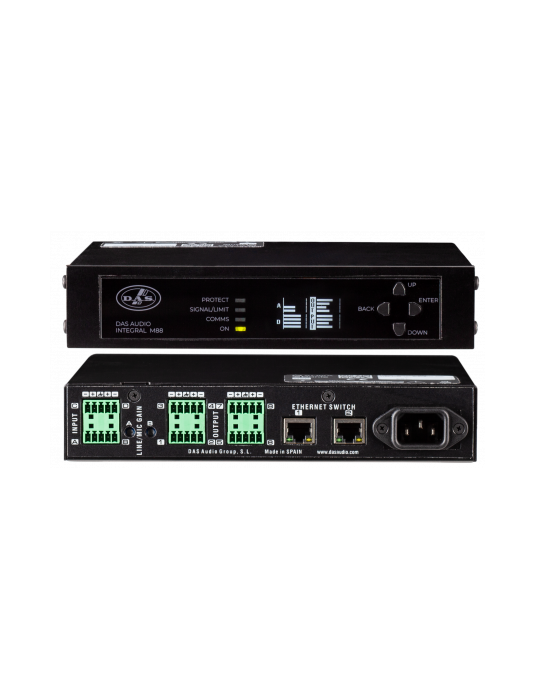

INTEGRAL-M88 is a half rack mount 1U size installation matrix with 4 analog input channels and eight analog output channels. Besides the analog audio inputs and outputs, a DANTE digital audio 4×4 chipset is included by default with the units. Control, configuration and management of the devices shall be done via ALMA software over IP or using Open Sound Control (OSC) protocol.

Priority capabilities, full matrix and routing options make this unit essential as the ”brain” of any type of installation. The internal memory resources allow to store more than 100 “global presets” and more than 200 “output channel presets” (speaker presets). A bank of output channel presets with specific processing parameters for all DAS Audio speakers is included allowing the users to configure each channel independently. For instance, it would be possible to recall for output 1 the preset of Q-23T, for output 2 the preset of Arco-4T, for output 3 the preset of Q-10 etc.

The unit includes an OLED display (1.54”) with control knobs for intuitive and easy navigation as well meters to monitor signal levels. Basic parameters can be accessible via front panel control knobs; input and output levels, global preset recall, output channel preset recall, mute, source selection, link manager functions, priority enabling etc.

Two of the analogue inputs can be switched to microphone with 12V Phantom power if needed.
The unit also Integrates an Ethernet Switch for daisy-chain connections. No external switch is needed.
WiFi and Bluetooth are available for direct wireless operation.


Electronics and Audio
Frequency Response 20 Hz-30 kHz (+0 -0.5 dB)
Max Input Level +22 dBu
Max. Output Level +22 dBu
Controls Power On/Off, Navigation Knobs
Phantom Power + 12V DC
Sampling Rate 48 kHz
Display OLED 1.54″
Cooling Side-Right-to-Left
LED Indicators On, Comms, Signal, Protect
Connectors
Analog Audio Input Connectors Euroblock 5mm
Analog Audio Output Connectors Euroblock 5mm
DANTE Digital In/Out Connectors 2 x RJ45 Fast Ethernet
Power
AC Input Connector IEC 15A
Power Supply Universal Mains Switch Mode
Operating Range 90 – 250 VAC
DSP
Analog Input Channels 4
Analog Output Channels 8
DANTE Input Channels 4
DANTE Output Channels 4
AD Converters 24 Bit @ 48 kHz 125 dBA Dynamic Range
DA Converters 24 Bit @ 48 kHz 125 dBA Dynamic Range
Internal Precision 32 Bit Floating Point
Latency 1 ms
Delay 120 ms per output
Equalizer Bell, Lo/Hi-Shelving, Hos
Crossover Linkwitz-Realy, Butterworth
High and Low Pass Filters Up to 48 dB/oct
Limiters RMS, Peak
Dimensions-Weight
Dimensions ( H x W x D ) 380 x 360 x 48 mm
14,9 x 14,2 x 1,9 in
Net Weight 6,2 kg ( 13,7 lb )
