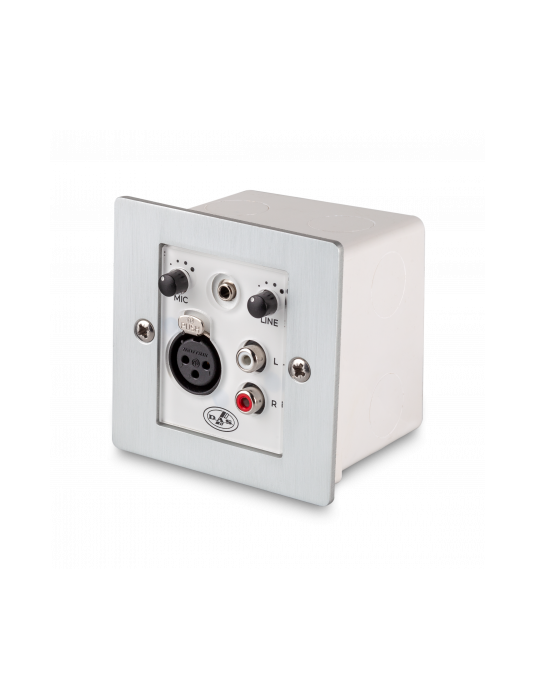

INTEGRAL-WPM1 is a 2-channel wall-panel format audio mixer. It includes one balanced XLR microphone input (Phantom 12V can be activated with internal jumper) and one unbalanced Stereo Line input (2 x RCA or 1×1/8” jack). Each channel (mic and line) has its own independent level control.
The microphone´s signal can be prioritized over the line signal by engaging the talk-over functionality (internal jumper). It allows mixing these two signals getting a balanced mono output that can be sent to Matrix amplifiers, matrix or amplifiers.
| Electronics | ||||||
| Input Sensitivity / Impedance | Line: -10 dBV / 10 kohms | |||||
| MIC: -40 or -20 dBV / >1 kohm | ||||||
| Output Level / Minimum Load | 0dBV / 600 ohm (max. + 17 dBV) | |||||
| Frequency Response | Line: 20 Hz – 20 kHz / MIC: 120 Hz – 20 kHz | |||||
| Total Harmonic Distortion | Line: < 0.005 % / MIC: < 0.01 % | |||||
| Signal to Noise Ratio | Line: >105 dB / MIC: > 90 dB | |||||
| Talk-Over | -30dB / 2s | |||||
| Phantom Voltage | 12 Vdc | |||||
| External Power Supply | 12-24 Vdc | |||||
| Taps | ||||||
| Power Consumption | 25 mA | |||||
| Dimensions-Weight | ||||||
| Dimensions ( H x W x D ) | 86 x 86 x 52 mm | |||||
| 3,4 x 3,4 x 2,0 in | ||||||
| Net Weight | 0,3 kg ( 0,1 lb ) | |||||
