JTS Large Diaphragm Studio Microphone c/w Power Supply

JS-1 TUBE + PS-9

JTS

Whatsapp for enquiry Email for enquiry

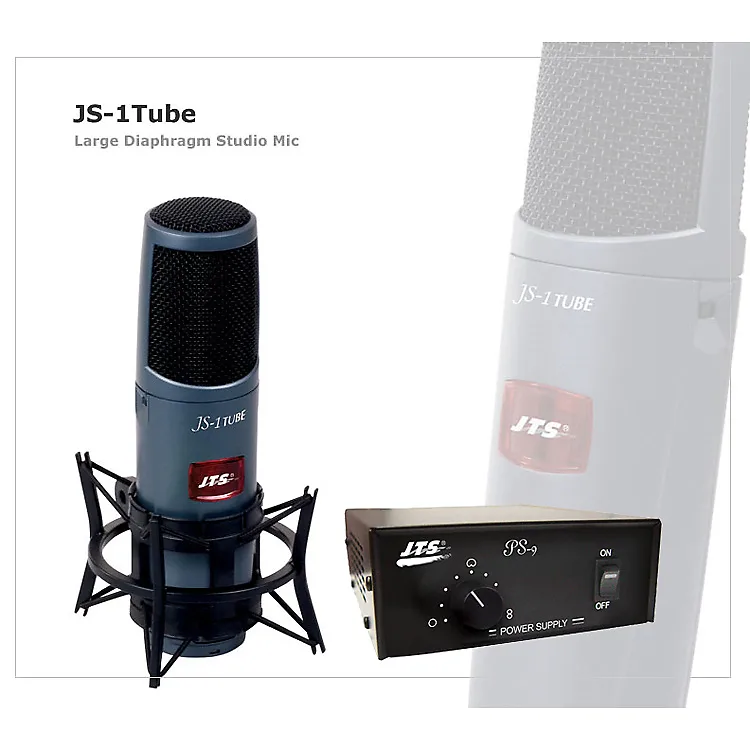

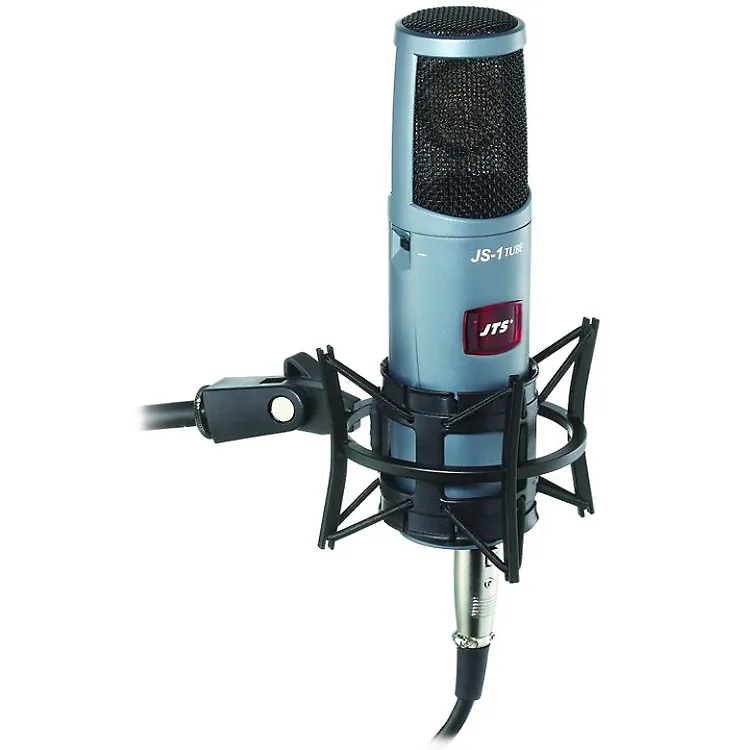

The JTS JS-1Tube is a large-diaphragm vacuum tube studio microphone designed for use in the most demanding applications. 9 switchable polar patterns for placement and application fl exibility. Smooth “tube” sound adds warmth and life to digital recordings. A specially contoured 1” super thin 24K gold plated diaphragm provides superb reproduction of high sound pressure level signals at all frequencies. A switchable 10dB pad is built-in to increase the SPL capabilities. It’s precise resolution and ability to handle high sound-pressure levels makes it an excellent all purpose microphone. Comes complete with power supply, metal spider-type shock mount, windscreen..

Applications :

• Studio Vocal Recording
• Live Recording
• Live Bluegrass Performance
• Acoustic Guitar/Bass
• Studio Instrument Recording
• Broadcasting


• Type: Large Diaphragm Condenser Mic
• Frequency Response: 20~20,000 Hz
• Polar Pattern: 9 switchable patterns including - from Omni, to Cardioid to Figure 8
• Sensitivity(at 1000Hz): -38 dB* (12.6mV) 0dB=1V /Pa
• Phantom Power: required
• Impedance: 200 ohm

• Max. SPL For 1% THD: 132 dB

• Signal To Noise Ratio: 78dB

• Current Consumption: 1mA

• Feature: 10db Attenuation switch

• Feature: 80Hz Roll-off
• Output: 7 pin XLR to included PS-9 Power Supply to 3Pin XLR
• Net Weight 700 grams(24.7 oz)

• Dimensions(mm) 56mm(W)* 207mm(H)
