JTS Large Diaphragm Studio Microphone

JS-1

JTS

Whatsapp for enquiry Email for enquiry

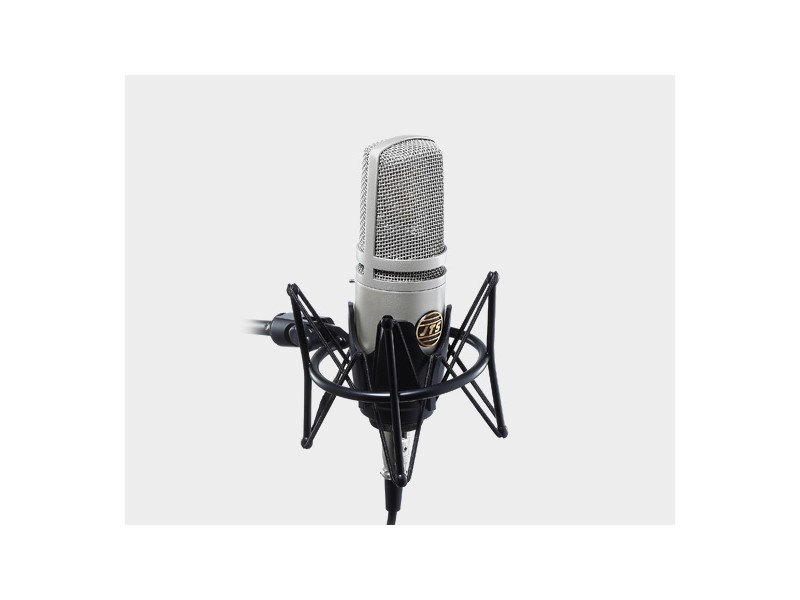

The JTS JS-1 is a studio microphone designed for use in the most demanding applications. A specially contoured 1” super thin 24K gold plated diaphragm provides superb reproduction of high sound pressure level signals at all frequencies. A switchable 10dB pad is built-in to increase the SPL capabilities. It’s precise resolution and ability to handle high sound-pressure levels makes it an excellent all-purpose microphone. Included with the JS-1 a versatile shock-mount with standard 5/8”-27 threads.


JS-1
Type Large Diaphragm Condenser Mic
Frequency Response 20~20,000 Hz
Sensitivity(at 1000Hz) -38 dB* (12.6mV)  0dB=1V /Pa
Directional Pattern Cardioid
Attenuation Switch 10dB
Low Frequency Roll-off 80Hz
Impedance 200 Ω
Max. SPL For 1% T.H.D. 132 dB
Signal To Noise Ratio 78dB
Power Supply 36-52 VDC phantom power
Current Consumption ≤1mA
Output 3Pin XLR (M) (power module)
Net Weight 480 grams(16.9oz)
Dimensions(mm) Ø56mm(W)* 184mm(H)
