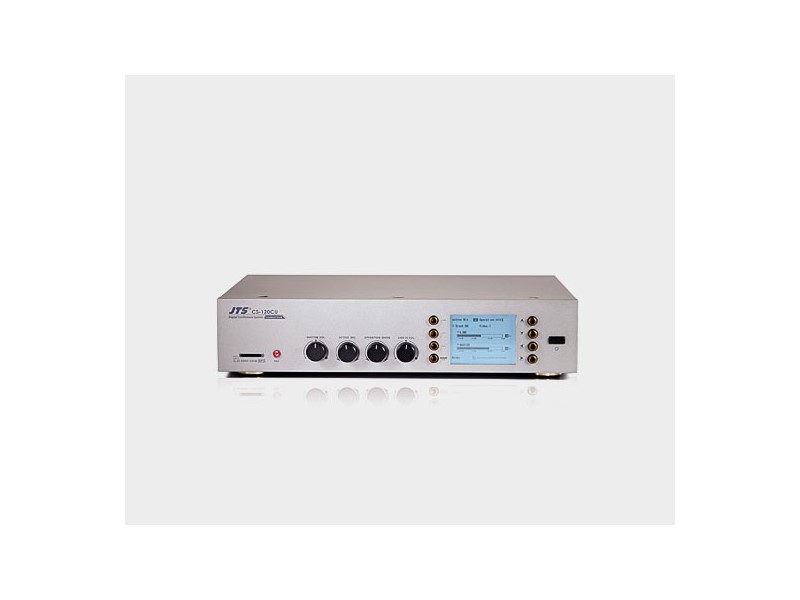

JTS CS-120 Series Control & Power Supply Unit

CS-120CU

JTS

Whatsapp for enquiry Email for enquiry






CS-120CU works as a main unit of the whole system. It provides all inputs and outputs needed to manage complex audio system. A single CS-120CU can be connected with 90 sets of CS-120CH and CS-120DU. With additional power unit CS-120EMU up to 256 sets can be connected.

This stand-alone system provides 4 types of conferencing mode, Open, Over-ride, Voice and Apply. It meets most conference requirement. Voting function is also provided. Large LCD screen provides detailed information. Soft-key design provides intuitive operation Maximum 4 video cameras can be connected to perform video tracking.


CS-120CU
Supply voltage AC110Vor AC220V (default settings)
Number of connectable conference units ≤254
Frequency response 40-16000Hz
Signal-to-noise ratio >80dBA
Dynamic range >85dB
Audio crosstalk >70dB
Total harmonic distortion <0.05%
Original input: 6.3 mm balanced
Signal strength: 0.775 V
Audio inputs Recording input: RCA type*1
Original output: RCA*2 balanced, XLR*1 balanced
Audio outputs Recording output: RCA type*1
SD card slot Support 32GB SD card in FAT format
LAN interface RJ45 , or PC control
Conference unit connector DIN7P
Maximum power
consumption
200W
