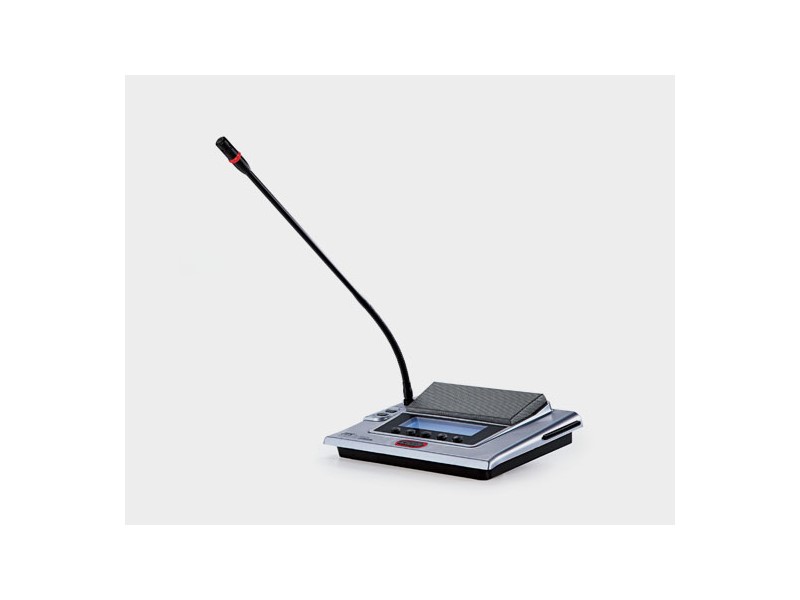

JTS CS-120 Series Chairman Unit

CS-120CH

JTS

Whatsapp for enquiry Email for enquiry






The CS-120CH has extra functions besides those CS-120DU has. There is a priority key which can either mute or turn off all delegate units, or cancel all applying. The chairman unit has the right to accept or refuse applying. Voting function can be initiated only the chairman unit. The timing is also controlled by the chairman. Voting result shown on all units will be clear. In one installation only one CS-120CH chairman unit can be connected.


CS-120CHModel NoCS-120CH/CS-120DUOutput frequency response40-16000HzEarphone load>16 ΩEarphone volume10 mVEarphone outputφ 3.5mm stereo jackMax. power consumption1.65W (with 256 x 64LCD)

1W (without 256 x 64 LCD)connection7P-DIN dedicated cable with buckleMicrophone TypeUni-directional electret condenser microphoneSensitivity-46 dBV/PaFrequency response80-18000HzInput impedance2kΩDirectivity 0°/180°>20 dB(1kHz)Equivalent noise25 dBA (SPL)Maximum sound pressure level125 dB (THD<3%)
