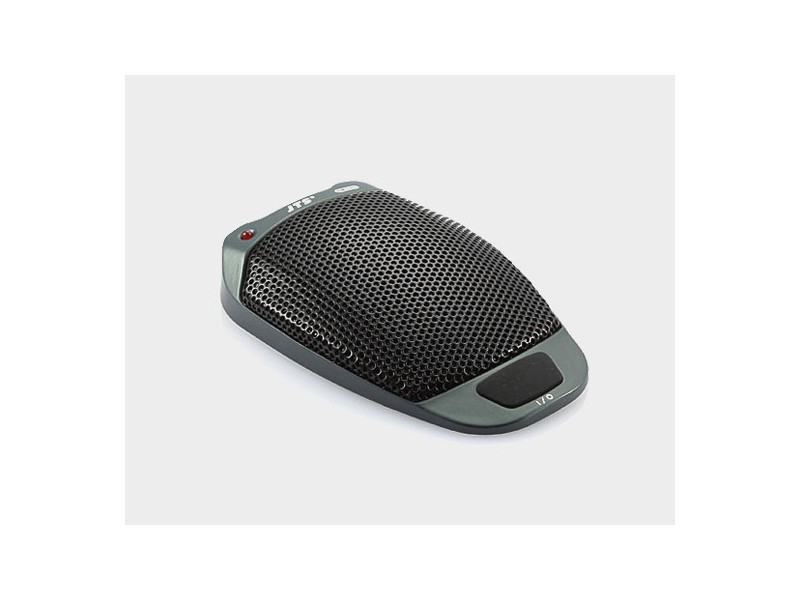

* The CM-601 is designed for conference, house of worship, and theater applications.
* The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.* The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes.
* The precisely calculated circuit plus tailored capsule response ensure transparent sound quality.
* Internal shock mount minimizes mechanical noise.
| CM601 | |
| Type | Electret Condenser |
| Frequency Response | 30~12,000 Hz |
| Sensitivity (at 1,000Hz) | -53±3 dB* (2.23mV) 0dB=1V /μbar |
| Directional Pattern | Half-Cardioid |
| Impedance | 100Ω |
| Max. SPL for 1% THD | 125 dB |
| Signal-To-Noise Ratio | 67dB |
| Power Supply | 12-52 VDC phantom power |
| Current Consumption | ≤6mA |
| Output Connector | 3P Mini XLR-M type(power module) |
| Net Weight | 88 grams |
| Low Frequency Roll-off | 80Hz , 120Hz |
| Switches | Push control: on/off
Function selection:push on/off, momentaryon/off Low cut : low frequency roll-off |
